AERMEC FCX - DIMENSIONS; FCX - A, ACB, ACT, AS DIMENSIONS; FCX - U DIMENSIONS

54
English
A
B
C
A
B
D
C
100
50
100
50
FCX - A - ACB - ACT - AS
FCX - U
Mod. 17 - 22 - 32 - 42 - 50
Mod. 62 - 82 - 102
Mod. FCX 17 FCX 22 FCX 32 FCX 42 FCX 50 FCX 62 FCX 82 FCX 102
A 563 563 563 563 563 688 688 688
B 640 750 980 1200 1200 1320 1320 1320
C 220 220 220 220 220 220 220 220
D 105 105 105 105 105 125 125 125
Peso * [kg] 13 15 20 24 24 34 34 34
Mod. FCX 17 FCX 22 FCX 32 FCX 42 FCX 50 FCX 62 FCX 82 FCX 102
A 520 520 520 520 520 590 590 590
B 640 750 980 1200 1200 1320 1320 1320
C 220 220 220 220 220 220 220 220
Weight [kg] 13 15 20 24 24 34 34 34
* Fan coil weight without feet
167 mm
65 mm
49 mm
100
50
50

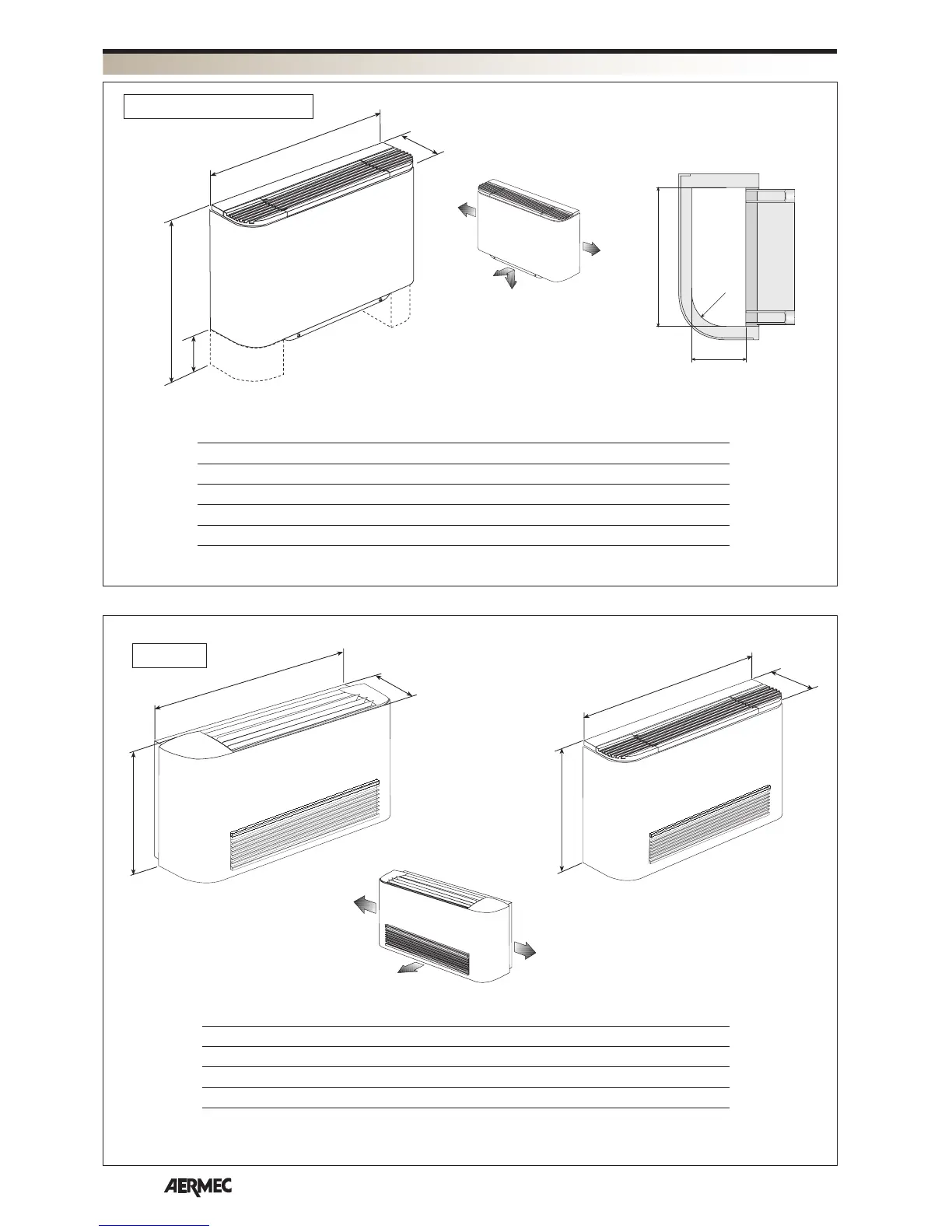

DIMENSIONS [mm]
A
B
C
