3 AND 4- ROW COILS
41
404
142
194
153
88
260
Øe 17,5
IN
OUT
41
526
148
194
170
108
273
Øe 17,5
IN
OUT
FCX 17 ÷ 50
24 ÷ 54
FCX 62 ÷ 102
64 ÷ 84
For FCX - U versions do not consider the foot

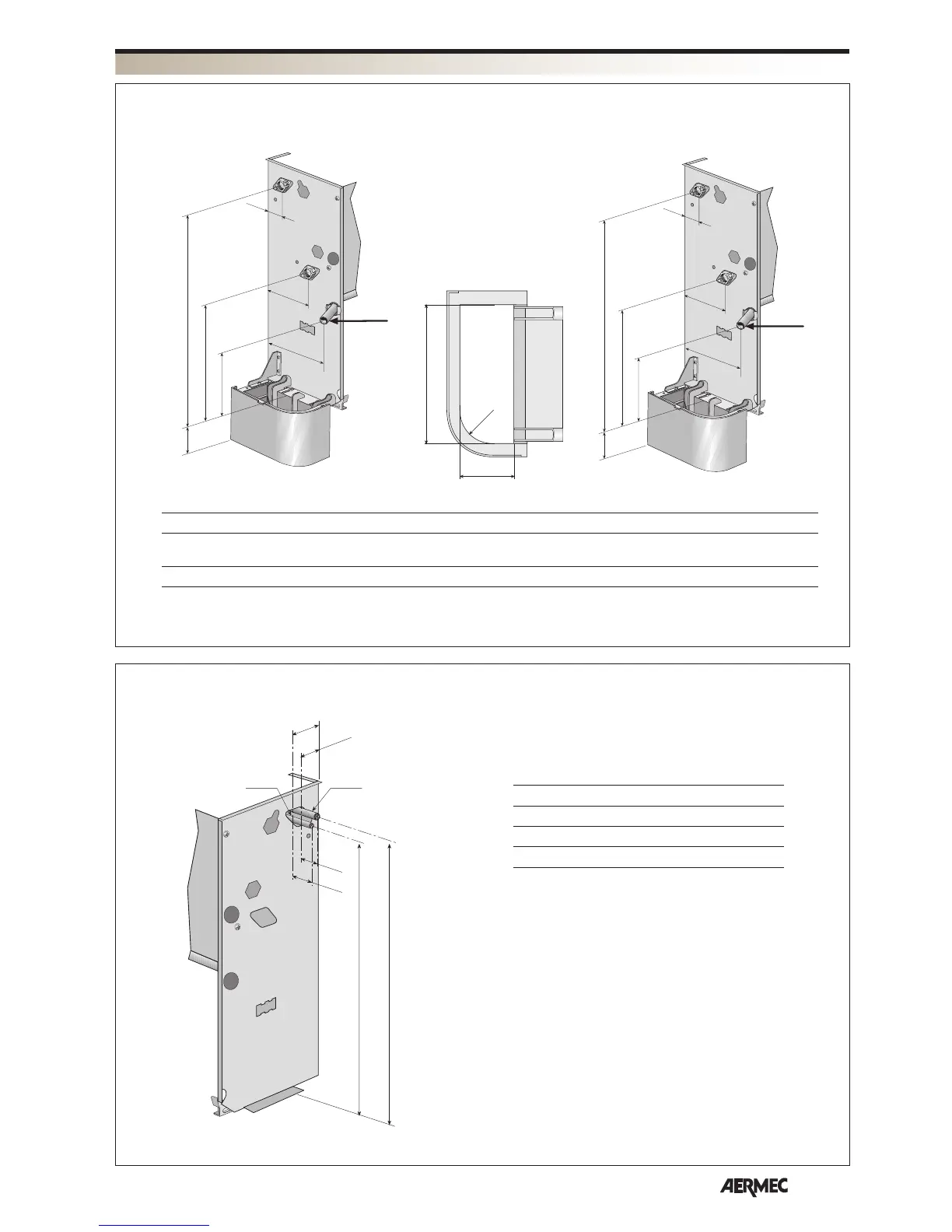

DIRECT EXPANSION COIL
DIMENSIONS [mm]
Mod. FCX 22÷50 FCX 62-102
A 400 522
B 408 530
Ø 1 9,52 9,52
Ø 2 12 16
Cooling connections on all FCX models fitted with
direct expansion coil (FCX - UE, FCX - PE) are located
on the right side of the unit; the control panel must
therefore be positioned on the left side. The coil can-
not be rotated on these models..
Mod. FCX 17 FCX 22 FCX 32 FCX 42 FCX 50 FCX 62 FCX 82 FCX 102
Coil connections (female)
1/2” 1/2” 1/2” 3/4” 3/4” 3/4” 3/4” 3/4”
Mod. FCX 24 FCX 34 FCX 44 FCX 54 FCX 64 FCX 84
Coil connections (female) 3/4” 3/4” 3/4” 3/4” 3/4” 3/4”
167 mm
65 mm
49 mm
DIMENSIONS [mm]
