22
Aermec cod. INRLLSIY 13_01. 4086991_00
NRL 800 - 1800
GB

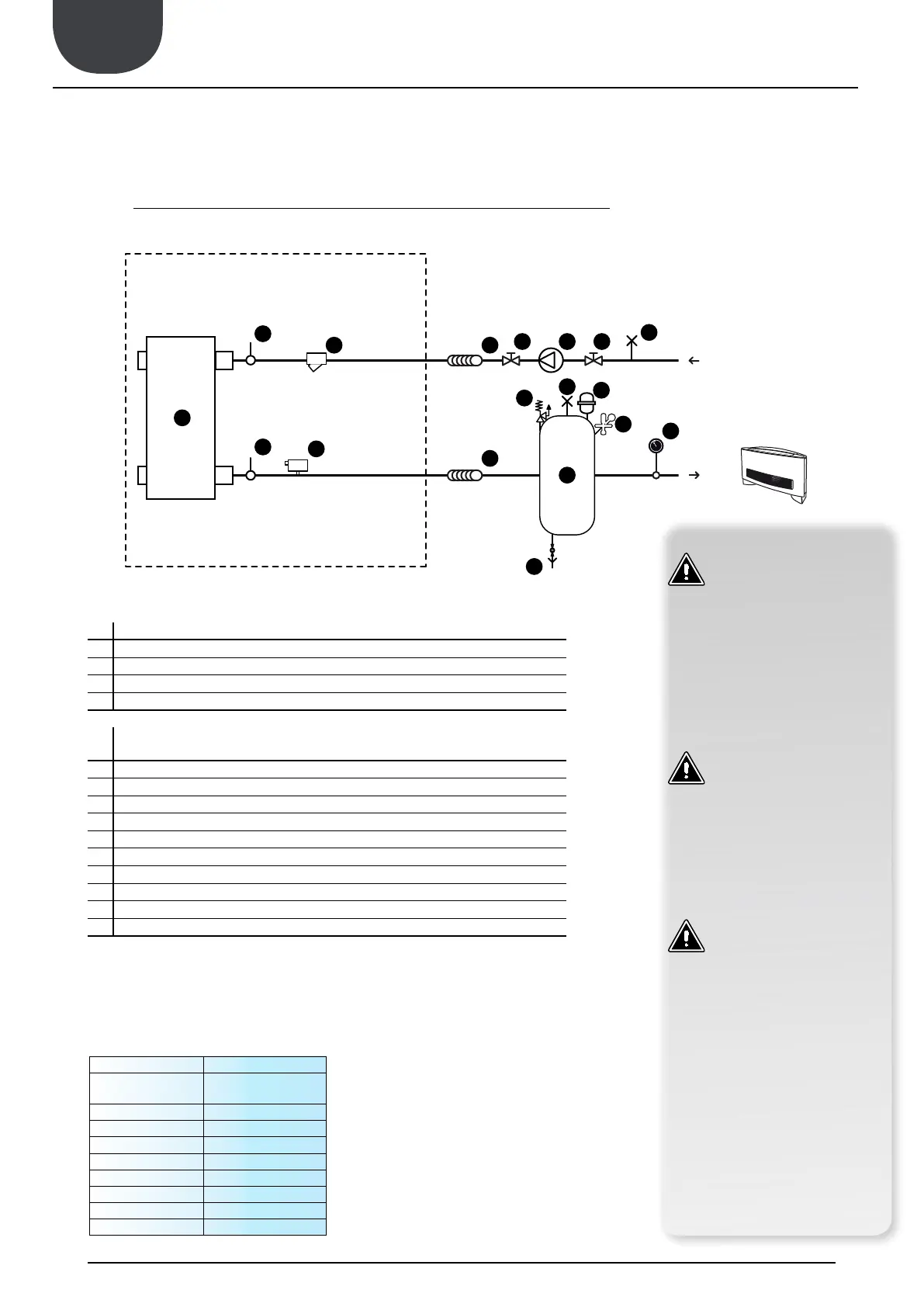

10. HYDRAULIC CIRCUIT
10.1.
ATTENTION
The choice and the installation
of components external to
the NRL up to the installer,
who must operate according
to the rules of good technical
design and in compliance with
the regulations in force in the
country of destination.
ATTENTION
The hydraulic pipes connecting
to the machine must be pro-
perly sized to the actual flow of
water required by the system
in operation. The water flow to
the exchanger must always be
constant.
ATTENTION
Carefully wash the plant, be-
fore connecting the unit. This
allows cleaning to remove any
residue such as weld spatter,
slag, rust or other impurities
from the pipes. These substan-
ces may otherwise accumulate
in and cause a machine mal-
function. The connecting pipes
should be supported so as not
to weigh, with their weight on
the unit.
THE DRAWINGS ARE ONLY
EXAMPLES OF THE HYDRAULIC
CIRCUIT.
STANDARD COMPONENT
1 Exchanger plate (SYSTEM SIDE)
2 Water filter (supplied)
3 Flow switch (supplied)
4
RECOMMENDED COMPONENTS NOT SUPPLIED
6 Air Vent
7 Anti-vibration couplings
8
Pump
Storage tank
10 Expansion tank
11 Safety valve
12 Ball stop Tank
13 Charging unit
14 Ball Stop
15 Manometer
1
2
3
4
4
6
7
8
14
14
7
6
15
9
10
13
12
11
VERSIONE “00”
FORNITO DI SERIE:
1. scambiatore
2. ltro acqua
3. ussostato
4. sonde temperatura acqua (IN-OUT)
5. rubinetto di scarico
6. valvola di sato
NON FORNITO / CONSIGLIATO:
6. valvola di sato
7. giunti antivibranti
8. pompa
9. accumulo
10. vaso d’espansione
11. valvola di sicurezza (bar..?)
12. scarico accumulo
13. gruppo di caricamento
14. valvola d’intercettazione
15. manometro
HYDRAULIC COMPONENTS
NRL
EXTERNAL UNIT HYDRAULIC
RECOMMENDED COMPONENT
PH 6-8
Electric
conductivity
Chloride ions less than 50 ppm
Sulphuric acid ions less than 50 ppm
Total iron less than 0.3 ppm
Alkalinity M less than 50 ppm
Total hardness less than 50 ppm
Sulphur ions none
ammonia ions none
Silicone ions less than 30 ppm
