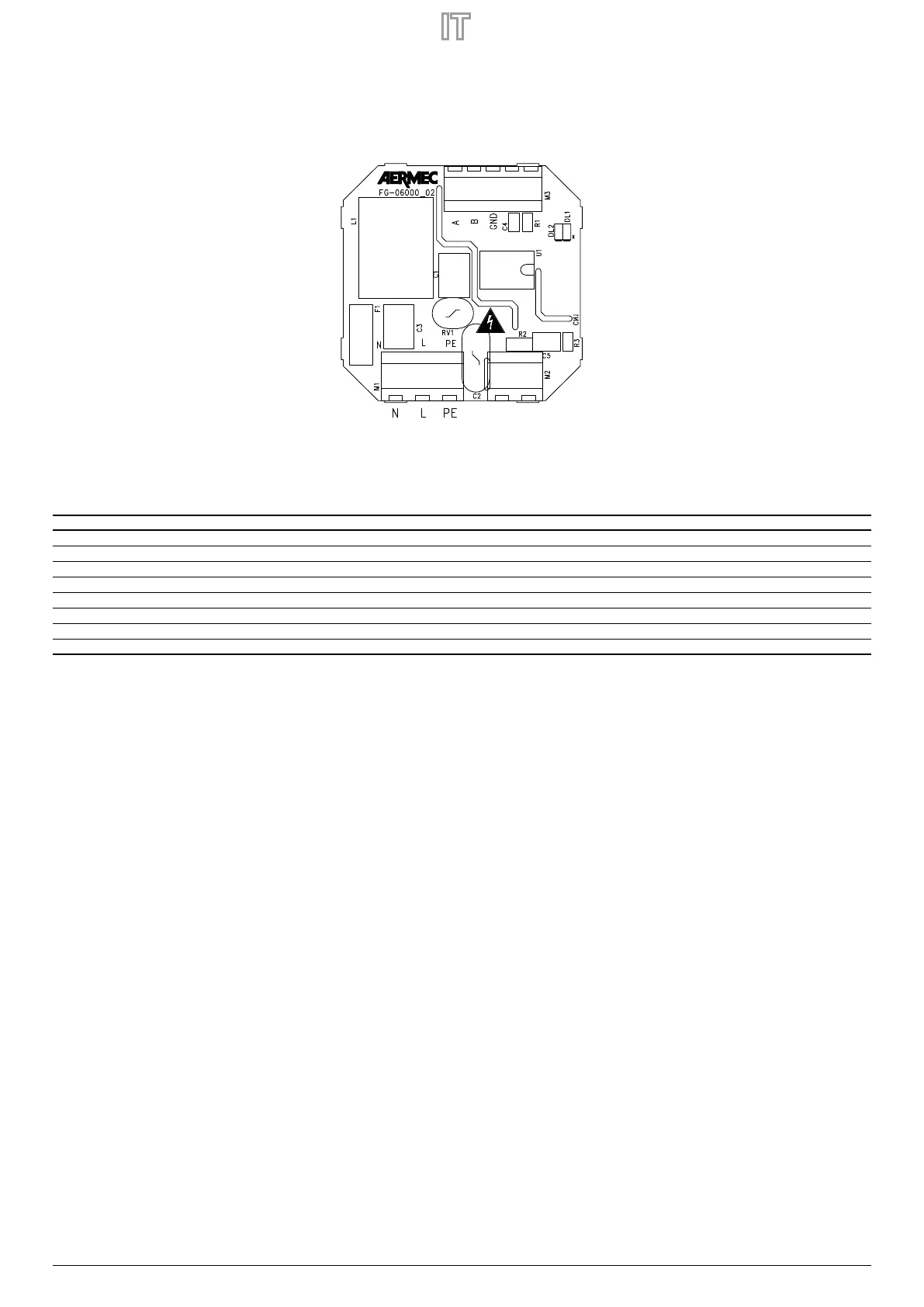

22/10 – 5905355_00 11
8 CARATTERISTICHE ELETTRICHE
NOT USED
NOT USED
OUTPUT TRIAC
OUTPUT TRIAC
GND
A (T+) RS485
B (T-) RS485
C1 C0
I/O Funzione Caratteristiche elettriche
M1_1 Morsetto di alimentazione L/AC1 Vin: 230 Vac, 50/60 Hz, Imax: 1 A
M1_2 Morsetto di alimentazione N/AC2 Vin: 230 Vac, 50/60 Hz, Imax: 1 A
M1_3 Morsetto per riferimento di terra PE
M2_1 Morsetto uscita triac per controllo carichi Vin: 230 Vac, 50/60 Hz, Imax: 1 A
M2_2 Morsetto uscita triac per controllo carichi Vin: 230 Vac, 50/60 Hz, Imax: 1 A
M3_1 Morsetto seriale Uart RS485 A (T+) V max −9 [V] ÷ +14 [V]
M3_2 Morsetto seriale Uart RS485 B (T-) V max −9 [V] ÷ +14 [V]
M3_3 Morsetto seriale Uart RS485/TTL Slave GND
