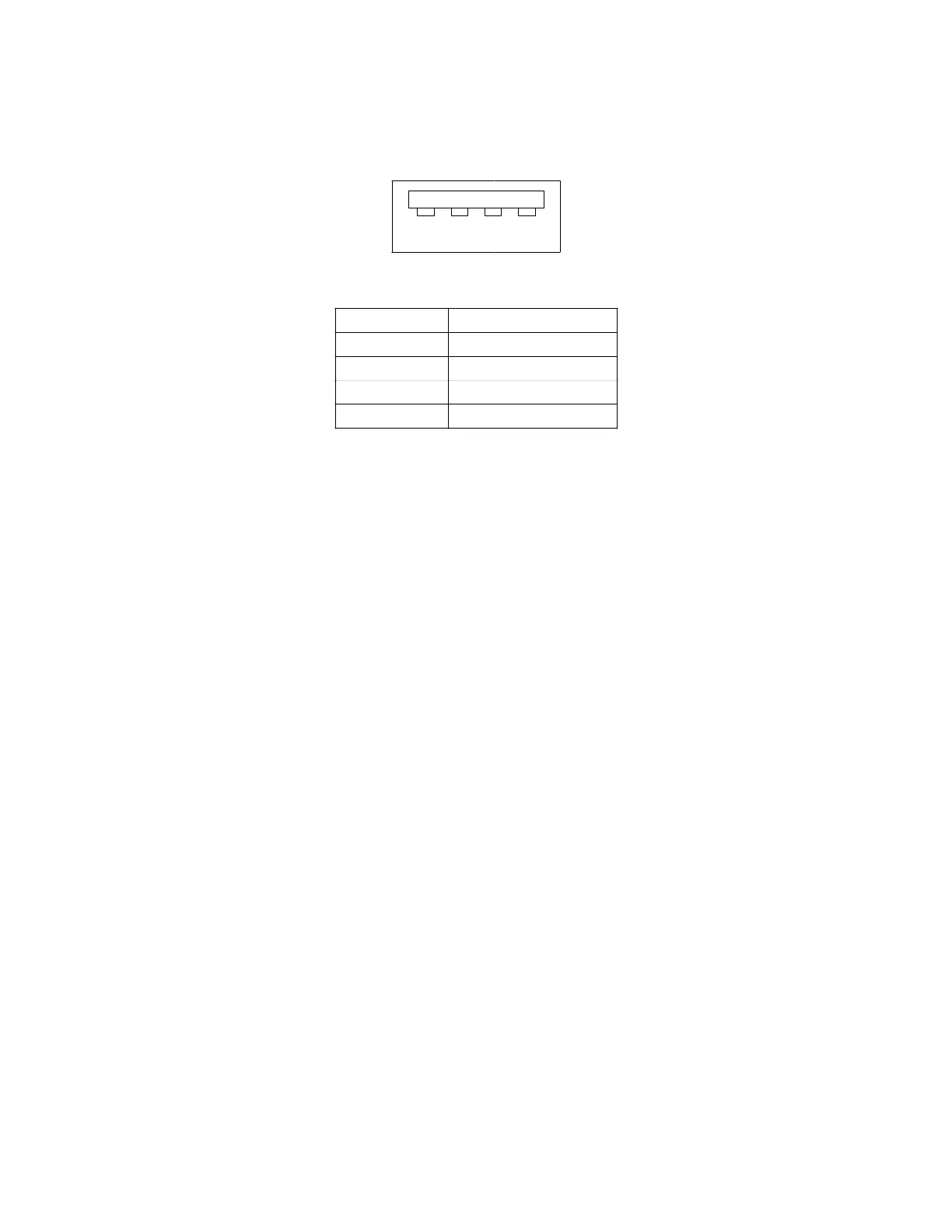

B-5. COMM BREAKOUT BOX - USB HOST CONNECTOR PIN-OUT TABLE
14
PIN NO. SIGNAL NAME
1GND
2 VBUS_DN1
3H_D-
4H-D+
Table B-7. Comm Breakout Box - USB HOST Connector Pin-Out Table
