Aeroflex 3500A - Page 165

A1J7
A1J2
A1J14
J5
J4
J4
J2
J1
J3

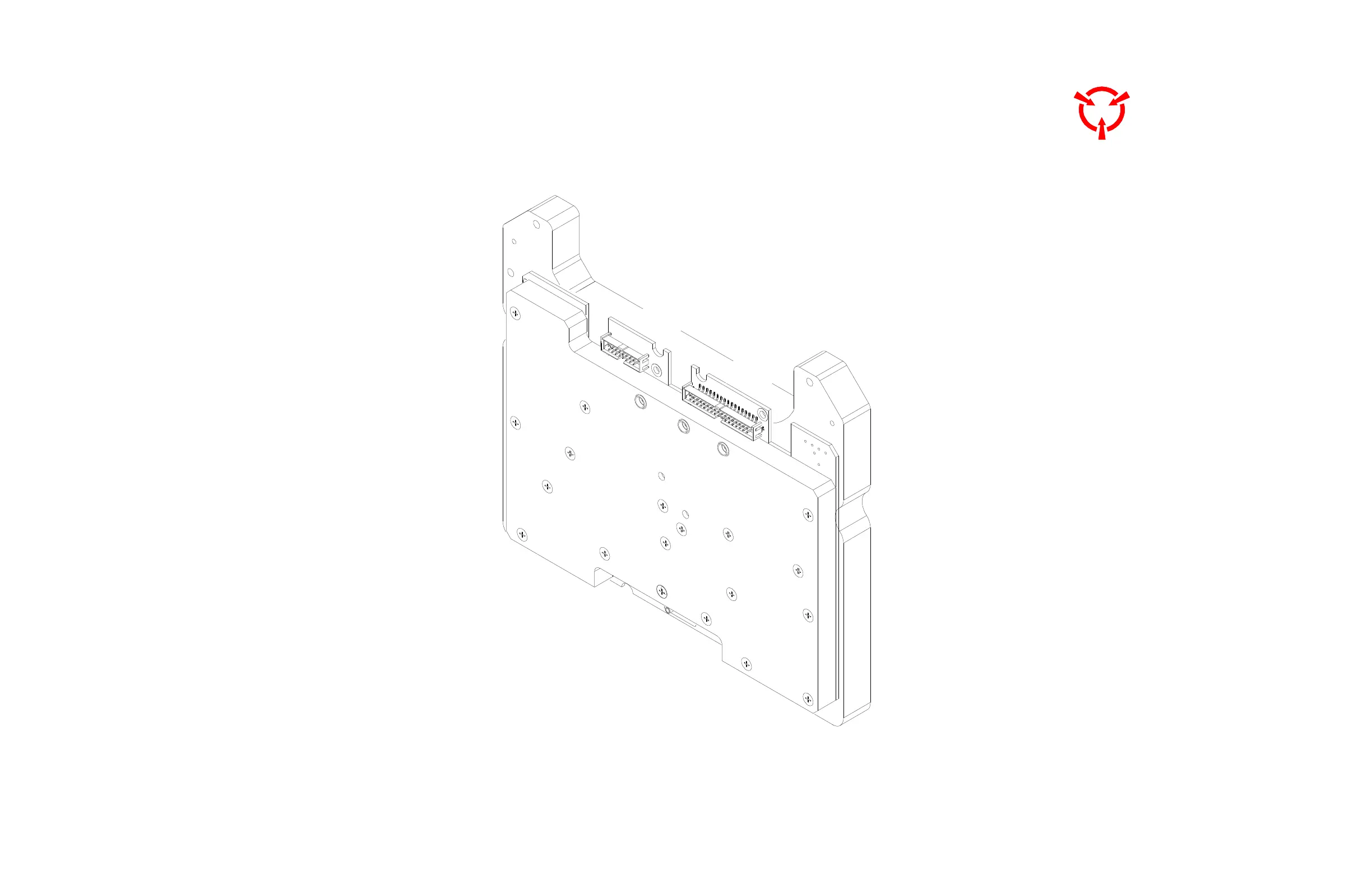

Figure E-10. RF Assy
(62A1A3)
(64597) (7005-6242-700) (3500) (3500A)
(64601-A0) (7005-6243-600) (3500A)
Subject to Export Control, see Cover Page for details. E-17
CAUTION:
CONTAINS PARTS AND ASSEMBLIES
SUSCEPTIBLE TO DAMAGE BY
ELECTROSTATIC DISCHARGE (ESD).
