AES 7788 Series RF Subscriber Unit ─ Installation and Operation Manual
AES Corporation 10 40-7788, Rev 6, August 30, 2016
1.9 UHF Antenna Options:
(450-480 MHz; contact factory for other frequencies)
2.5 db Case Top Flex Tamper Resistant
(1 & 2)
3 db Stealth (Not shown below)
(3)
3 db Standard Gain
(4 & 5)
6 db Rugged High Gain
(4)
7 db Rugged Higher Gain
(4)
9 db Central Station High Gain
(4)
1. These alternate antennas may be used with the 7788F Fire Subscriber unit.
2. Included standard Tamper Resistant antenna, mounts on Alarm Unit’s enclosure.
Includes cable.
3. Mounts in attics, vents, walls, behind drapes, etc. Includes 10-foot cable.
4. Requires cable (See Section 1.10). Usually requires user supplied mounting hardware
such as a pole with mounting brackets/hardware.
5. Antenna is intended for outdoor use, supplied mount is intended for indoor use as coax
connection is exposed. To use outdoors, connection must be sealed with a suitable
product such as a self-fusing tape to protect against moisture.
The antenna must be installed in accordance with National Electric Code and local electric
code. A surge protector, AES P/N 7230 or (52-0054), must be installed in line with any type
of remotely installed antenna. Refer to remote antenna diagram in Section 3.3 for installation
details.

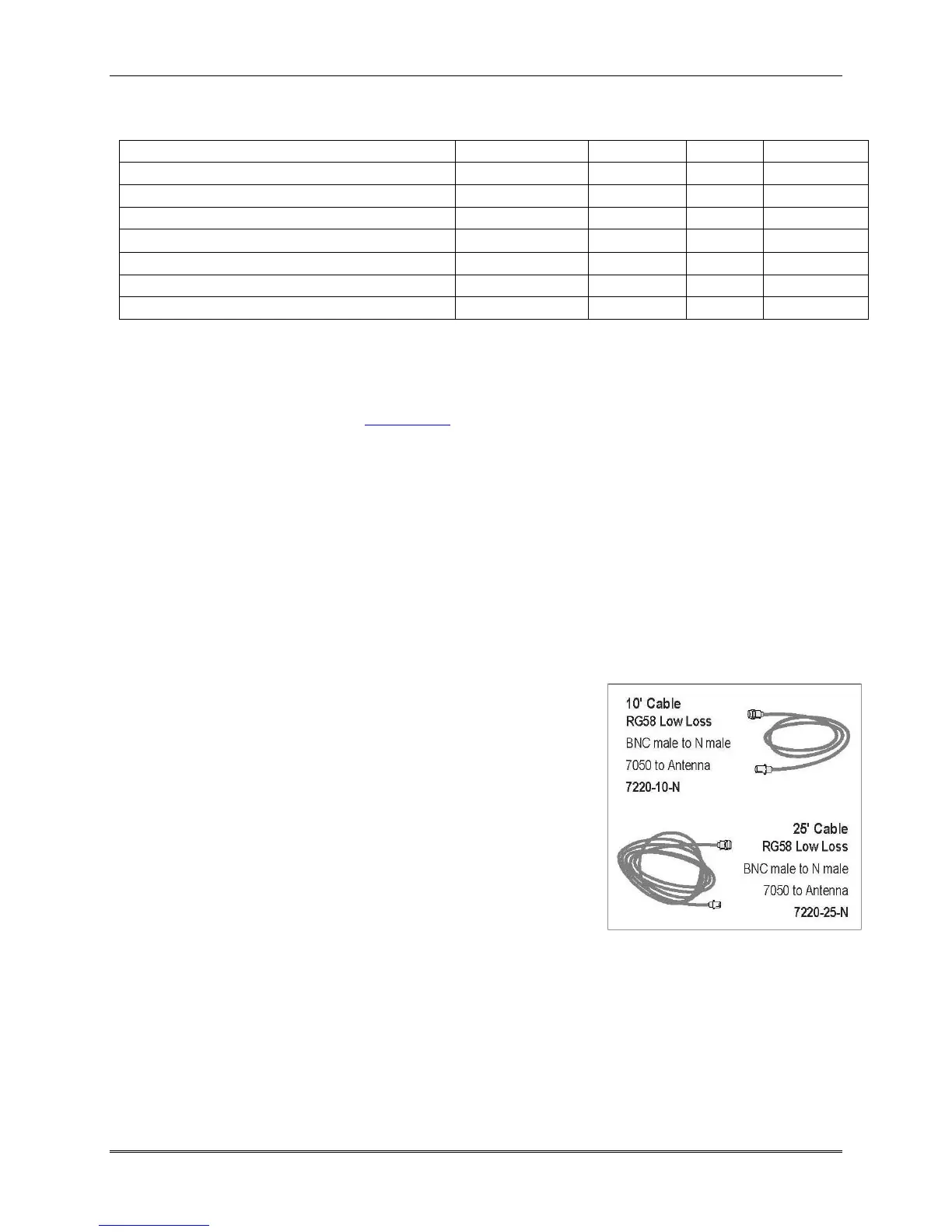

1.10 Coaxial Cable Options
CABLES w/CONNECTORS, BNC ↔ N, for all AES Subscriber Units, high
performance, low loss cables for all -UM, -UC
and -US antennas above.
● 10 Ft RG-58 Cable, P/N 7220-10-N
● 25 Ft RG-58 Cable, P/N 7220-25-N
● BNC Plug/connector (male) crimp style for
RG-58 Coax, P/N 12-0102
● 100 Ft. RG-8 W/1 N male (on spool),
P/N 13-0345-100 - this coax is available for longer
runs, cut to length and installer terminated.
● Loose connectors required to complete RG-8
assembly, P/N 12-0101
● Crimp tool required for 12-0101, P/N 7244
● Cable Assembly; 18” RG-58 (N female, bulkhead ↔ BNC male) Used to connect
RG-8 with N male to Enclosure body, P/N 13-0346
