Appendix A Internal Gain Jumper Settings
Caution: to reduce the risk of electrical shock, do not remove any of the cover panels.
No user-serviceable parts inside. Refer all servicing to qualified service personnel only.
Changes to these settings must be completed by an authorized service technician, and the unit must have its AC
cord removed for at least 15 minutes prior to removing the top cover. Contact your dealer if these settings need
to be adjusted.

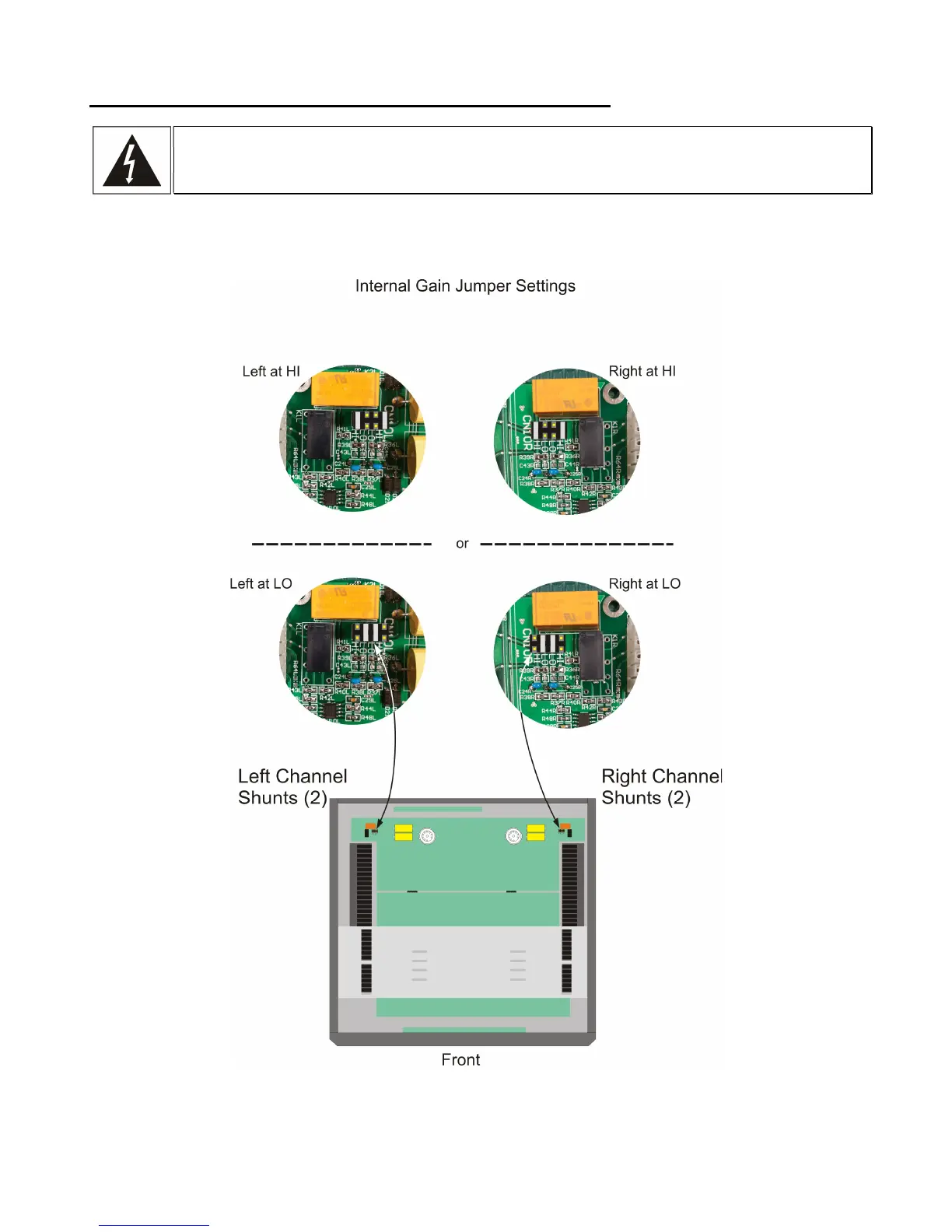

Figure 7 – Internal Gain Jumper Settings
