Wiring Diagram

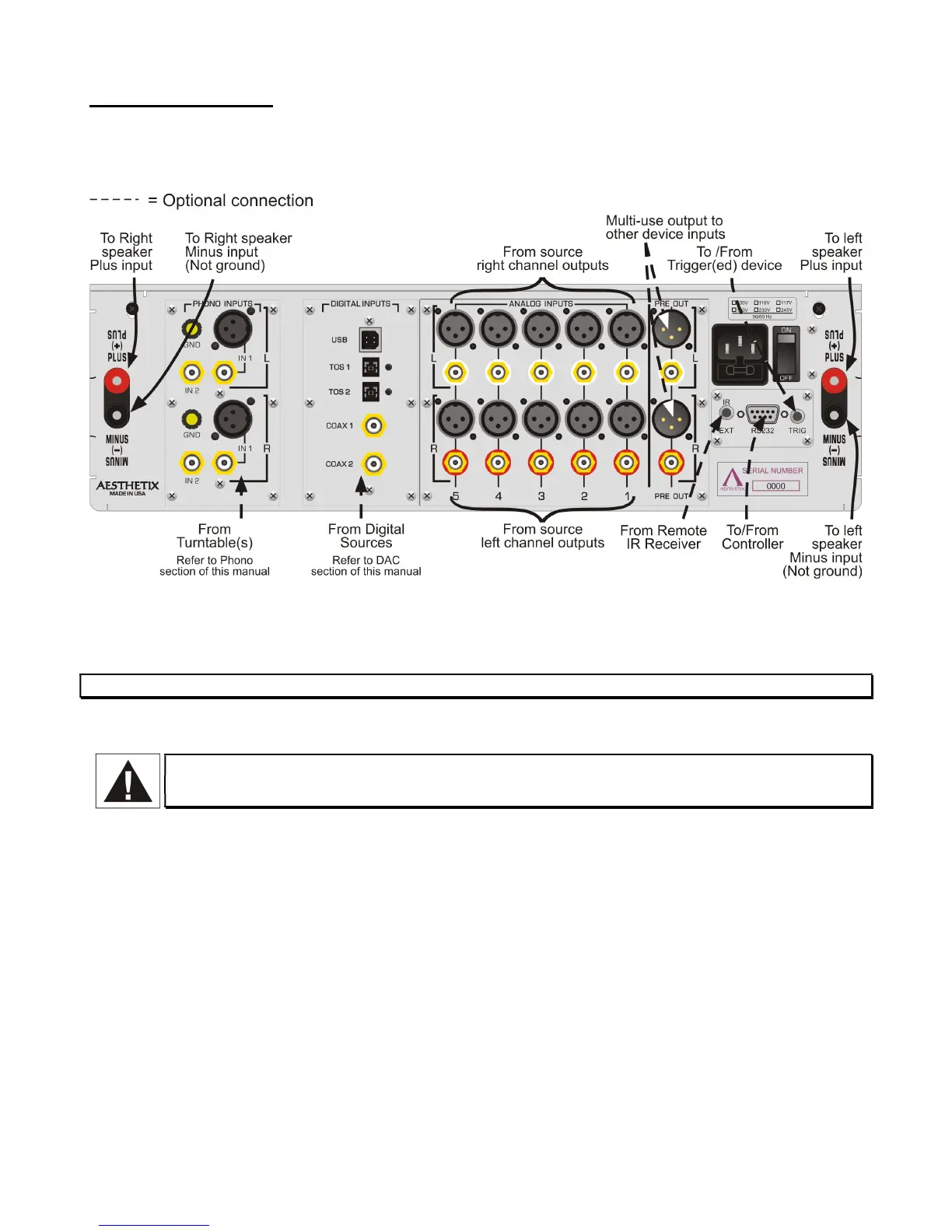

Figure 3 - Examples of Typical Input and Output Connections
CAUTION: Make all input and output connections before turning the Mimas Main Power Switch on.
WARNING! The Mimas rear panel Main Power switch MUST always be turned OFF when making or
changing speaker connections.
AC Power:
The Mimas may be plugged directly into an un-switched wall outlet. Although proprietary RFI (radio-frequency
interference) filtering is built into the Mimas, in some situations an AC power-line filter may provide additional
sonic benefits.
