Appendix C RS232 Pinout

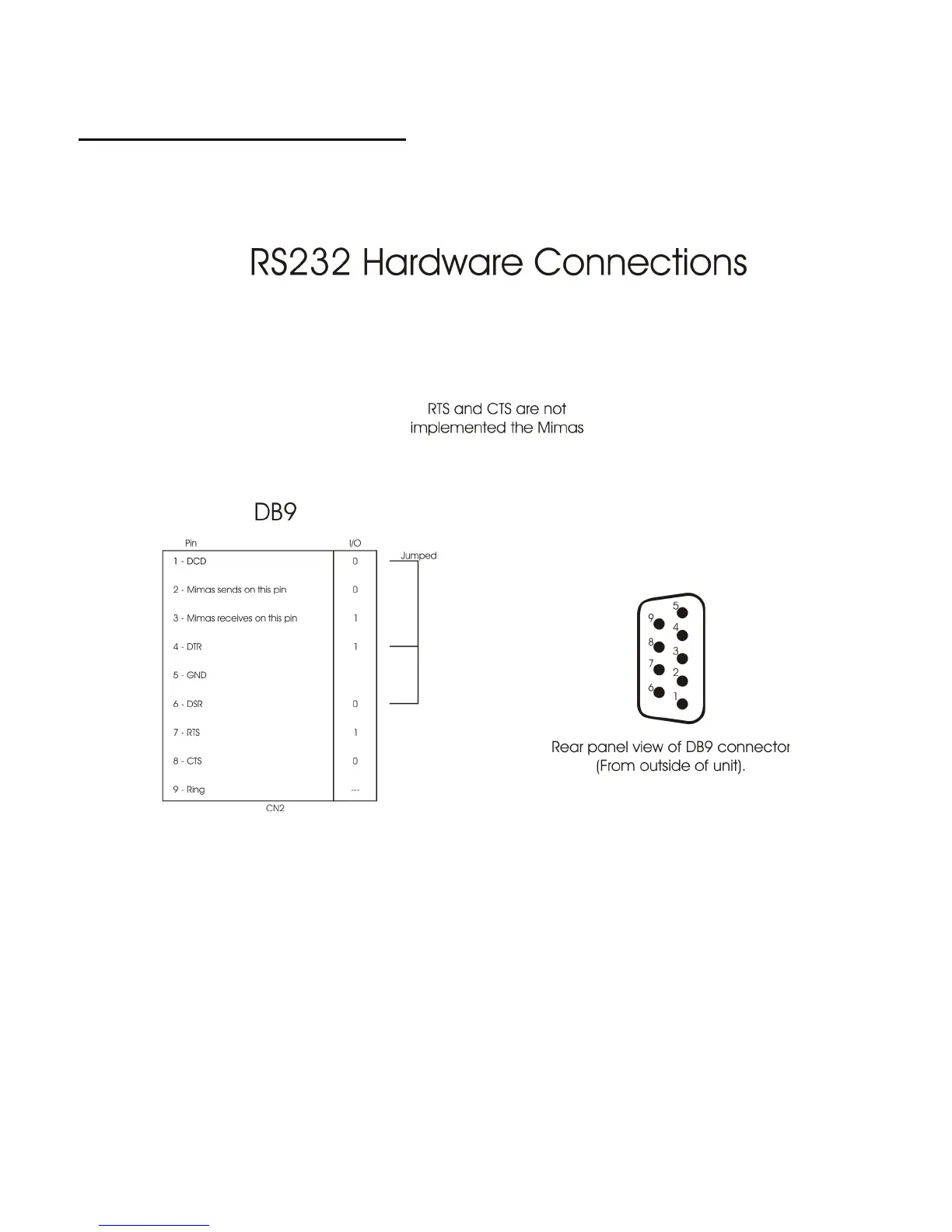

Figure 9 – Mimas RS232 Jack Pinout
These are the connector drawings only. The RS232 cable must be a regular RS232 or mouse extender cable, wired
pin for pin.
The RS 232 Protocol data is available upon request.
