14. Installation sequence and procedure
Assembly of burners
IMPORTANT: The cast iron pan supports on the appliance
are much heavier than those on most gas hotplate cookers,
therefore care must be taken when removing or re-tting
them to the hob.
It is important that they are lifted from the appliance and not
dragged across nearby enamelled parts which would result in
damaging the enamel.

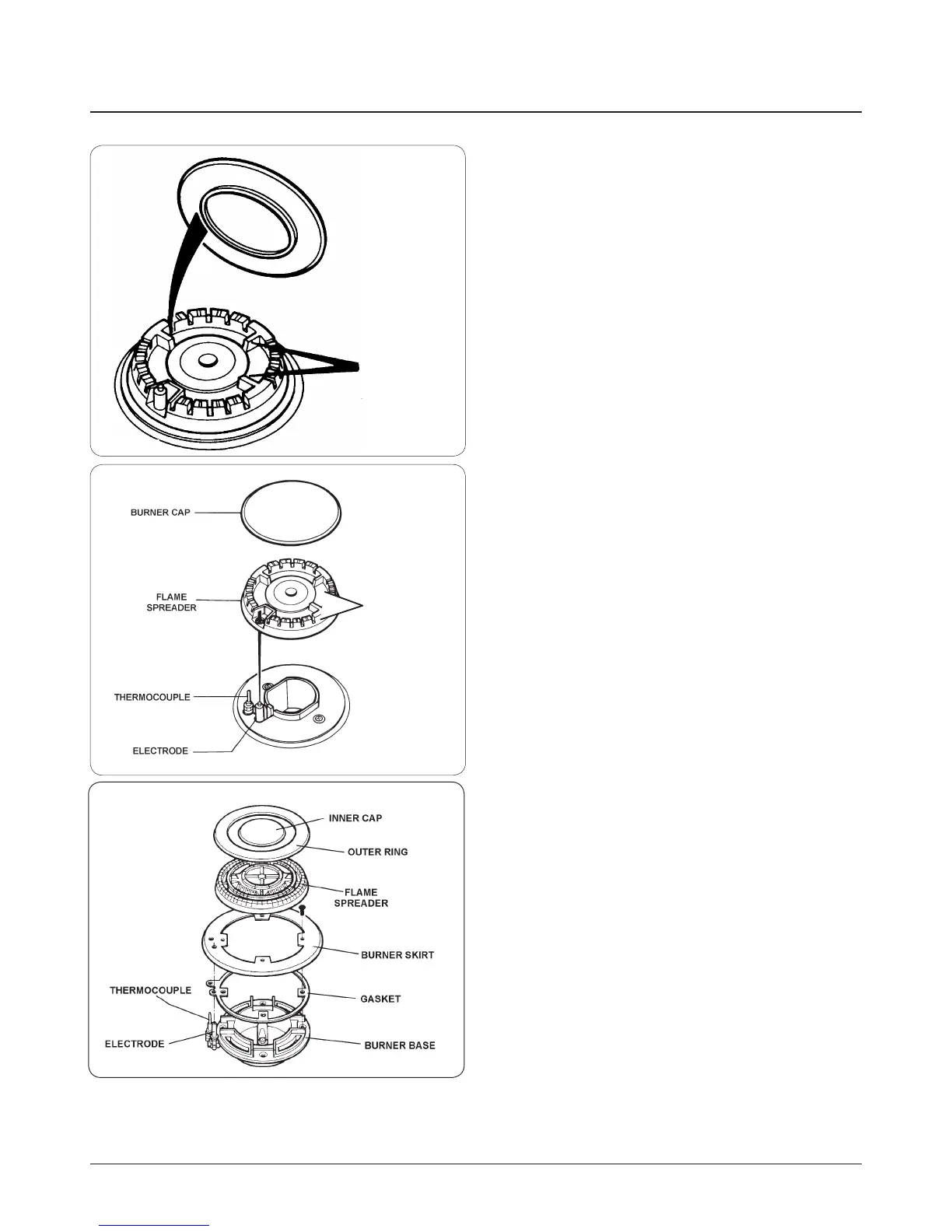

Fitting of burner cap (rapid and semi-rapid)
Place burner cap over retaining lugs, then turn cap clockwise
to lock into position (Fig. 14.1) and (Fig. 14.2).
Assembly of wok burner (Fig. 14.3)
BURNER CAP
RETAINING LUGS
BURNER CAP
RETAINING LUGS
DESN 513513
DESN 513513
Fig. 14.1
DESN 513898
Fig. 14.2
Fig. 14.3
