Cooker stability
A safety chain must be anchored rmly to the wall and cooker
to prevent the exible hose from straining, when the cooker
is withdrawn for servicing. When tting a safety chain refer to
Fig. 14.7.
Restraint where a hose assembly is used, shall have means
to limt the extent of movement of the gas appliance to no
greater than 80% of the hose assembly length.
If disconnection of the restraining chain is necessary, then
ensure restraining chain is re-attached as appliance is
relocated in its original position to avoid serious injury or
fatality.
Reassemble the burner caps (Fig. 14.2) and (Fig. 14.3), wok
burner (Fig. 14.4) and re-t the pan support
To adjust pan support level
1. Loosen retaining nut using 8mm spanner (Fig. 14.8).
2. To prevent rocking adjust the pan support foot using
2.5mm allen key.
3. Check pan support is level with opposing pan supports.
4. Retighten retaining nut.
Control knob and bezel location
1. Ensure control knobs and bezels are located onto
spindles correctly, as shown in (Fig. 14.9).
Handrail location
1. Locate handrail onto spindle, lock into position with
grub screws (located on the underside of the bracket)
(Fig. 14.9).
DESN 517192
DESN 517187

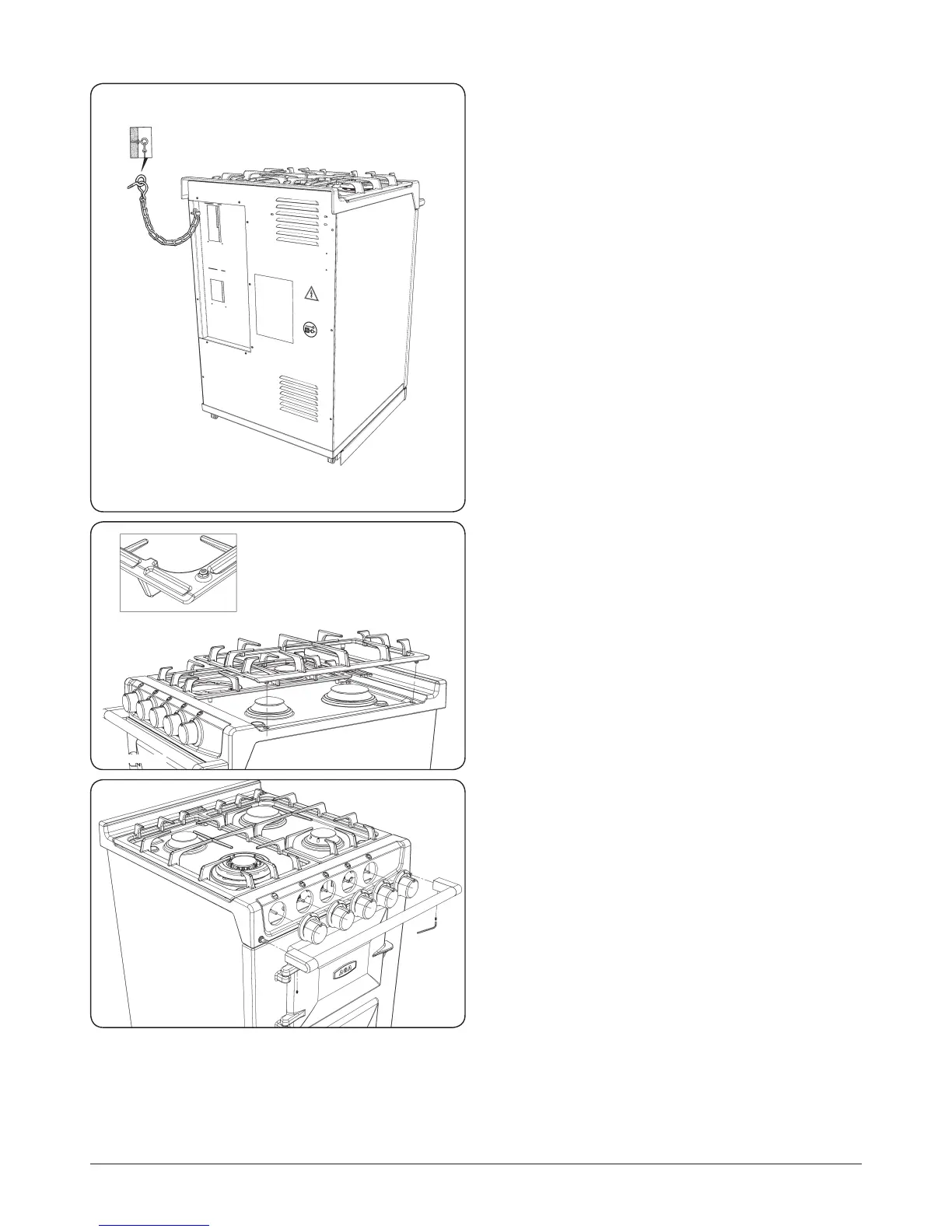

Fig. 14.7
DESN 517186
Fig. 14.8
Fig. 14.9
