22
12. Specifications

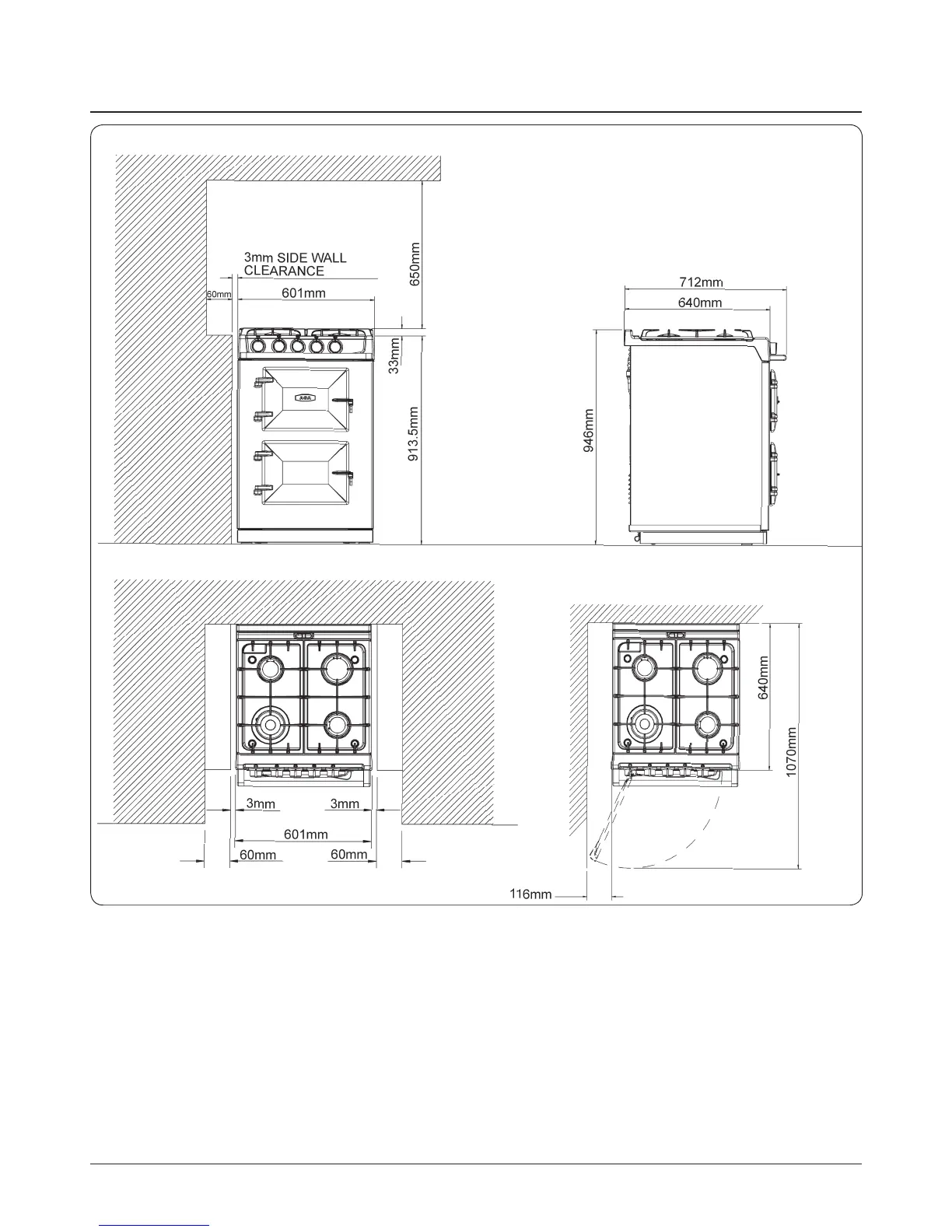

Fig. 12.1
Clearances for overhead cupboards - Fig. 12.1.
NOTE: When surveying for a appliance installation the actual clearance required for the ‘body’ of the appliance should be
increased overall by 10 mm (⁄) beyond the gures quote above. This allows safe margin to take into account the natural
dimensional variations found in major castings in particular the width across an appliance recess could be critical.
Appliance weight (Excludes packaging)
Model: AGA 60 Gas Hob 474 lbs (215 kg)
