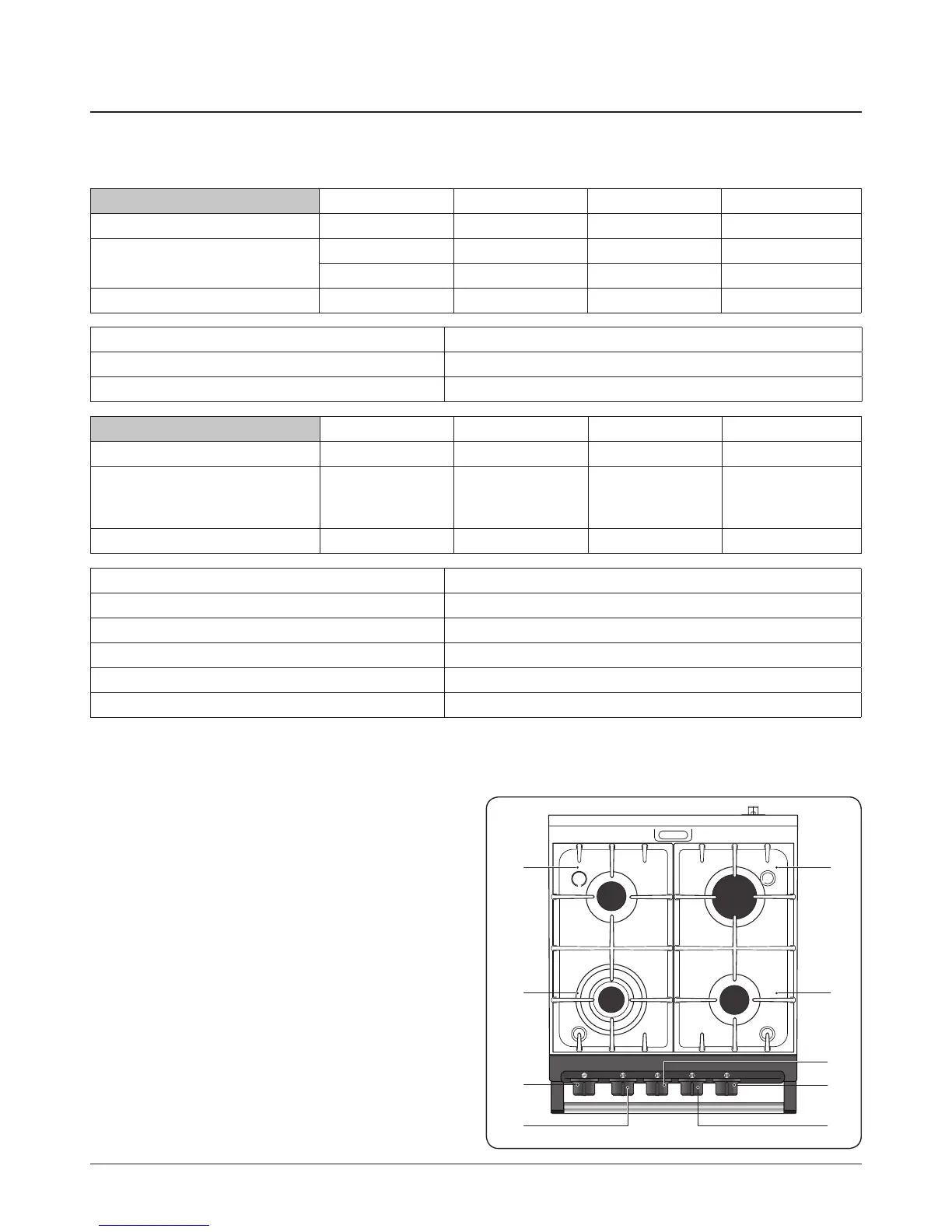

16. Technical data
This appliance is supplied set for Natural Gas (NG) at a pressure of 1 kPa (4” wg). It must be converted to run on Propane X, at a
pressure of 2.54 kPa (10” wg).
HOTPLATE - Natural Gas Left-hand Front Right-hand Rear Left-hand Rear Right-hand Front
BURNER TYPE
ULTRA-RAPID WOK RAPID SEMI - RAPID SEMI - RAPID
MAXIMUM HEAT INPUT
3.9 KW 3.5 KW 1.95 KW 1.95 KW
14.0 MJ/h 12.5 MJ/h 7.0 MJ/h 7.0 MJ/h
INJECTOR MARKING
170 155 118 118
PRESSURE POINT POSITION: Just below hotplate level on rear right-hand side of the appliance.
PRESSURE SETTING:
1 kPa (4” wg)
BURNER IGNITION: H.T. Spark
HOTPLATE - Propane X Left-hand Front Right-hand Rear Left-hand Rear Right-hand Front
BURNER TYPE
ULTRA-RAPID WOK RAPID SEMI - RAPID SEMI - RAPID
MAXIMUM HEAT INPUT
12.5 MJ/h
3.5 KW
(247 g/h)
(0.49 l/h)
11.5 MJ/h
3.2 KW
(227 g/h)
(0.45 l/h)
6.8 MJ/h
1.9 KW
(134 g/h)
(0.28 l/h)
6.8 MJ/h
1.9 KW
(134 g/h)
(0.28 l/h)
INJECTOR SIZE (mm)
1.05 0.94 0.72 0.72
PRESSURE POINT POSITION: Just below hotplate level on rear right-hand side of the appliance.
PRESSURE SETTING: 2.54 kPa (10” wg)
BURNER IGNITION: H.T. Spark
ELECTRIC GRILL AND OVENS: 240 VOLT, 50 Hz, SINGLE PHASE 30 AMP
TOP OVEN POWER RATING 3.0 kw (230V) / 3.2 kw (240V)
LOWER OVEN 0.9 kw (230V) / 1.0 kw (240V)
The data plate is located on a pull out plate, behind the plinth cover.
Weight of appliance: 215 kg (474 lbs)
Gas hob overview Fig. 16.1
A. Oven knob
B. Wok burner and knob
C. Rear semi-rapid burner and knob
D. Rear rapid burner and knob
E. Front semi-rapid burner and knob
