AGA DC5 Installation Guide

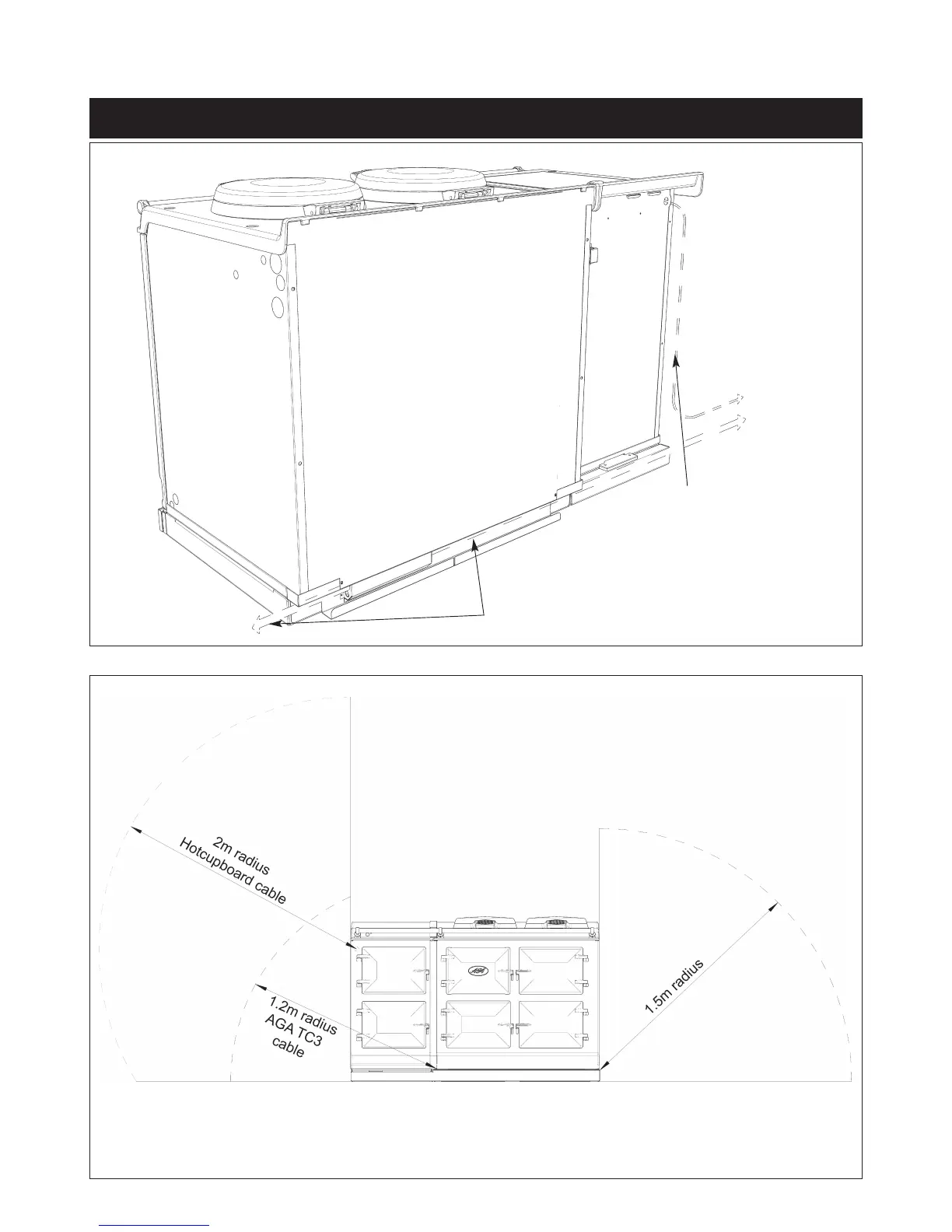

MAINS CABLE ROUTING - AGA DC5 (HOTCUPBOARD OPTION)
Fig. 5 DESN 516644
MAINS CABLE FED FROM CONTROL
TRAY LEFT OR RIGHT EXIT
THROUGH DUCTING DEPENDENT
UPON POSITION OF SUPPLY
SOCKET
10
Fig. 5A DESN 516447
THE MAINS SUPPLY CONNECT POINT MUST BE WITHIN THE ZONES SHOWN
HOTCUPBOARD
POWER SUPPLY

AGA DC5 Specifications

General

Brand	AGA
Model	DC5
Category	Ranges
Language	English
