HOTCUPBOARD INSTALLATION
Fig. 9 DESN 516448
Fig. 10 DESN 516449
14
NOTE: The AGA DC5 hotcupboard should arrive with the top plate in a jacked up position. This
is to allow the complete appliance to be slid onto its plinth when alongside the AGA DC3 without
the top plates clashing. The hotcupboard top plate should then be wound down to its correct
height once the appliance is in its final position.

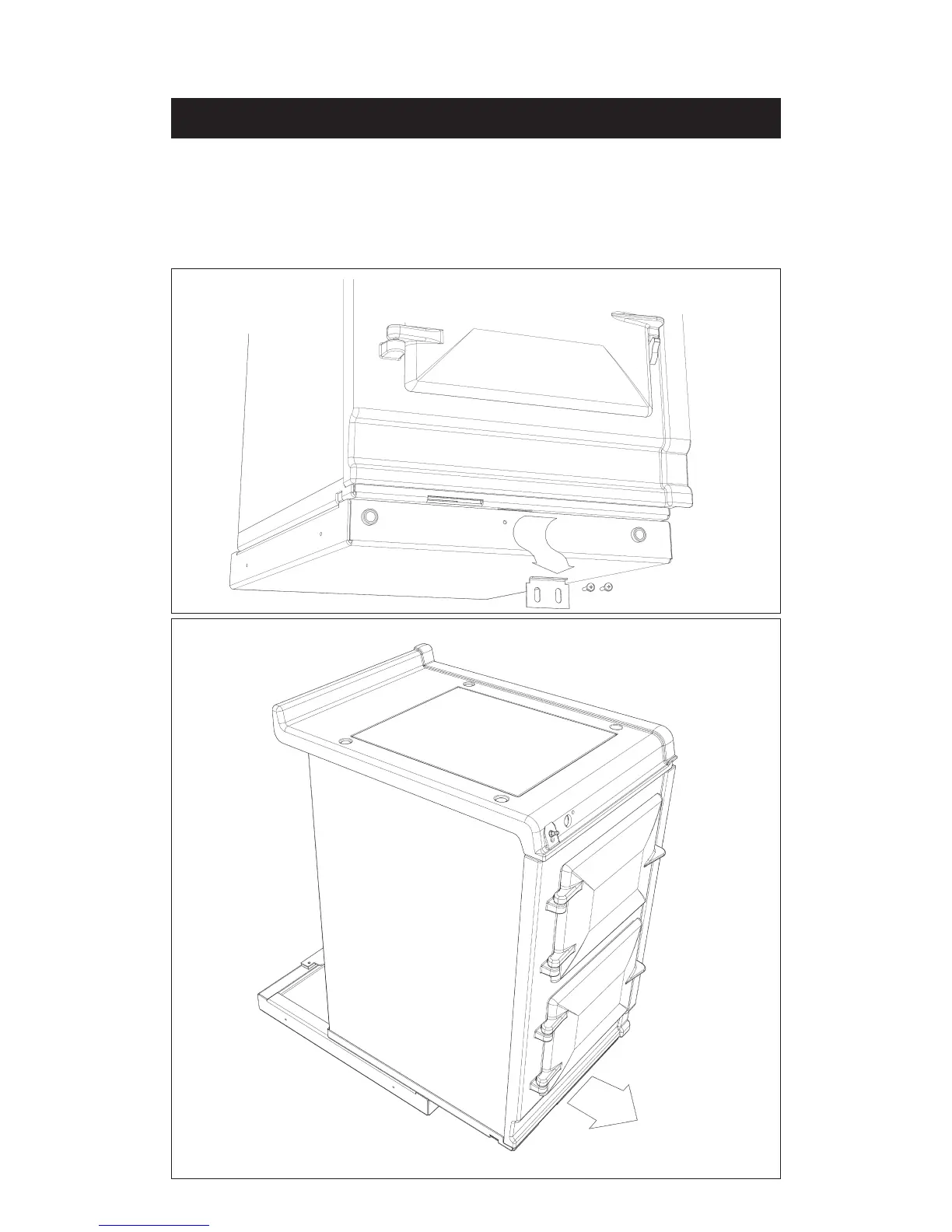

1. Detach hotcupboard from plinth by removing two screws and tongue bracket from plinth (See
Fig. 9), slide hotcupboard forwards and away from rear fixing bracket (See Fig. 10).
