ROOM VENTED MODELS

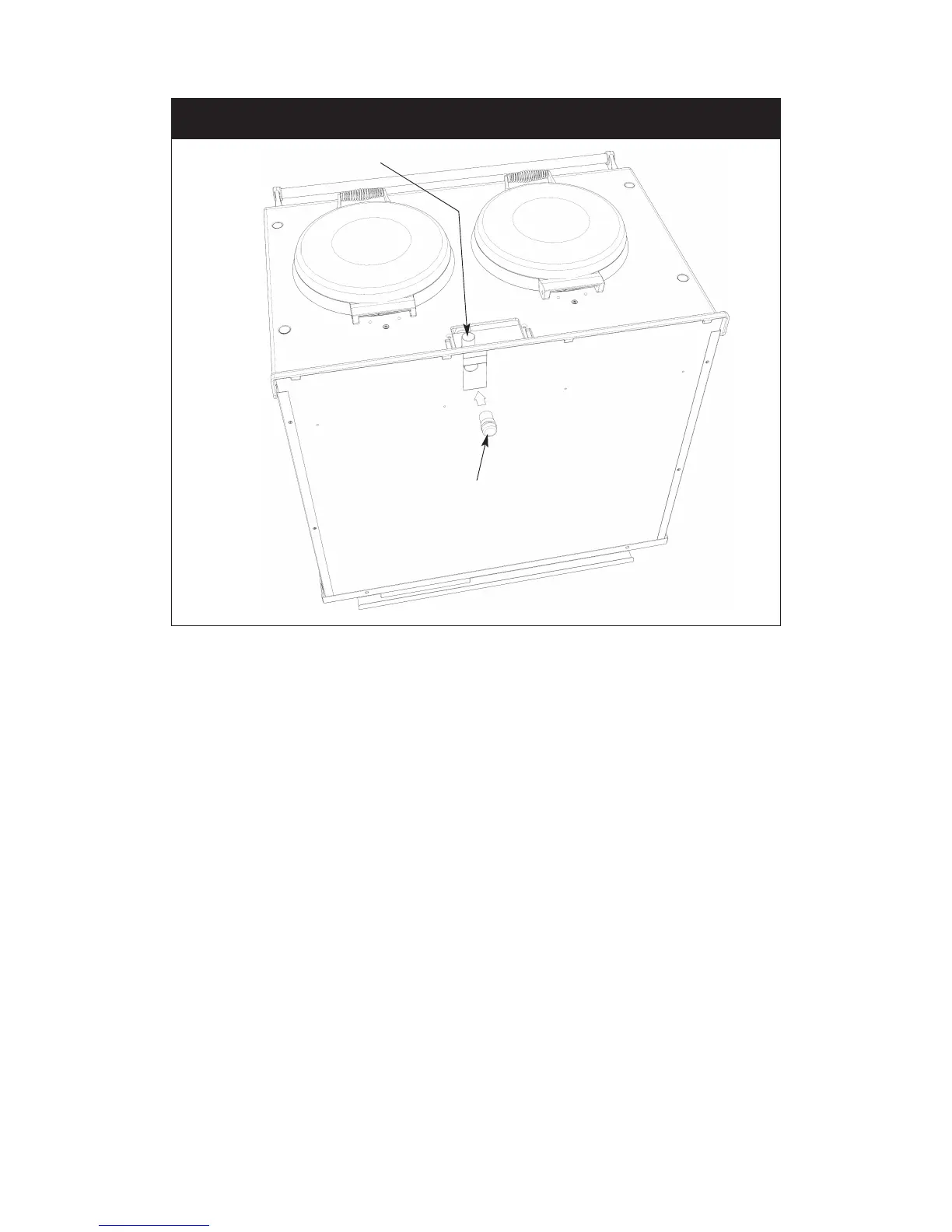

Fig. 7 DESN 516752
VENT UNDER SHROUD TO
BE LEFT OPEN
NOTE: ON ROOM VENT MODEL COPPER
END CAP TO BE PUSHED IN PLACE ON
INSTALLATION
12
Room Vented Models
It is recommended that this model is fitted in conjunction with a cooker hood. The AGA oven
venting outlet is located on the top of the AGA between the two hotplates., and is designed for
venting the moisture from the ovens. The cooker hood should be positioned not less than the
minimum height as recommended by the manufacturer, from the top of the AGA.
These are 650mm for AGA Rext 720 650mm for AGA 1000 SE
