Specifications
E
POSITION OF LIDS
WHEN RAISED
**N
c
**O
H
M
K
J
B
L
A
D
G
OVEN DOOR IN
OPEN POSITION
PLAN VIEW
DESN 516395 A

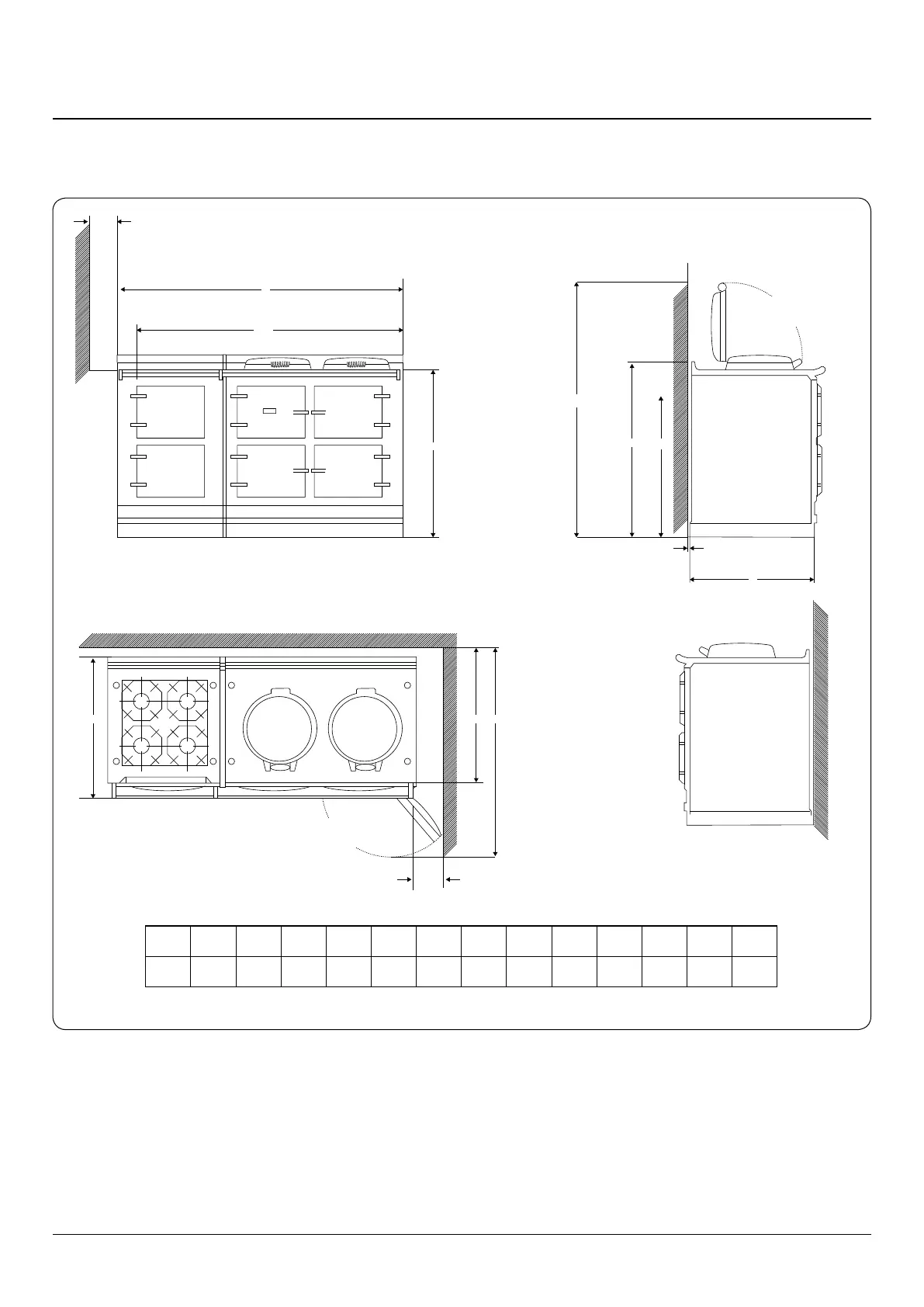

Fig. 9.1
AGA R7/eR7 with Gas Hob Module
A B C D E G H J K L M **N **O
mm 1589 960 915 680 60 1388 760 1145 125 10 698 1533 800
NOTE: When surveying for a cooker installation the actual clearance required for the ‘body’ of the appliance should be
increased overall by 10 mm beyond the gures quote above. This allows safe margin to take into account the natural
dimensional variations found in major castings in particular the width across an appliance recess could be critical.
** POSITION FOR GAS SUPPLY PIPE TO MODULE
