21
L
POSITION OF
LIDS WHEN
RAISED
A
**O
H
J
G
B C E
**N
D
F
OVEN DOOR IN
OPEN POSITION
PLAN VIEW
FRONT VIEW
LEFT-HAND
SIDE VIEW
RIGHT-HAND
SIDE VIEW
HOTCUPBOARD
ELECTRICITY SUPPLY
MINIMUM WALL
POSITION
DESN 516862 A
NOTE: When surveying for a cooker installation the actual clearance required for the ‘body’ of the appliance should be
increased overall by 10mm beyond the gures quote above. This allows safe margin to take into account the natural
dimensional variations found in major castings in particular the width across an appliance recess could be critical.

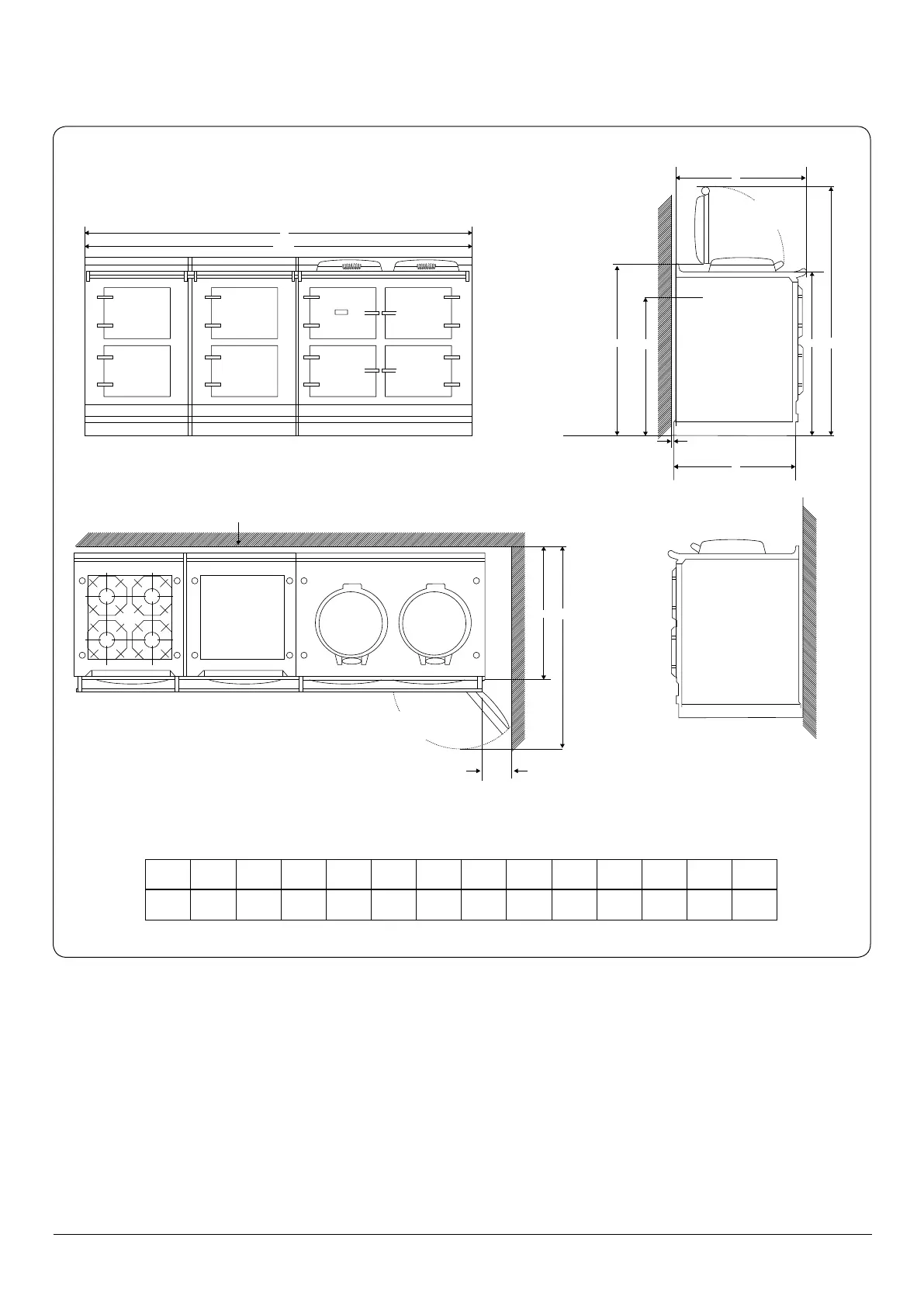

Fig. 9.2
AGA R7/eR7 with Hotcupboard and Gas Hob Module
A B C D E F G H J K L **N **O
mm 2089 960 915 680 1388 760 1145 698 125 10 634 2033 800
** POSITION FOR GAS SUPPLY PIPE TO MODULE
