24

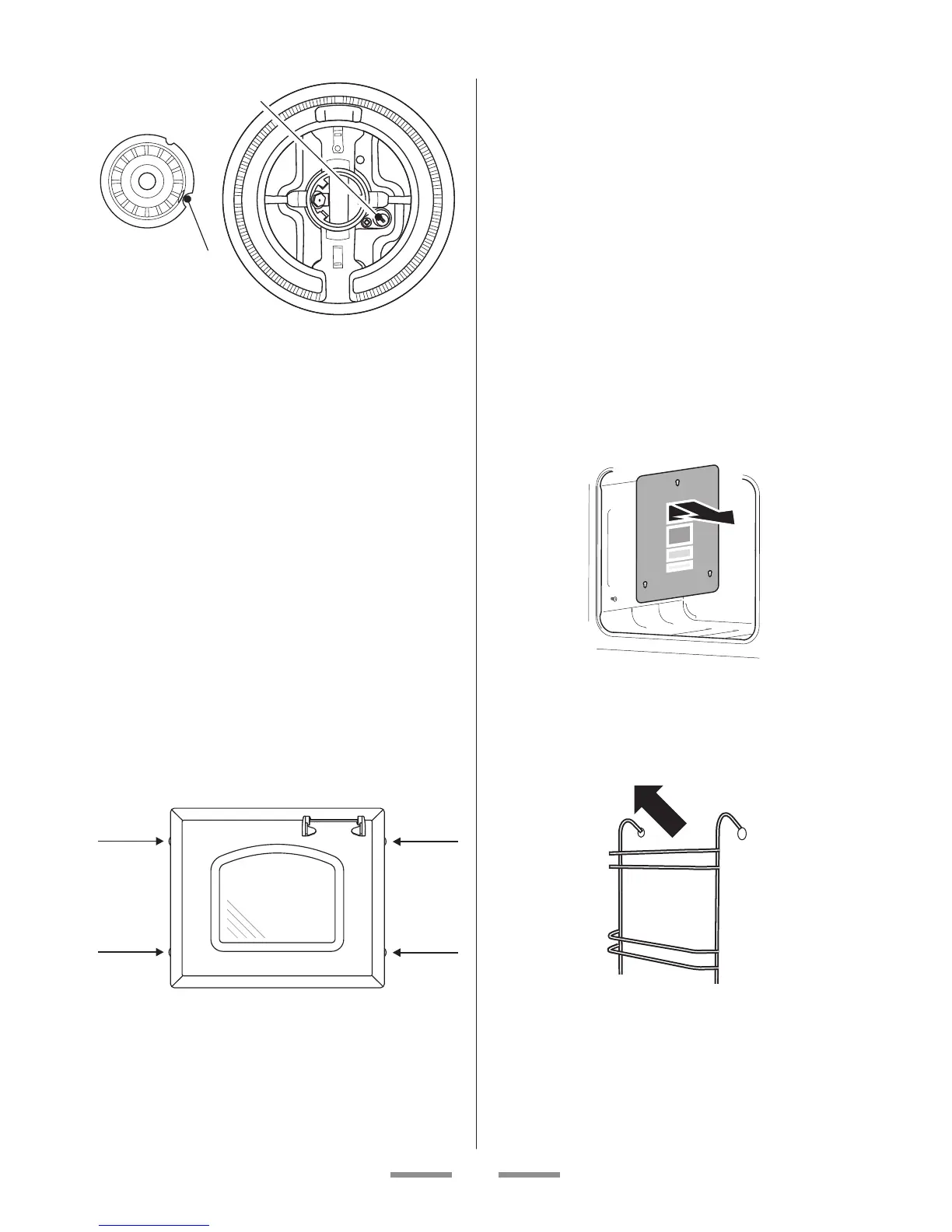

ArtNo.311-0016 Fitting the burner inner head
A
B
A electrode notch B ignition electrode
Now t the two trim rings, making sure that they
are sitting down properly.
Broiler
Control Panel and Doors
The control panel and control knobs should only
be cleaned with a soft cloth wrung out in clean
hot soapy water - but take care that no surplus
water seeps into the appliance. Wipe with a clean
dampened cloth then polish with a dry cloth. The
oven doors should only be cleaned with a soft cloth
wrung out in clean hot soapy water.
Models with Main oven window door
The Main oven door is triple glazed but the oven
door front panel can be taken o so that the inside
faces of the glass panels can be cleaned.
If necessary move the range forward to gain access
to the sides of the door (see the ‘Moving the range’
section of these instructions).
The door front panel is held by two xing screws on
each side.
The xing screws have a recessed hexagon socket
in the head. A hexagon key to t the screw is
supplied in the instruction pack.
Open the oven door slightly and use the key to
remove the front panel xing screws from the door
sides (two each side).
Carefully lift o the outer door panel. The inside
face of the glass panels can now be cleaned - take
care not to disturb or wet the door insulation.
Please note that the door is triple glazed but the
inner two panels are xed. Do not try to remove the
glass from the door.
After cleaning carefully ret the outer door panel
and replace the side xing screws.
Main Oven
If you wish to clean the enamel interior of the
oven, you will need to remove the shelves before
removing the linings. You do not have to remove
the support brackets to remove the linings. Lift
each lining upward and slide forward o the
support brackets. Once the panels have been
removed, the oven enamel interior can be cleaned.
The Tall Oven
To clean the oven sides slide out the racks, unhook
the supports from the oven sides and lift out.
