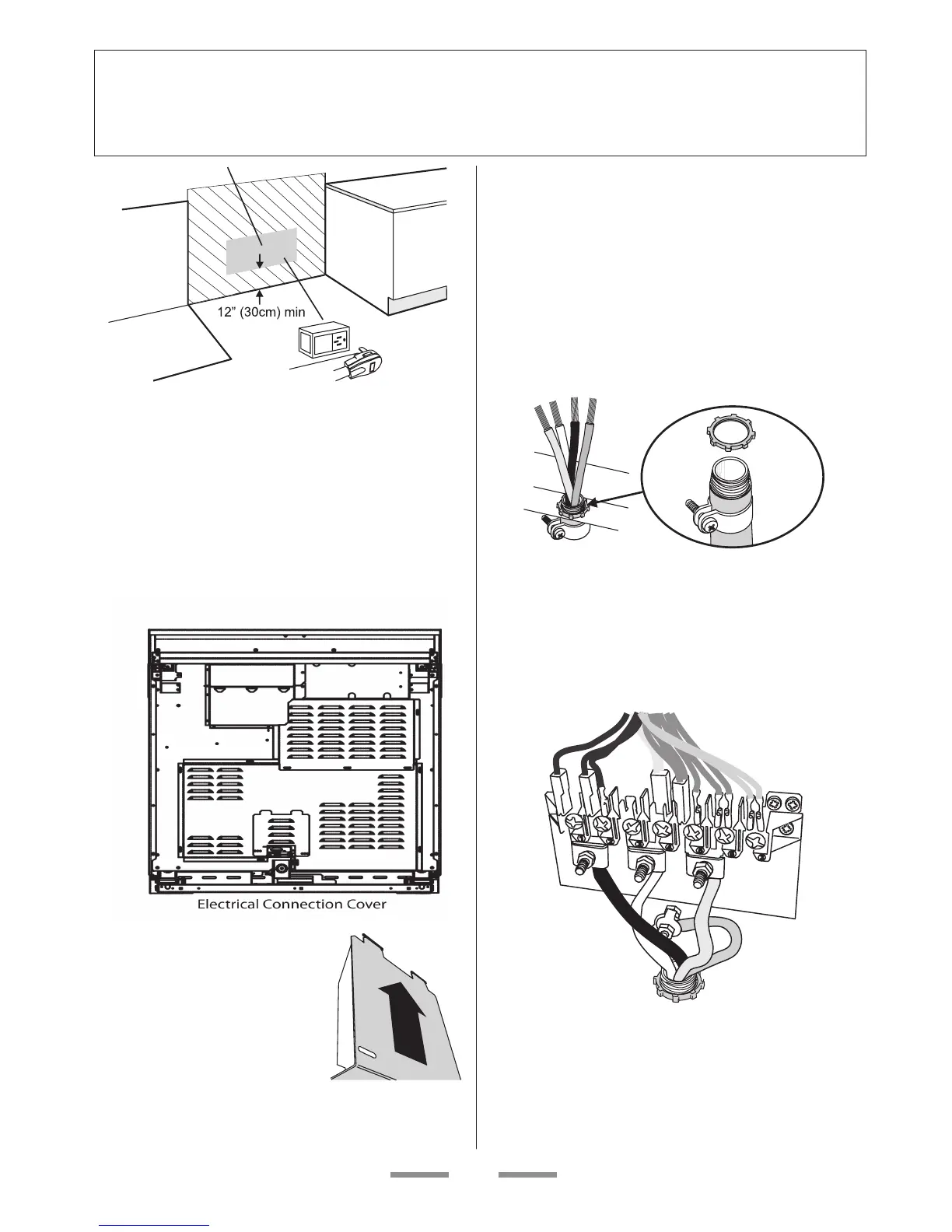

Connecting using the supplied cord
and plug
Your range is shipped with a 4-prong plug to be
used in a NEMA 14-50R receptacle.
Plug the range power cord into a properly
grounded wall receptacle.
Connecting if the supplied cord and
plug is not suitable.
To remove the electrical
connection cover rst remove
the screws on the bottom
edge. Slide the cover down to
free the top tags.
When retting the cover rst
locate it on the top tags and
then replace the screws.
4-Wire Conduit Installation
Disconnect the supplied power cord from the
terminal block and ground post. Keep the terminal
block parts; you will need them. Remove the strain
relief clamp from the power cord and remove
the power cord and strain relief clamp from the
mounting bracket.
The range is shipped with reducer plates to give a 1
1/8’’ diameter opening for conduit connection. Find
the reducer plates in the conversion kit and t them
to the mounting bracket.
Fit a squeeze connector (not supplied with the
range), to your conduit. Insert the conduit through
the reducer plates on the mounting bracket. Allow
enough slack to easily attach the wires to the
terminal block.
NOTE: Do not install the conduit without a squeeze
connector.
Fit the wires to the ground post and terminal block
NOTE: Make sure the wires are completely inserted
into the terminals and secure connections are
made.
