Read all instructions before installing or using this appliance.
Installation Instructions
Save these instructions for future reference.
Ratings
Natural Gas Propane Gas
Orice Orice Screw*
Cooktop
Wok burner 15,000Btu/hr internal 101 15,000Btu/hr internal 59 49
external 167 external 94
Large Burner 12,000Btu/hr 170 12,000Btu/hr 106 38
Medium Burners 9,200Btu/hr 150 8,000Btu/hr 84 31
Small Burner 5,000Btu/hr 107 4,200Btu/hr 61 22
Gas burner inputs based on Gross Caloric Value,
* The valves in this range are tted with adjustable bypass screws. The range is supplied with the bypass screws set
for Natural gas. For LPG conversion the bypass screws must be screwed all the way down.
Ovens Left-hand Multi-function Oven Right-hand Fan Oven
Fan element 2.5kW 2.5kW
Top element 1.2kW
Browning Element 1.15kW
Bottom element 1.0kW
Broiler 2.3kW
Maximum total electrical load at 240V approximate total including oven lights, oven fan etc: 7.4 kW.

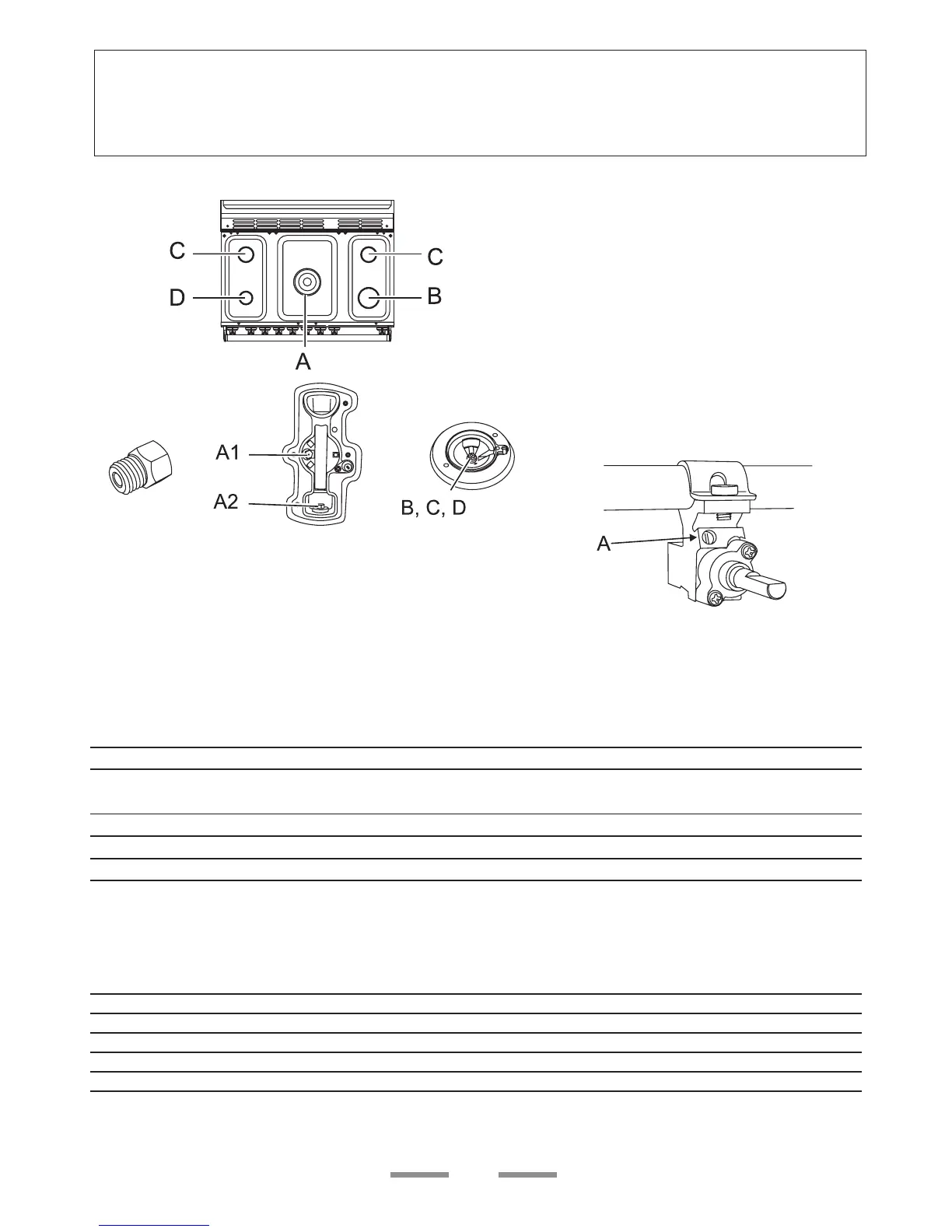

Orifices
A Wok burner
B Large Burner
C Medium Burners
D Small Burner
A valve bypass screw
