Safety

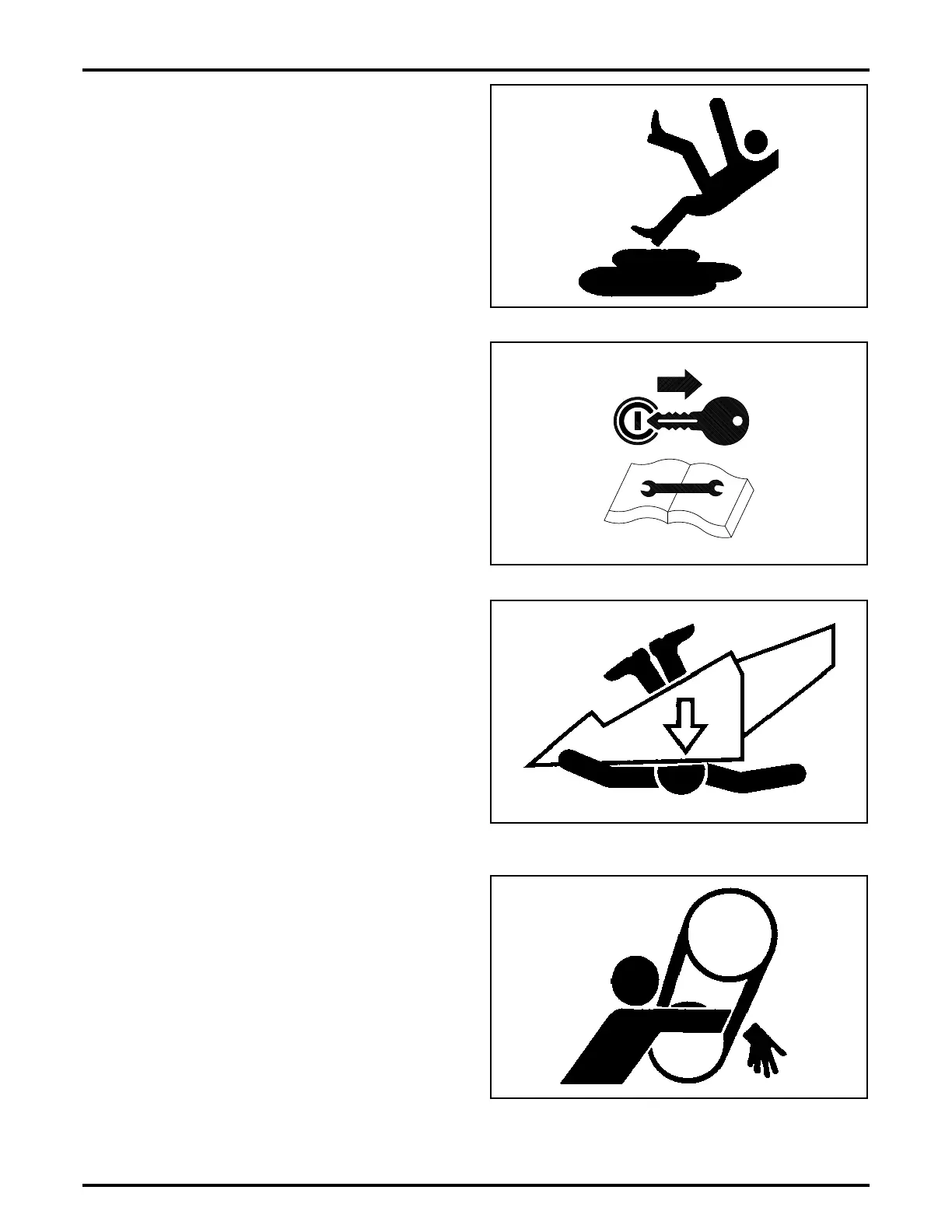

FIG. 28: Remove spilled oil, antifreeze or fuel
immediately from operator's ladder and platform and
other access areas.
Keep all access areas clean and free of obstructions.
FIG. 29: Before doing any unplugging, lubricating,
servicing, cleaning, or adjusting, park the machine on a
solid level surface. Always shut off the engine, shift the
transmission to neutral, set the parking brake and remove
the start key before leaving the operator's station.
LOOK AND LISTEN! Make sure all moving parts have
stopped.
Always chock the wheels before working on or under the
machine or attachments.
FIG. 30: When working on the machine make sure the
header is lowered to the ground and the reel is lowered all
the way.
When it is necessary for the header or the reel to be in the
raised position, raise the header and the reel all the way.
Engage the header and the reel lift cylinder stops. See
Cylinder Stops of this section for more information.
m
WARNING: Always install the header and
the reel lift cylinder stops when working
near the header. Do not rely on the
hydraulic system to keep the header and
the reel raised. A sudden loss of hydraulic
pressure could cause the header or the reel
to lower unexpectedly.
FIG. 31: Never check, adjust, or lubricate chains or drive
belts while the machine is running.
Never remove crop from the machine while the machine
is running.
Moving parts can pull you in faster than you can move
away!
FIG. 28
FIG. 29
FIG. 30
FIG. 31
