Safety
01-16 79034308 B Rev.
CYLINDER STOPS
Reel Lift Cylinder Stops
A reel lift cylinder stop is supplied for the reel lift cylinder
on both sides of the header. Install both reel lift cylinder
stops to prevent lowering of the reel.

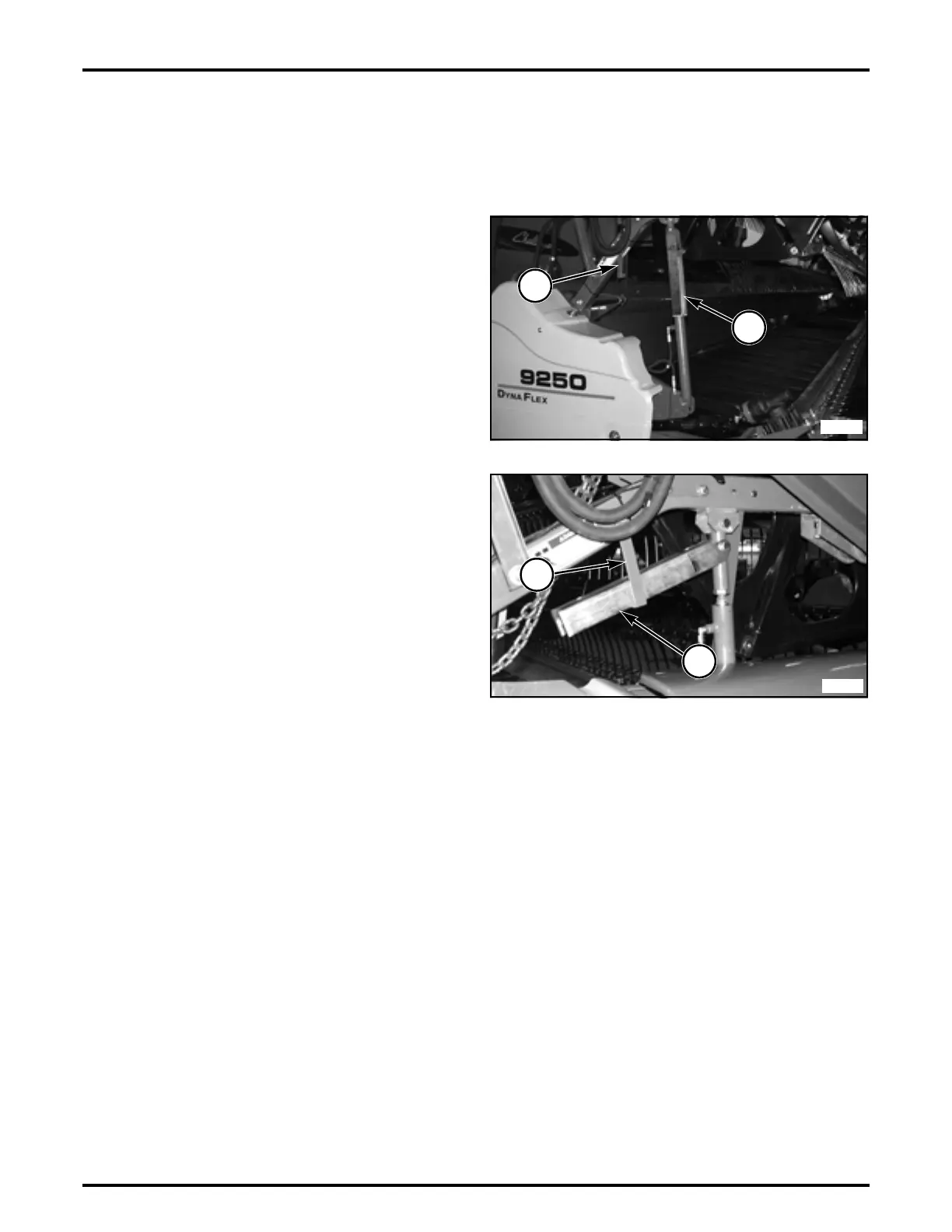

FIG. 38: Engaging Lift Cylinder Stops - Put the
header on the ground and raise the reel to maximum
height. Stop the engine, set the parking brake, and
remove the start key.
Release the stop (1) from the carrying strap (2). Swing
the stop forward until the retaining spring snaps around
the rod of the cylinder.
Repeat this procedure for both sides of the header.
Start the engine and lower the reel lift cylinders until the
stops are contacting the upper ends of the cylinder
barrels.
FIG. 39: Disengaging Lift Cylinder Stops - Put the
header on the ground and raise the reel to maximum
height. Stop the engine, set the parking brake and remove
the start key.
Return the stops (1) to the carrying straps (2).
FIG. 38
FIG. 39
