79034308 B Rev. 01-17
Safety
Header Lift Cylinder Stop

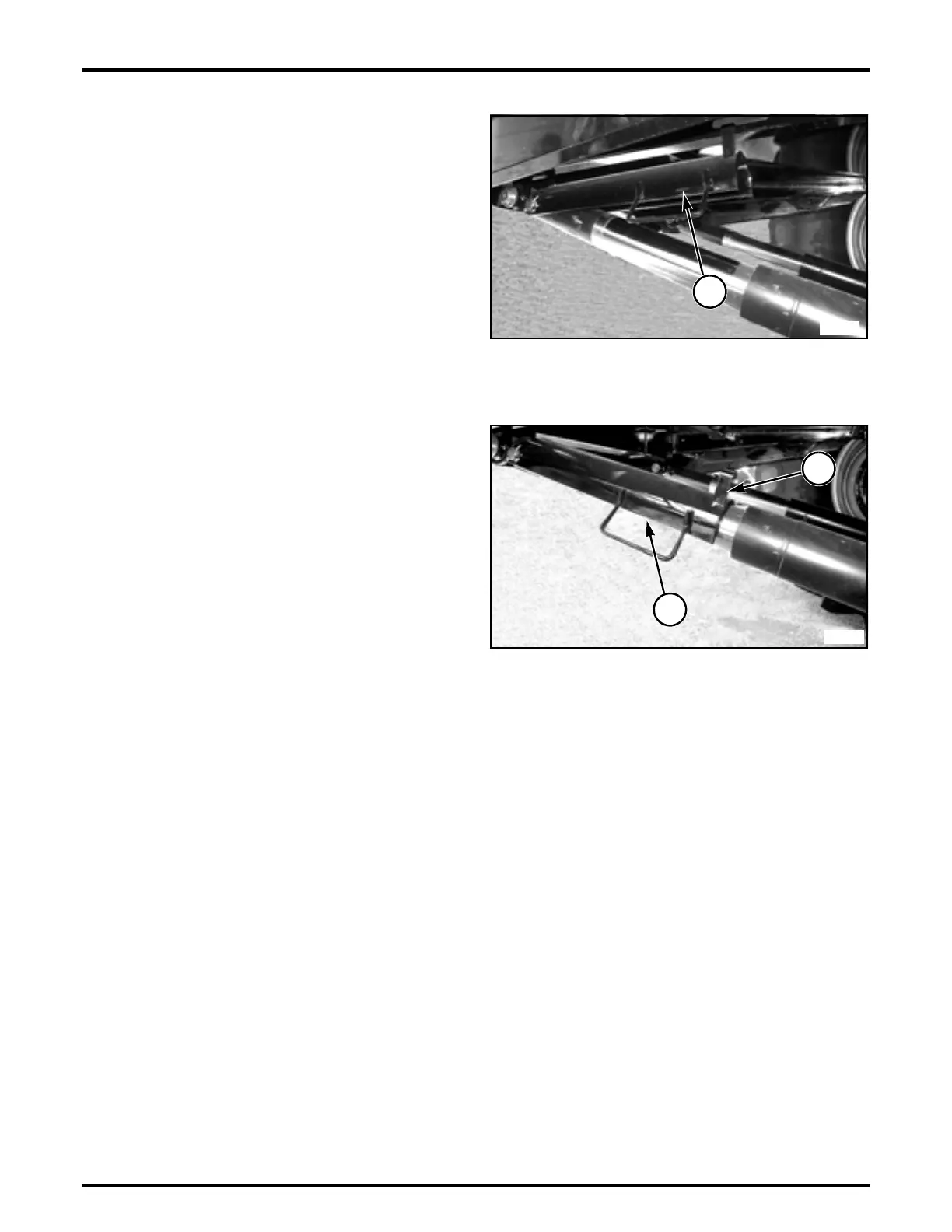

FIG. 40: Disengaging Lift Cylinder Stop - A lift
cylinder stop (1) is located on the left-hand header lift
cylinder of the machine. The lift cylinder stop is shown in
the disengaged position.
Raise the header to maximum height. Stop the engine,
set the parking brake, and remove the start key. Raise the
lift cylinder stop and engage the carrying strap (2) into the
slot provided on the feeder housing.
m
DANGER: NEVER permit anyone to work
under the header or the feeder housing or
between the header and the machine
UNLESS the header lift cylinder stop is fully
engaged on the lift ram, the engine is
stopped, the brake is set, the start key is
removed, and the header is latched
securely to the feeder housing.
FIG. 41: Engaging Lift Cylinder Stop - Raise the
header to maximum height. Stop the engine, set the
parking brake, and remove the start key.
Release the carrying strap (2) on the lift cylinder stop (1)
from the slot provided on the feeder housing. Swing the
stop downward until the lift cylinder stop surrounds the
three sides of the cylinder.
Start the engine and lower the header until the stop is
contacting the upper end of the cylinder barrel.
FIG. 40
FIG. 41
