79034308 B Rev. 02-7
General Information
Attaching Header

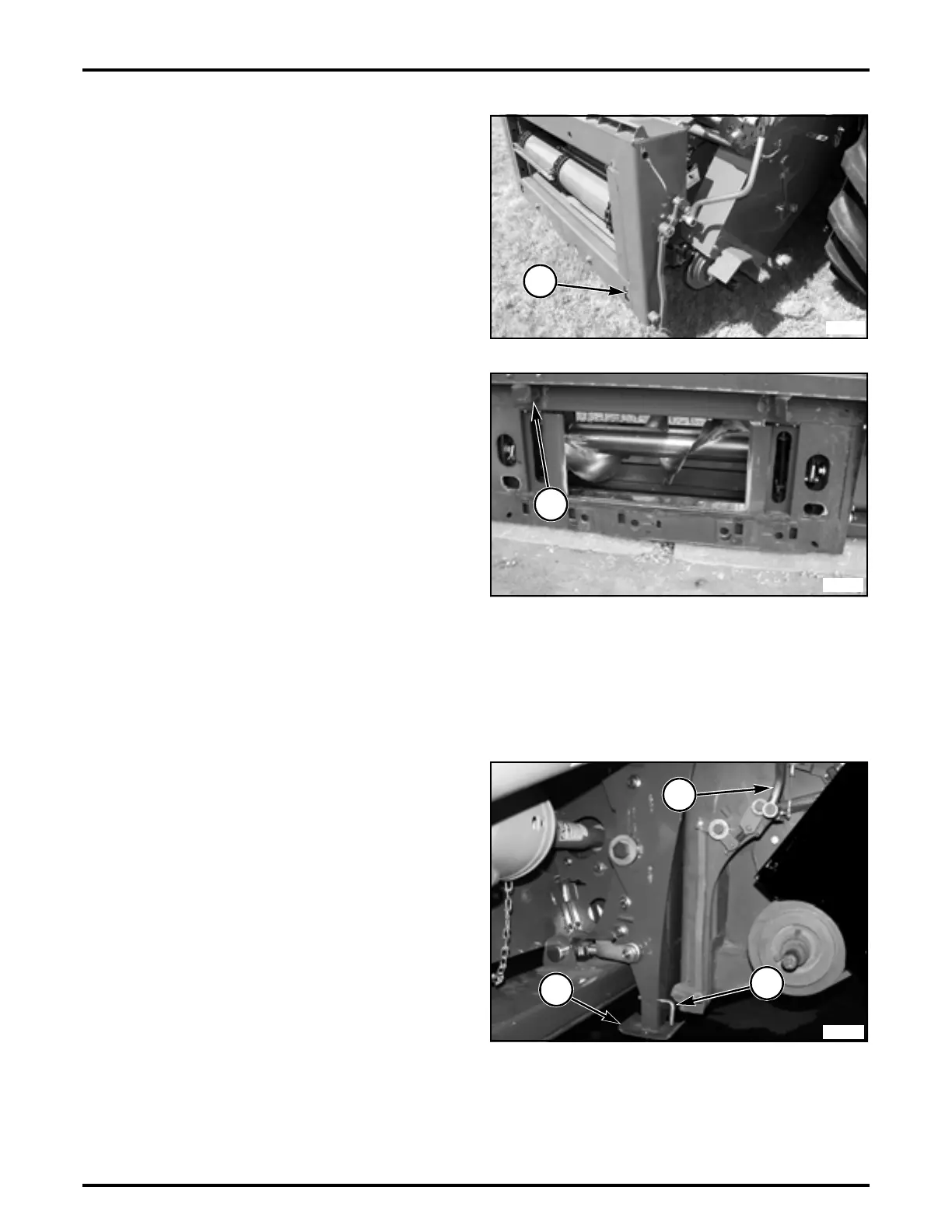

FIG. 12: Rotate the feeder housing latches (1) back into
the feeder housing. Lower the feeder housing.
FIG. 13: Align the left-hand front corner of the feeder
housing with the left-hand guide flange (1) in the header
opening. Drive the machine squarely into the header.
Raise the feeder housing, picking up the header and
letting the lower pins enter the holes in the header back.
Raise the header to full height and engage the header lift
cylinder stop.
m
WARNING: Always follow this procedure to
engage the header lift cylinder stop:
Raise the header to maximum height. Stop
the engine, set the brake and remove the
start key.
Position the cylinder stop over the lift
cylinder rod. Start the engine and lower the
header until the cylinder stop engages the
front end of the lift cylinder barrel.
With the header lift cylinder stop engaged,
again stop the engine, make sure the brake
is set and remove the start key.
FIG. 14: Install the tool (1) onto the latch crank and
rotate the upper latch assembly counterclockwise to lock
the hooks into the header. Make certain the latch is
rotated over center to lock the hooks.
If the hooks do not latch, check that the lower pins are
seated in the header back. If the lower pins are not
seated, put a block under the left-hand end of the header
and lower the header to reset the pins. Latch the hooks.
Remove the hairpins from the lockpins (2) holding the
parking stands (3). Raise the parking stands all the way
up into the header interface. Install the lock pins through
the holes in the header interface and the parking stands.
Raise and lower the header against the ground multiple
times before raising the header to full height and
engaging the header lift cylinder stop. This lets the header
completely settle in the feeder housing before aligning
and connecting the header driveline.
FIG. 12
FIG. 13
FIG. 14
