79034308 B Rev. 02-5
General Information
Parking Stands

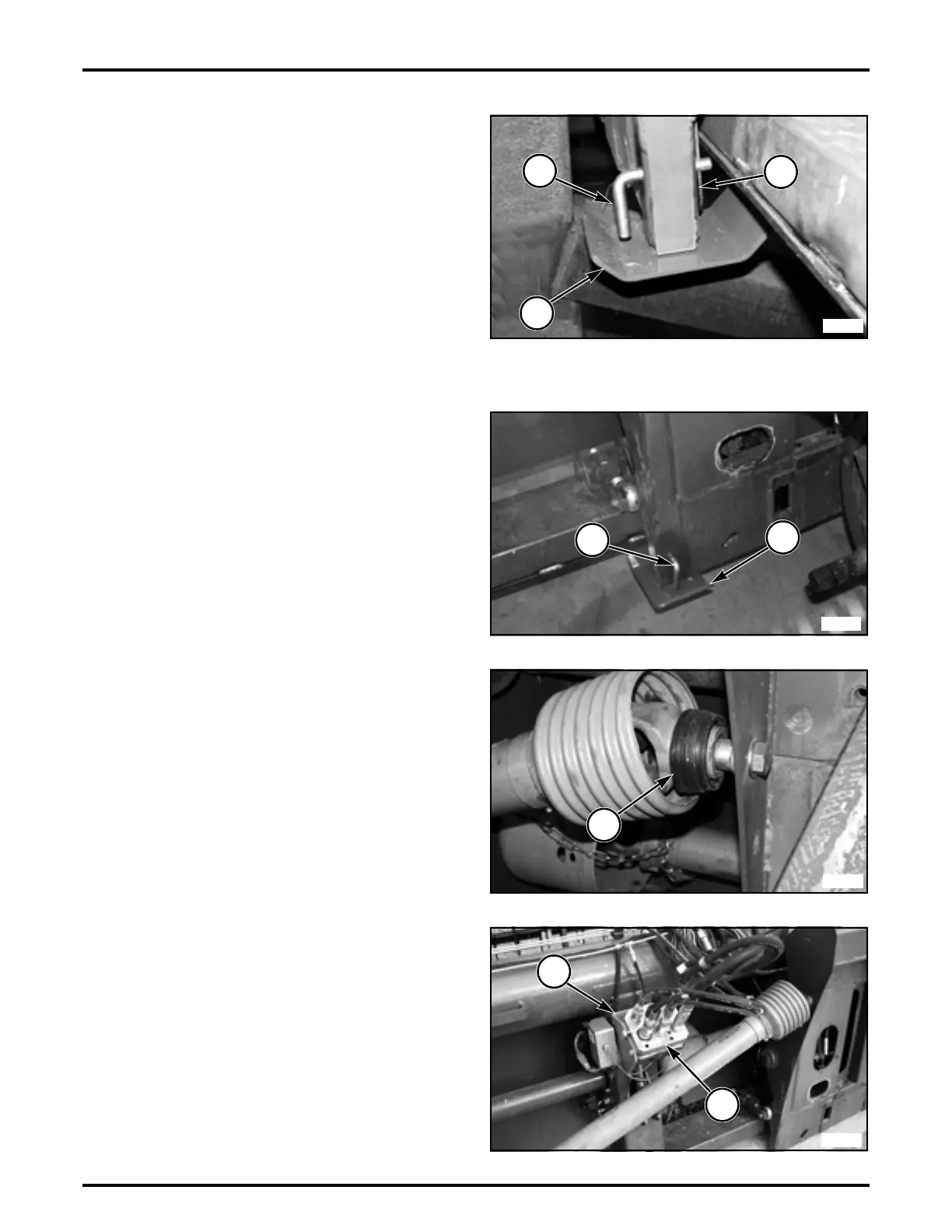

FIG. 5: The parking stands (1) are used to support the
header when disconnecting the header from the machine.
The stands hold the header in the correct position when
removing and attaching the header to the machine.
Lower the header until the skid pads are contacting a level
area on which to set the header. Remove the hairpin (2)
and then the locking pin (3) from each parking stand.
Lower the two parking stands to the level surface. Raise
the parking stands to align the first set of locking holes
available and install the locking pins. Secure the locking
pin by inserting the hairpins.
Removing Header
FIG. 6: The parking stands (1) are used to support the
header when disconnecting the header from the machine.
The stands hold the header in the correct position when
removing and attaching the header to the machine.
Lower the header until the skid pads are contacting a level
area on which to set the header. Remove the hairpin and
then the locking pin (2) from each parking stand. Lower
the two parking stands to the level surface. Raise the
parking stands to align the first set of locking holes
available and install the locking pins. Secure the locking
pins by inserting the hairpins.
Stop the engine, set the parking brake, and remove the
start key.
FIG. 7: Slide the collar (1) to release the yoke on the
driveline and then slide the driveline outward far enough
to expose the end of the feed house drive shaft. Slide the
yoke onto the driveline mount for storage. Repeat the
procedure for the opposite driveline on dual Knife drive.
FIG. 8: Disconnect the mobile single point connector (1)
from the single point connector on the machine.
Put the connector into the couple storage bracket (2)
when not in use.
FIG. 5
FIG. 6
FIG. 7
FIG. 8
