General Information
02-6 79034308 B Rev.

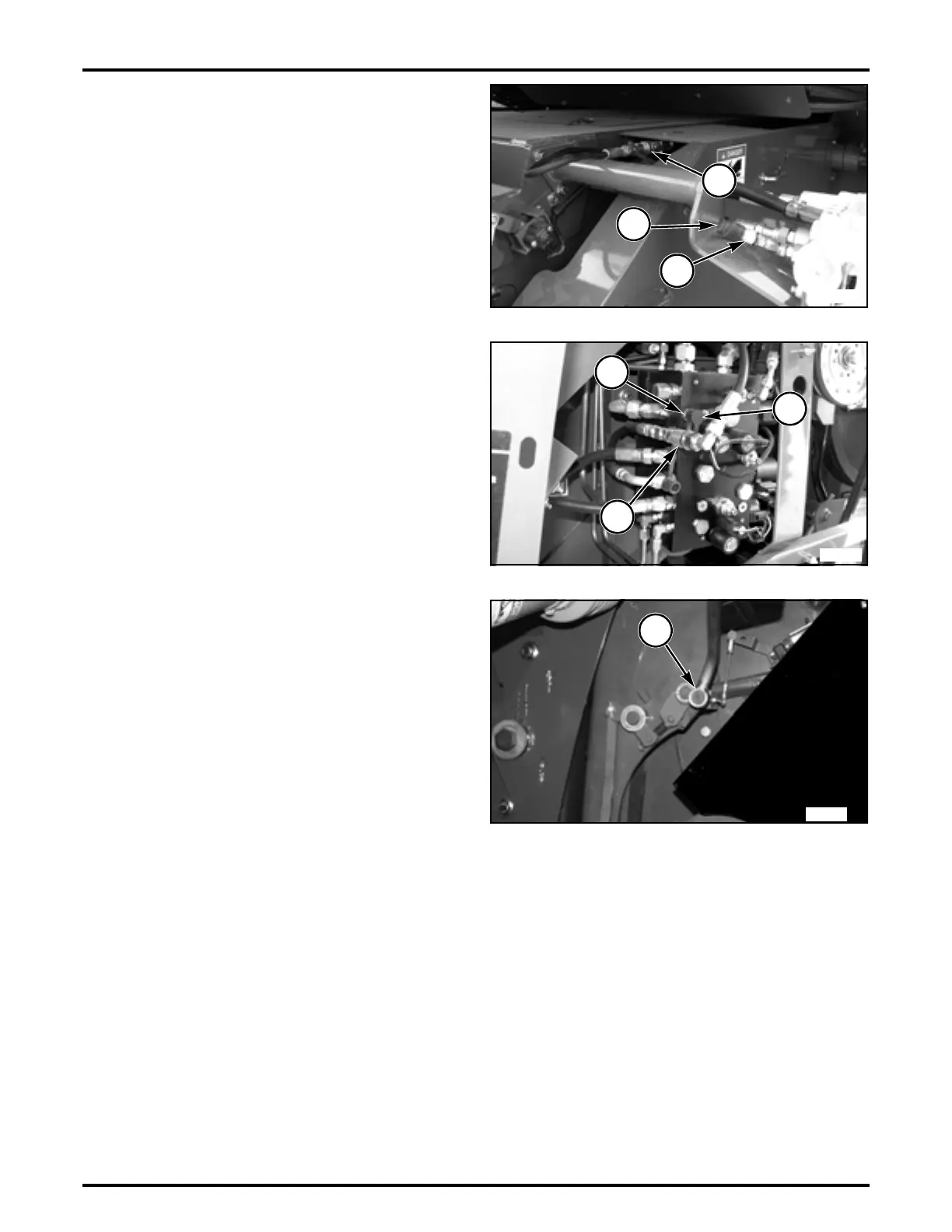

FIG. 9: Transverse Machine - If a corn head is going to
be attached to the machine, disconnect the reel lift quick
coupler from the reel lift fitting (1). Connect the female
quick coupler to the male coupler (2) for the header
variable speed sheave. Install the dust cap (3) onto the
reel lift fitting.
At the left-hand side of the pivot shaft move the lock out
ring on the variable speed drive sheave to the unlocked
position.
FIG. 10: Axial Machine - If a corn head is going to be
attached to the machine, disconnect the variable speed
quick coupler from the hydraulic coupler (1). Connect the
quick coupler (2) to the male coupler at the reel lift port in
the main hydraulic valve. Install the dust cap (3) onto the
hydraulic coupler.
At the right-hand side of the pivot shaft move the lock out
ring on the variable speed drive sheave to the unlocked
position.
FIG. 11: Install the socket of the tool over the hex stub
(1) of the feed house latch linkage. Move the concave
door tool rearward to unlock the feed house hooks from
the header.
Start the engine and lower the header until the header
disengages from the truss cradle on top of the feeder
housing. Back the machine away from the header.
FIG. 9
FIG. 10
FIG. 11
