5
P/N 016-0171-588 Rev. D 23
ISOBUS ECU MOUNTING AND CONNECTION

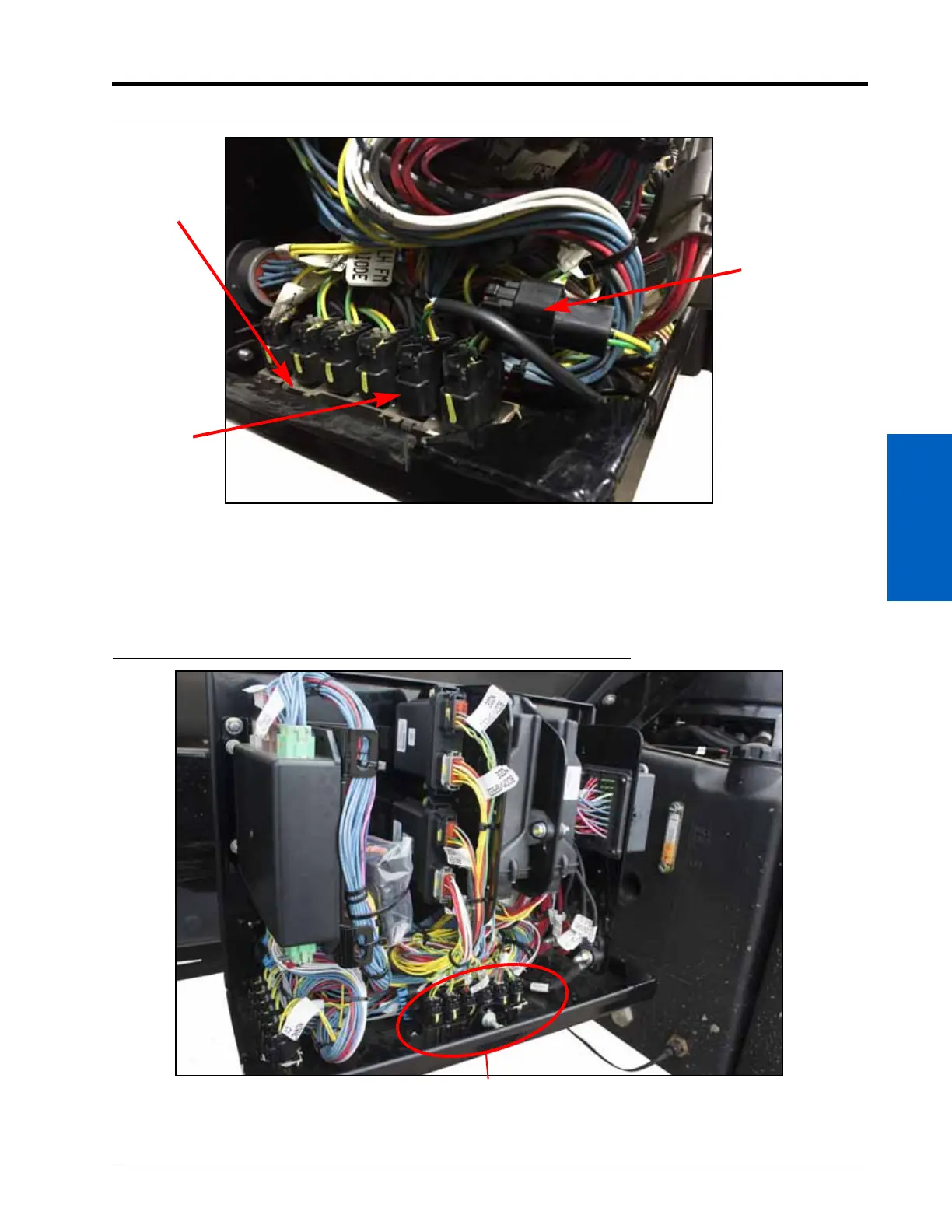

FIGURE 6. ISOBUS Bar Location
10. Disconnect the connector from the second port of the ISOBUS bar and insert the plug into one of the mating
retrofit cable connectors.
11. Insert the ISOBUS Connector of the retrofit cable into the ISOBUS bar receptacle.
12. Locate the Raven CAN bus bar along the side of the electrical box facing the right side of the machine.
FIGURE 7. Raven CANbus Bar Location
13. Locate and disconnect the connector labeled “BIS” from the Raven CANbus bar.
ISOBUS
Bar
Retrofit
Cable
ISOBUS
Connector
Existing
ISOBUS
Connector
To Next Page
