CHAPTER 5
24 AGCO RoGator RG900/1100/1300 Hawkeye™ Installation Manual
14. Connect the BIS connector to one of the mating ISOBUS connectors on the Hawkeye retrofit cable (P/N 115-
7303-085).
RETROFIT CABLE INSTALLATION (115-0172-085 CABLE REV D AND LATER AND 115-0172-325 REV B)
Check the label on the 115-7303-085 cable to determine which cable revision you have. If C or earlier, complete the
steps in “Retrofit Cable Installation (115-0172-085 Cable Rev A - Rev C)” on page 22.
1. Locate the large, round receptacle on the Hawkeye retrofit cable (P/N 115-7303-085).
2. Remove the nut and washer from the receptacle.
3. Feed the receptacle through the hole previously drilled through the back of the electrical box (refer to Figure 3
on page 21).
4. Replace the washer and nut onto the connector from the back of the electrical box to secure the receptacle.
5. Route the opposite end of the cable harness to the product controller II ECU.
6. Insert the 12-pin Deutsch plugs (gray, green, brown, and black) into the Product Controller II ECU as shown in
Figure 5 on page 22. Push each connector in until both retaining clips lock into place.
7. Reinstall the node mounting plate into the electrical box and use a socket and socket extension to secure the
plate in place with the existing hardware.
ROGATOR ISOBUS TEE CABLE INSTALLATION (P/N 115-0172-325 REV B; FOR USE WITH 115-0172-085 REV D CABLES AND
LATER ONLY)
1. Locate the ISOBUS Bar located inside the electrical box. The ISOBUS bar is adjacent to the edge of the box
closest to the rear of the machine.

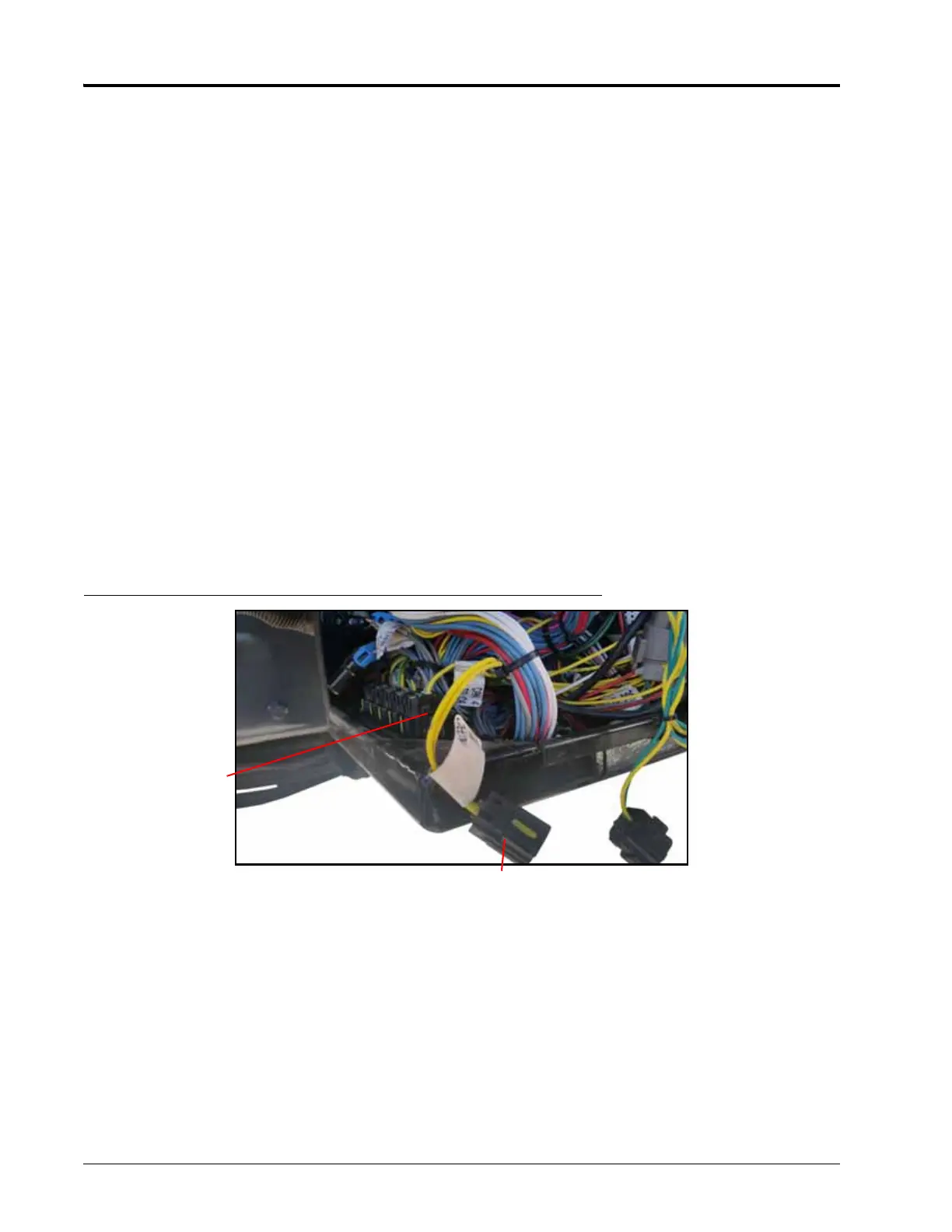

FIGURE 8. ISOBUS Bar
2. Disconnect the first connection on the ISOBUS bar.
3. Locate the provided RoGator ISOBUS Tee Cable (P/N 115-0172-325 Rev B).
4. Locate and connect the mating receptacle of the RoGator ISOBUS Tee Cable to the open connector on the
ISOBUS bar.
5. Locate the mating connection on P/N 115-0172-085 Rev D and plug it into the ISOBUS Tee Cable (P/N 115-0172-
325 Rev B).
First ISOBUS Bar Connection Removed
Open First
Connection
