DX-D 100 Mobile X-ray Unit
User Manual
0188K EN 20201116
47

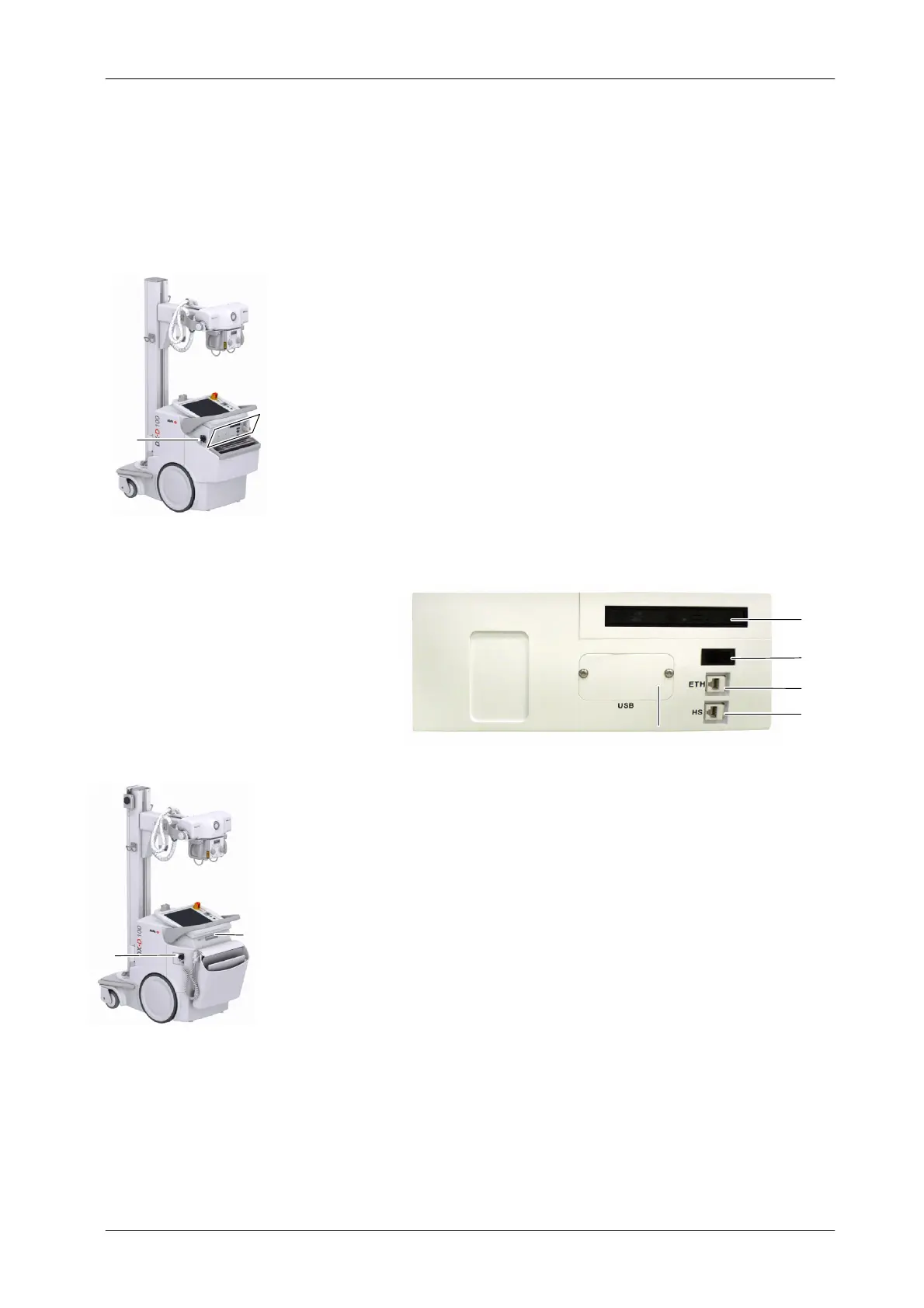

3.3 PERIPHERAL CONNECTIONS - CD / DVD
3.3.1 CONFIGURATION WITH WIRELESS DR DETECTOR
The Mobile Unit has a Peripheral Connections Panel provided with:
1. CD / DVD Writer .
2. IR Data Communication, for registration of some models of Wireless
DR Detectors (for further information, refer to section 3.11.1).
3. Detector Back-up Cable (ETH) connector for registration of some
models of Wireless DR D etectors and for connecting the optional
Detector Back-up Cable (for further information, refer to s ection 3.11.1).
4. Handswitch (HS) connector.
5. USB Ports: Keyboard and Mouse connections, for Technical Service.
6. WI-FI Connection (internal).
7. Bluetooth Connection (option; internal) in order to connect other
accessories (Mouse, Keyboard, Barcode Reader, Touchpad, etc).
8. Ethernet Cable Reel
3
1
2
4
3.3.2 CONFIGURATION WITH PORTABLE DR DETECTOR
The Mobile Unit is provided with:
1. CD / DVD Writer .
2. USB Ports: Keyboard and Mouse connections, for Technical Service.
3. WI-FI Connection (internal).
3.4 CONTROL CONSOLE
The Control Console includes the controls, indicators and displays needed to
perform radiographic exams (Refer to the NX User Manual and the
DX-D 100 Software Console User Manual).
8
1-7
1
2
