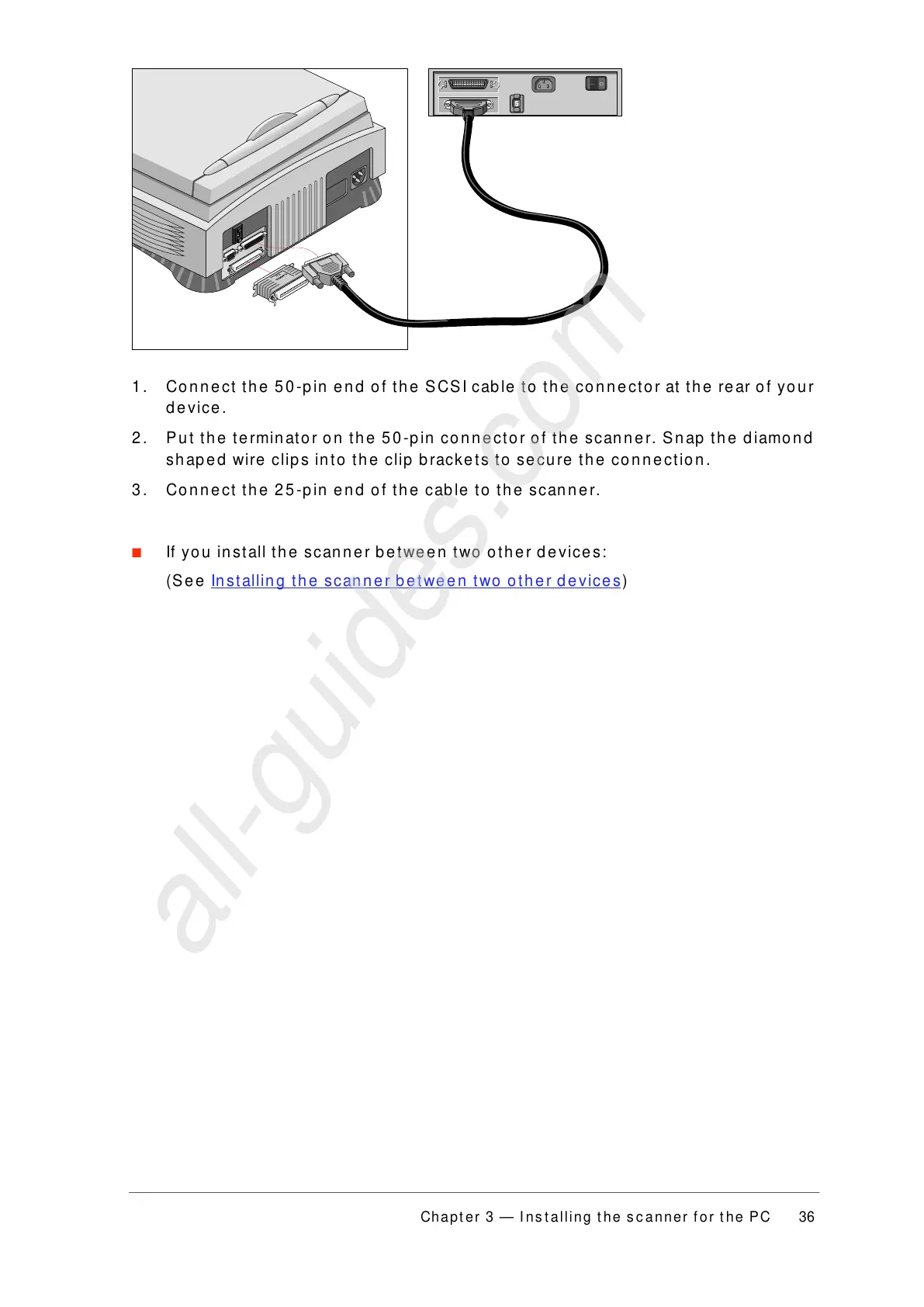

Chapter 3 — Installing the scanner for the PC 36
1. Connect the 50-pin end of the SCSI cable to the connector at the rear of your
device.
2. Put the terminator on the 50-pin connector of the scanner. Snap the diamond
shaped wire clips into the clip brackets to secure the connection.
3. Connect the 25-pin end of the cable to the scanner.
■ If you install the scanner between two other devices:
(See Installing the scanner between two other devices )
