Agilent Technologies 1200 Infinity Series User Guide

18 HDR-DAD Solution
3 Installation of the HDR-DAD Solution
Flow connections and network setup
1 Install the DAD
2
on top of DAD
1

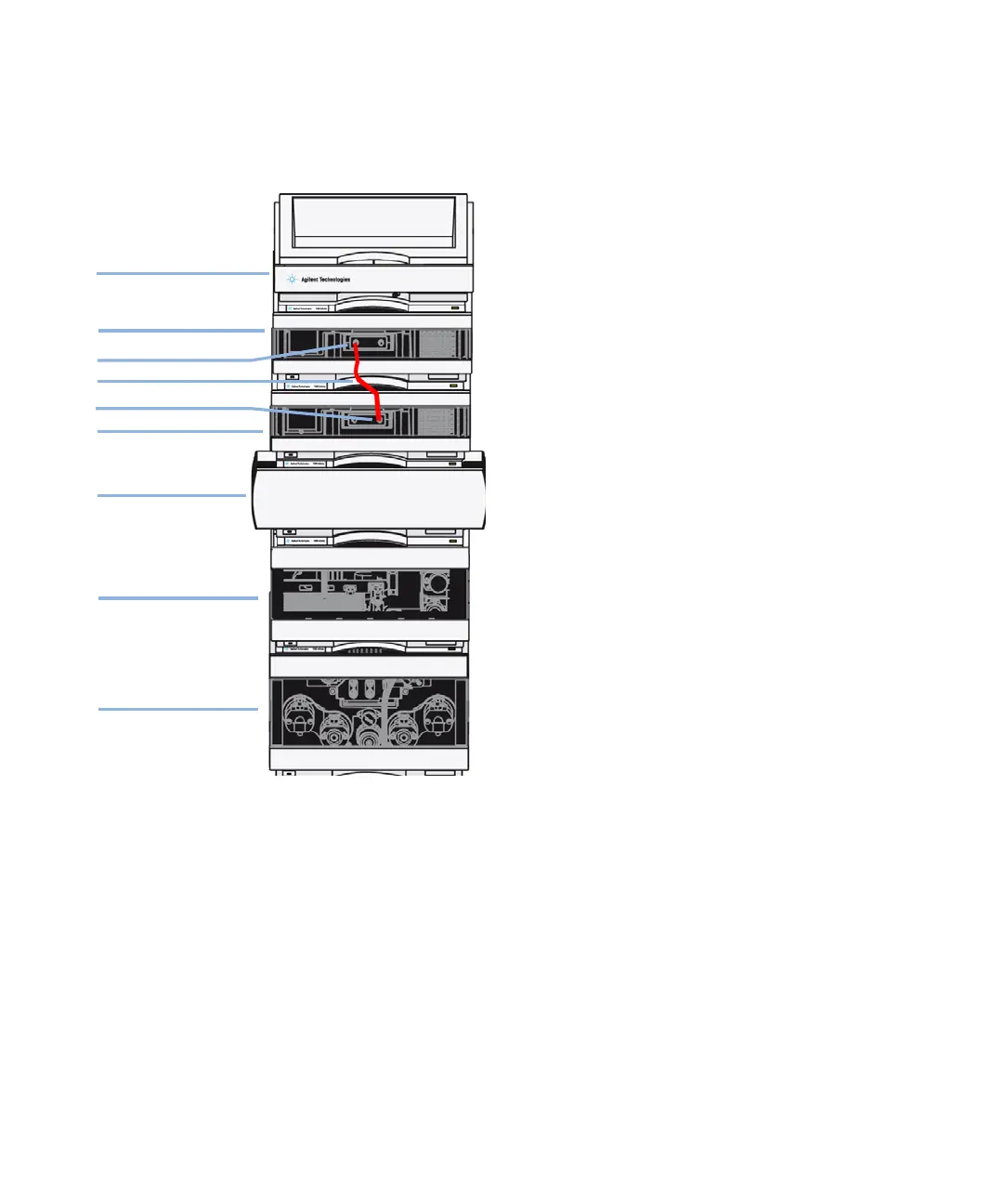

Figure 3 Stack and capillary connection for HDR-DAD (1290 Infinity Stack as an
example)
2 Connect the capillaries from the TCC to DAD
1
and the outlet of DAD
1
to
inlet the of DAD
2
using Capillary, SST 0.11 mm ID 220 mm long
(5067-4660).
Solvent cabinet
TCC
ALS
Pump
DAD 2
Capillary
DAD 1
Inlet DAD 2
Outlet DAD 1
