Operation 2
3200P pH Meter User Guide 35
For each Buffer Group Setup, you may select up to five
buffers. Since the pH range of a buffer may overlap with the
pH range of another buffer in the same buffer group, the
meter limits the selection of two or more buffers with
overlapping pH ranges.
To select a buffer group:
1 View the last pH calibrated data. See “To view last
calibrated data” on page 45.
2 Press [Setup] to enter Group Setup as shown in Figure 16.
Figure 16 indicates that the current Buffer Group Setup
meets the DIN standard. The upper area displays the
three buffer groups and the bottom area displays the
buffers included in the selected buffer group.
3 Use the arrow keys to highlight the target buffer group
and press [Setup]. The display is shown in Figure 17.

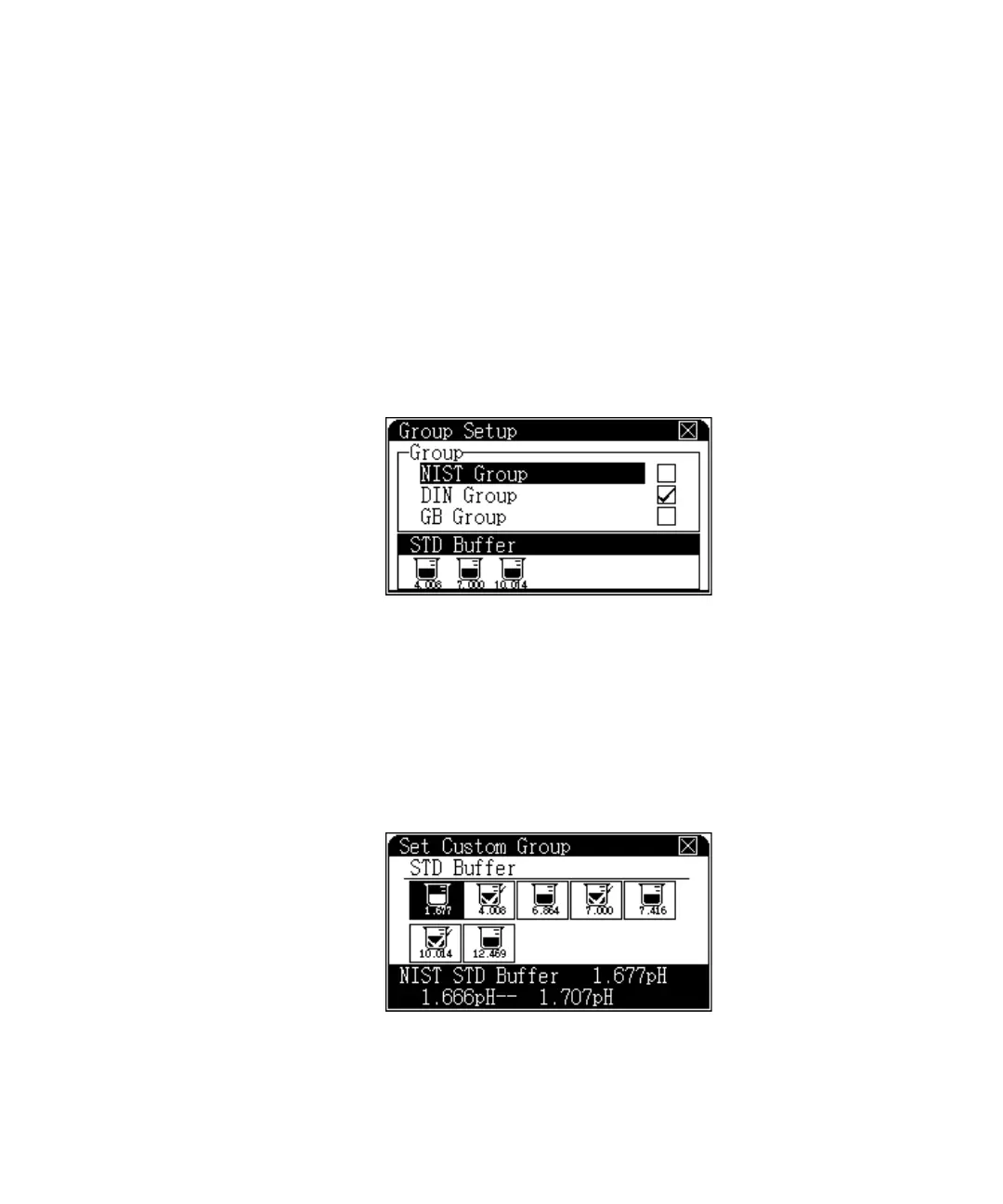

Figure 16 Group setup
Figure 17 Modifying a buffer
