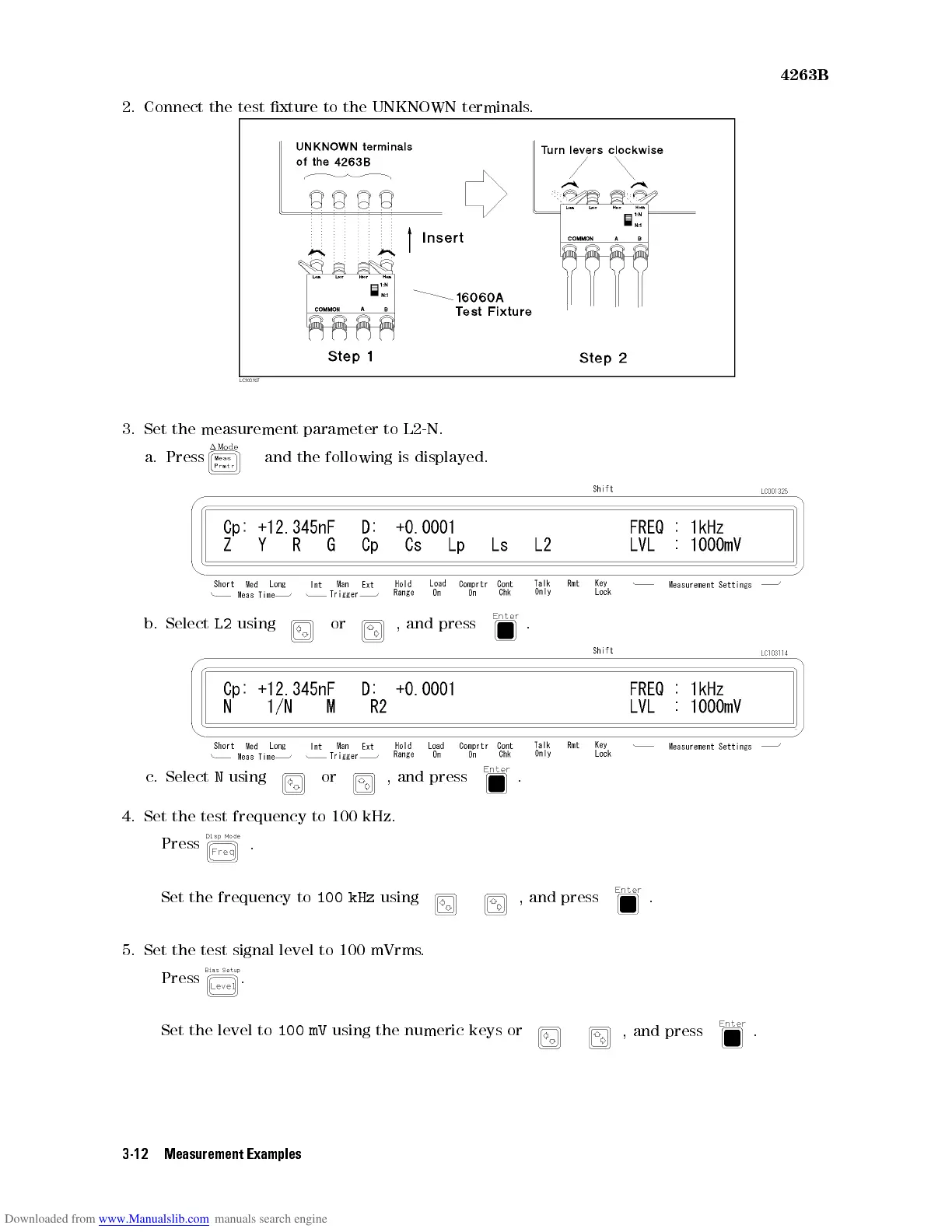

2.
Connect the
test xture
to the
UNKNOWN terminals
.
3.
Set
the
measurement parameter
to L2-N.
a.
Press
and
the
following
is
displayed.
b.
Select
L2
using
or ,
and
press
.
c.
Select
N
using
or ,
and
press
.
4.
Set the
test frequency
to 100
kHz.
Press
.
Set the frequency to
100 kHz
using
, and press .
5. Set the test signal level to 100 mVrms
.
Press .
Set the level to 100 mV using the numeric keys or
, and press .
