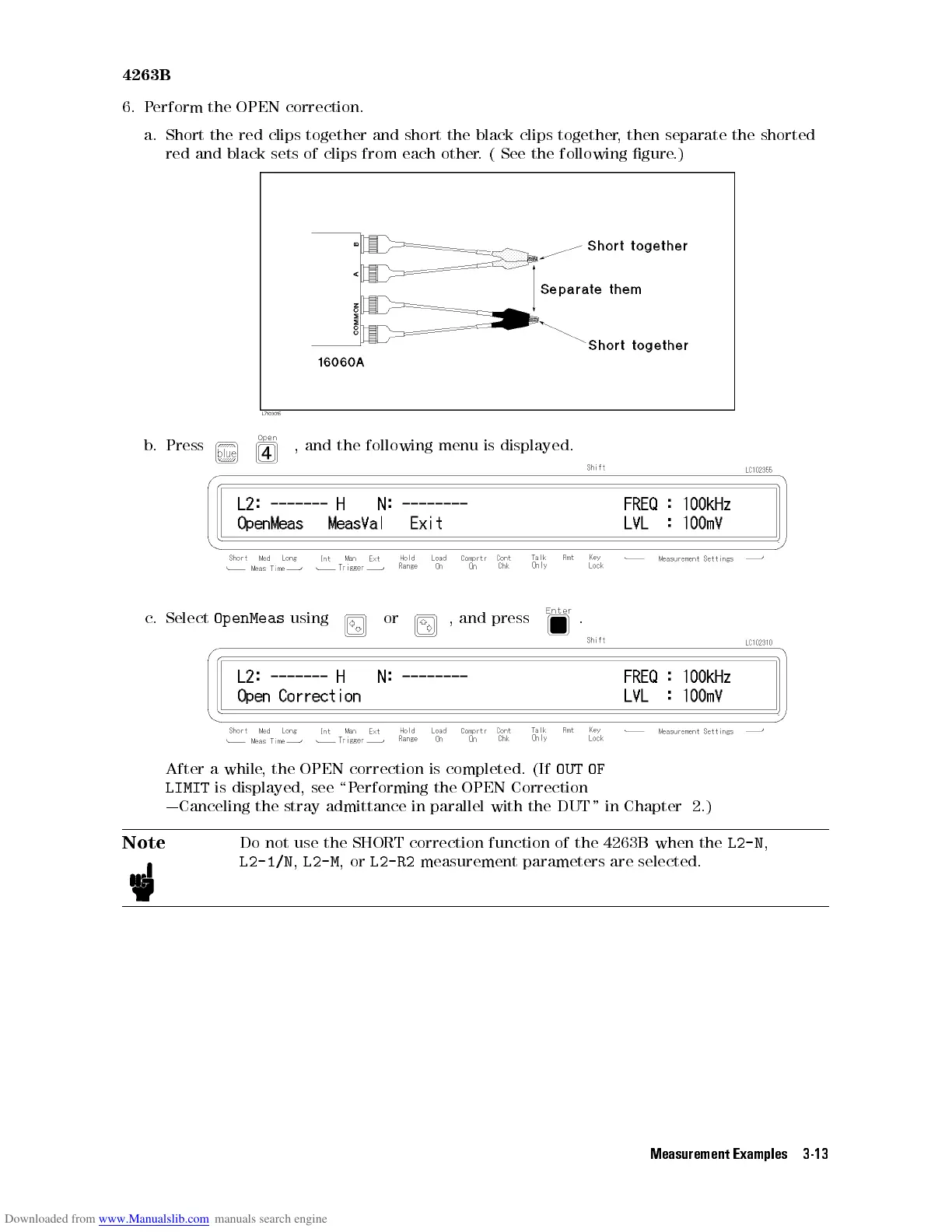

4263B
6.
Perform
the OPEN
correction.
a.
Short the
red clips
together and
short
the
black
clips
together
,
then
separate
the
shorted
red
and black
sets of
clips from
each
other
.
(
See
the
following
gure
.)
b.
Press
,
and
the
following
menu
is displayed.
c.
Select
OpenMeas
using
or ,
and
press
.
After
a
while
,
the
OPEN
correction is
completed. (If
OUT OF
LIMIT
is
displayed,
see
\P
erforming
the OPEN
Correction
|Canceling
the
stray
admittance
in
parallel
with the
DUT "
in Chapter
2.)
Note
Do not
use
the
SHORT
correction
function
of
the
4263B
when
the
L2-N
,
L2-1/N , L2-M ,or L2-R2 measurement parameters are selected.
Measurement Examples 3-13
