4263B

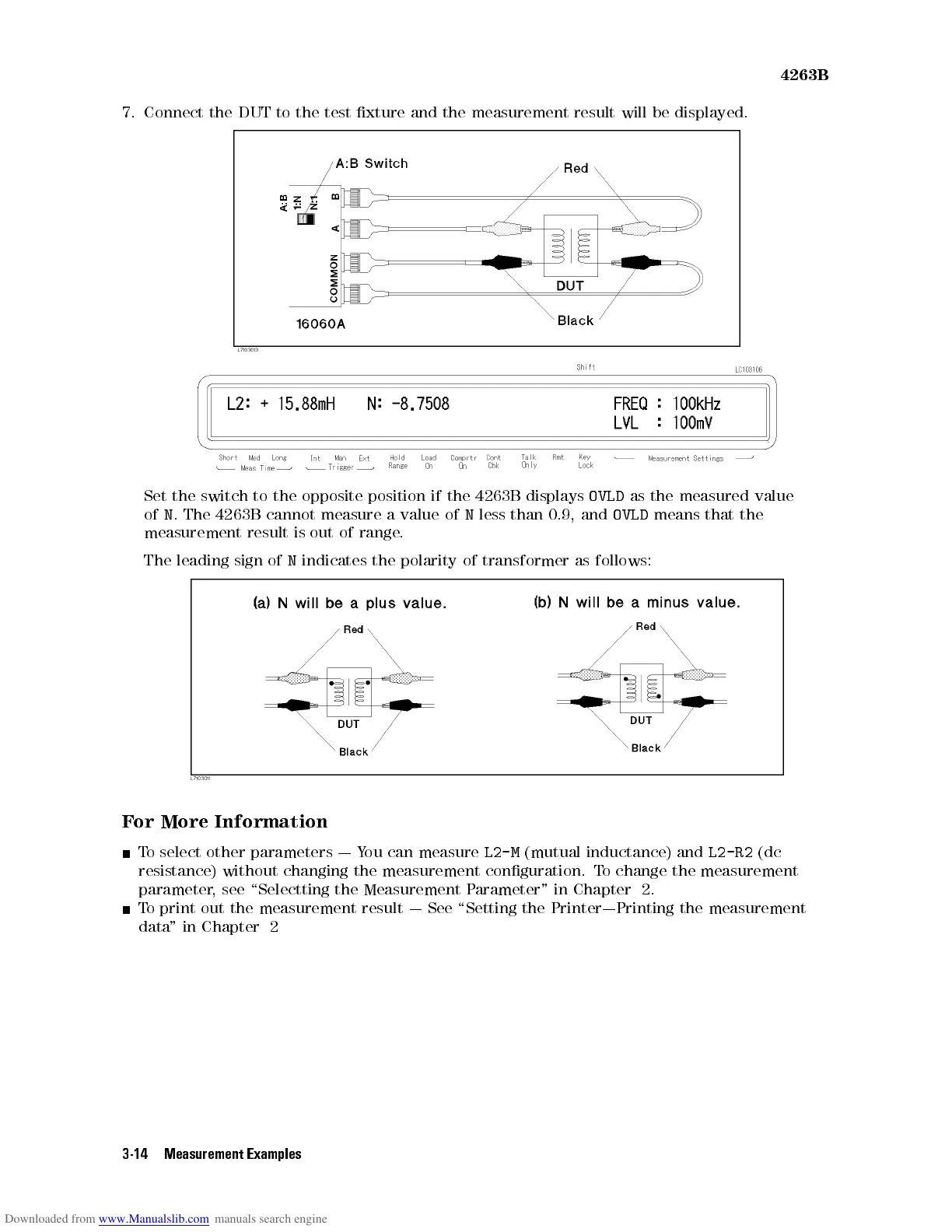

7.
Connect the
DUT to
the test
xture and
the measurement
result will
be
displayed.
Set the
switch
to
the
opposite
position
if
the
4263B
displays
OVLD
as
the
measured
value
of
N
.
The
4263B
cannot
measure
a
value
of
N
less
than
0.9,
and
OVLD
means
that
the
measurement
result
is
out
of
range
.
The
leading
sign
of
N
indicates
the
polarity
of
transformer
as
follows:
F
or
More
Information
To select other parameters | Y
ou can measure
L2-M (mutual inductance) and
L2-R2 (dc
resistance) without changing the measurement conguration. T
o change the measurement
parameter
, see \Selectting the Measurement P
arameter" in Chapter 2.
To
print out the measurement result | See \Setting the Printer|Printing the measurement
data" in Chapter 2
3-14 Measurement Examples
