Agilent Technologies 4395A Service Manual

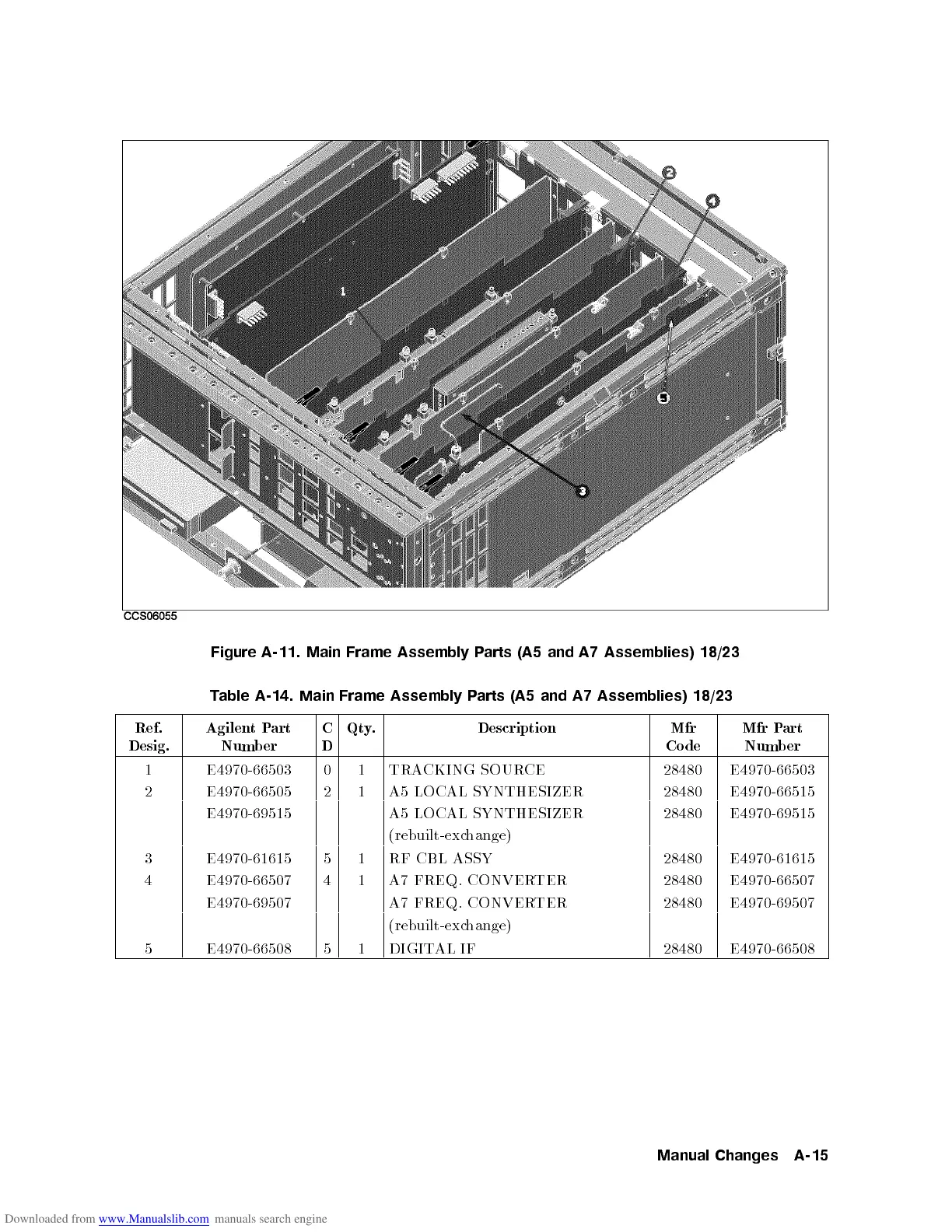

Figure
A-11.
Main Frame
Assembly
P
arts
(A5
and
A7
Assemblies)
18/23
T
able
A-14.
Main
Frame
Assembly
P
arts
(A5
and
A7
Assemblies)
18/23
Ref.
Desig.
Agilen
t
P
art
Num
b
er
C
D
Qt
y
.
Description Mfr
Co
de
Mfr
P
art
Num
b
er
1 E4970-66503 0 1 TRA
CKING SOUR
CE
28480 E4970-66503
2 E4970-66505 2 1 A5
LOCAL
SYNTHESIZER
28480 E4970-66515
E4970-69515 A5
LOCAL
SYNTHESIZER
28480 E4970-69515
(rebuilt-exc
hange)
3 E4970-61615 5 1 RF CBL ASSY 28480 E4970-61615
4 E4970-66507 4 1 A7
FREQ. CONVER
TER
28480 E4970-66507
E4970-69507 A7 FREQ. CONVER
TER
28480 E4970-69507
(rebuilt-exchange)
5 E4970-66508 5 1 DIGITAL IF 28480 E4970-66508
