Agilent Technologies 4395A Service Manual

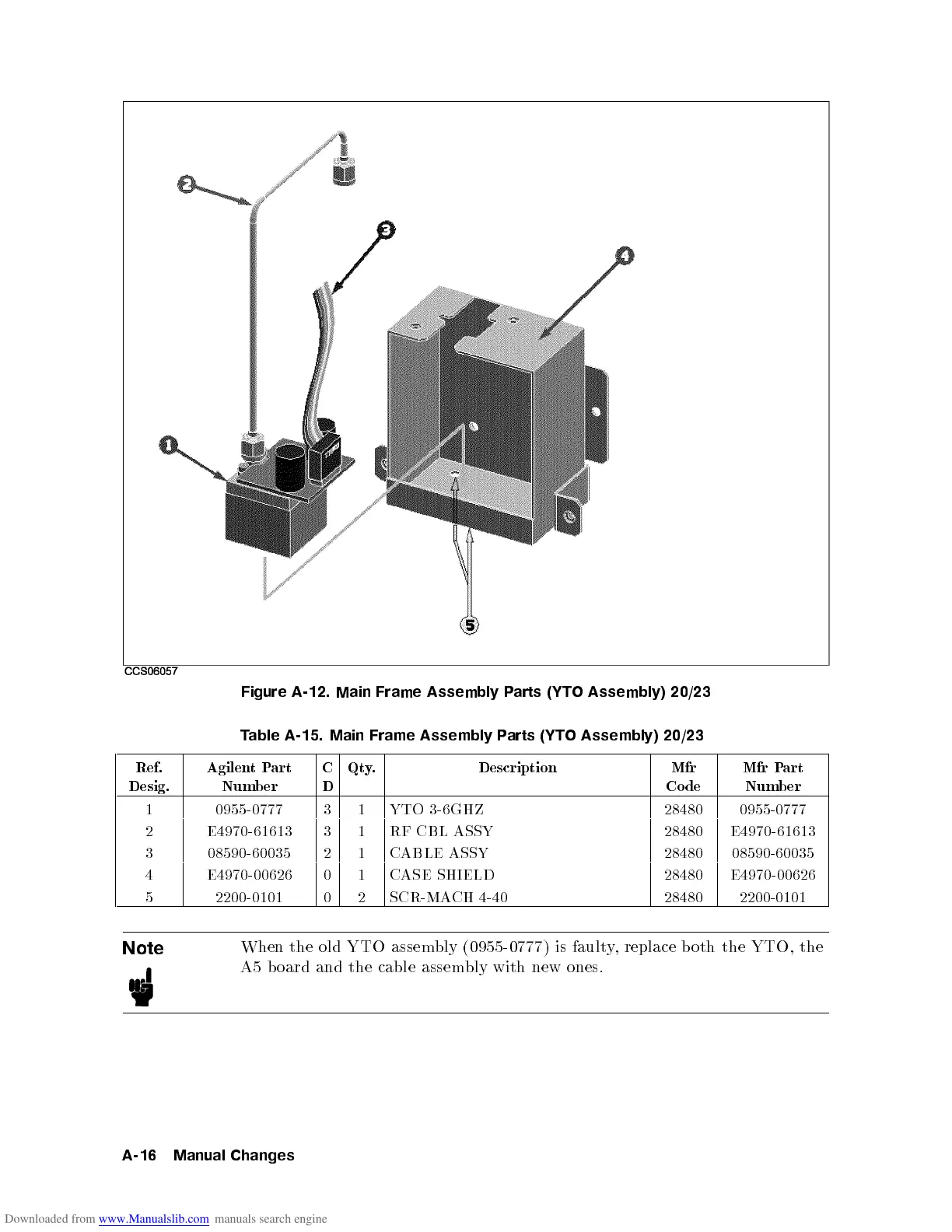

Figure
A-12.
Main
Frame
Assembly
P
arts
(YTO
Assembly) 20/23
T
able
A-15.
Main
Frame
Assembly
P
arts
(YTO
Assembly) 20/23
Ref.
Desig.
Agilen
t
P
art
Num
b
er
C
D
Qt
y
.
Description Mfr
Co
de
Mfr
P
art
Num
b
er
1 0955-0777 3 1 YTO
3-6GHZ
28480 0955-0777
2 E4970-61613 3 1 RF
CBL
ASSY
28480 E4970-61613
3 08590-60035 2 1 CABLE ASSY 28480 08590-60035
4 E4970-00626 0 1 CASE
SHIELD
28480 E4970-00626
5 2200-0101 0 2 SCR-MACH 4-40 28480 2200-0101
Note
When the old YTO assem
bly (0955-0777) is faulty
, replace both the YTO, the
A5 board and the cable assem
bly with new ones.
