Agilent Technologies 54810A User Manual

Setting Up the Oscilloscope
To attach the optional trackball
1-15
4 Snap the trackball assembly onto the pins of the baseplate. The
trackball and buttons should face up and toward the front of the
oscilloscope.

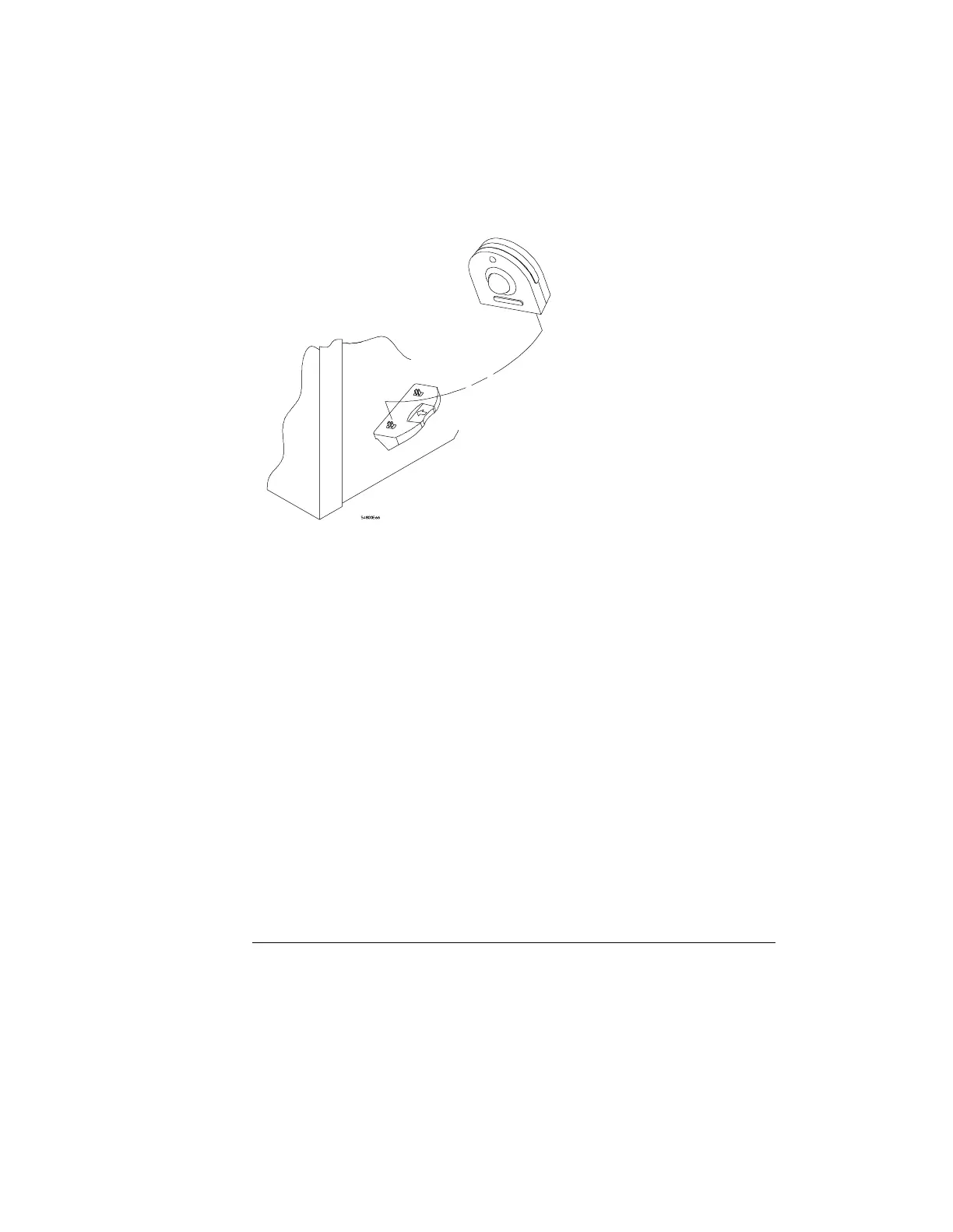

Figure 1-8
Snap the Trackball Assembly Onto the Baseplate
