Operating in EI Mode 4
5977B Series MSD Operating Manual 95
To Set Monitors for MSD Temperature and Vacuum Status
A monitor displays the current value of a single instrument parameter. They
can be added to the standard instrument control window. Monitors can be set
to change color if the actual parameter varies beyond a user-determined limit
from its setpoint.
Procedure
1 In Instrument Control view, select Edit Monitors from the Instrument menu to
display the Select Monitors dialog. (See Figure 26.)
2 In the Available Monitors column, select a monitor, and click Add to move the
selection to the Selected Monitors column. Repeat for additional monitors.
3 Click OK. The new monitors will be stacked on top of each other in the lower
right corner of the Instrument Control window.

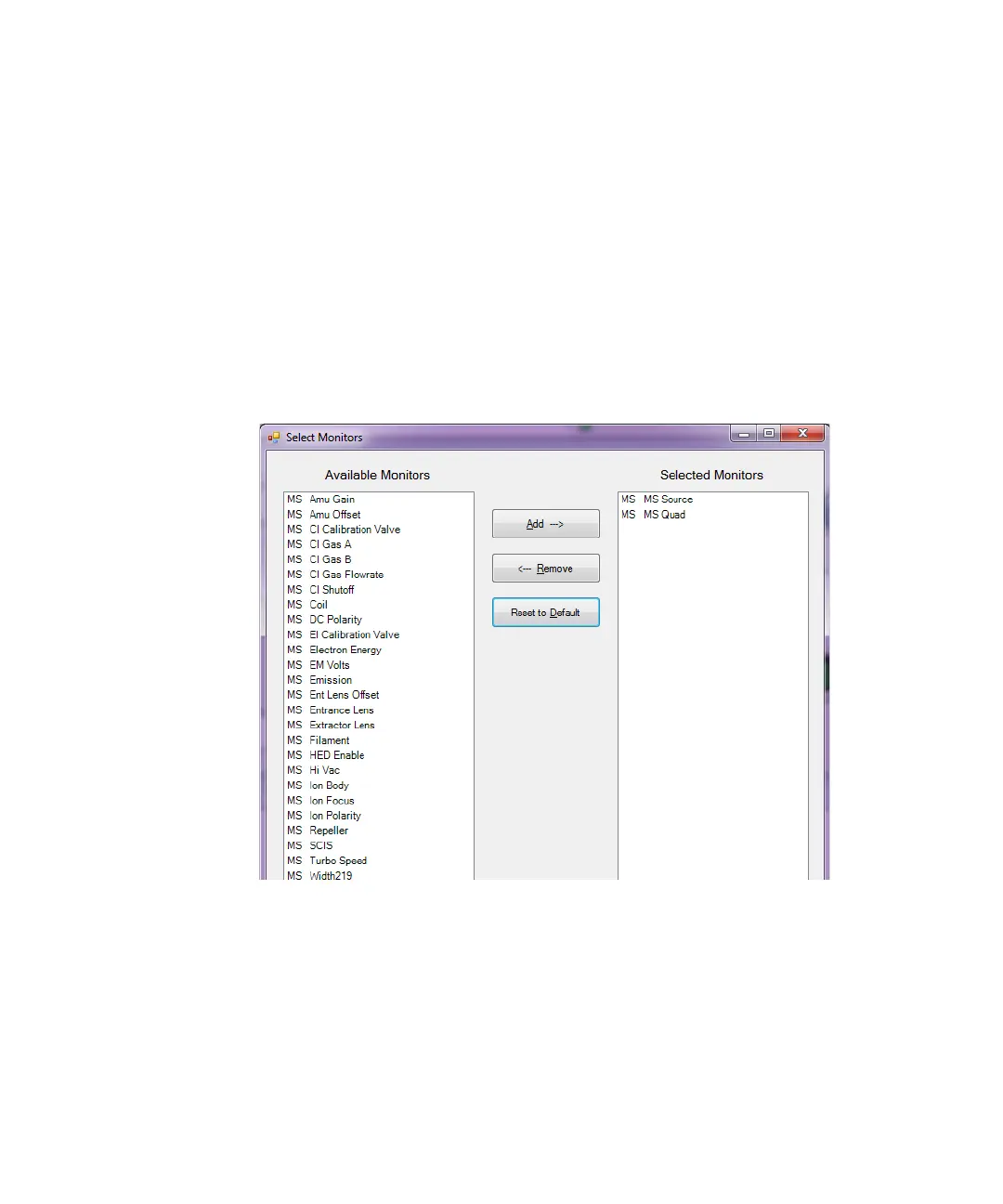

Figure 26 Select monitors dialog
