Hardware components and axes of motion
4 Bravo Platform Quick Guide
Hardware components and axes of motion
Primary hardware components
The following figure and table describe the primary hardware components.

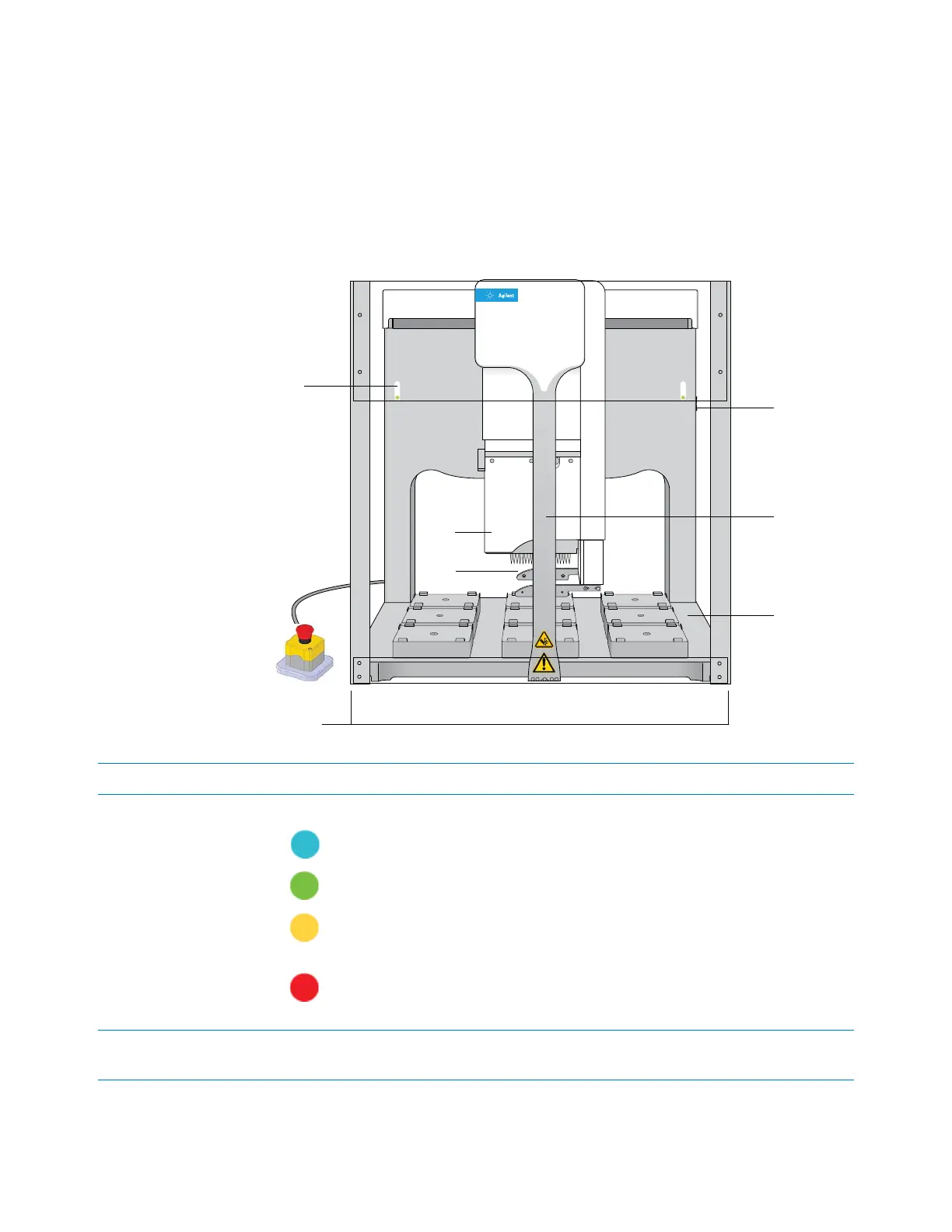

Figure
Bravo Platform components (front view)
Bravo
2
6
7
3
1
4
5
8
Item Feature Description
1 Indicator
lights
The two light panels that display color-coded status of the Bravo Platform:
• (solid blue). The Bravo Platform is turned on and in standby mode.
• (flashing green). The software is running a protocol on the Bravo Platform.
• (flashing orange). The software has initialized the Bravo Platform and Bravo
Diagnostics is open.
• (flashing red). The software has encountered an error while running a protocol
or the interlock circuit is tripped.
2 Power
switch
The switch on the right side of the rear wall that turns on (I) and off (O) the Bravo
Platform.
To Next Page
