Chapter 4 Remote Interface Reference
Halting an Output in Progress
106

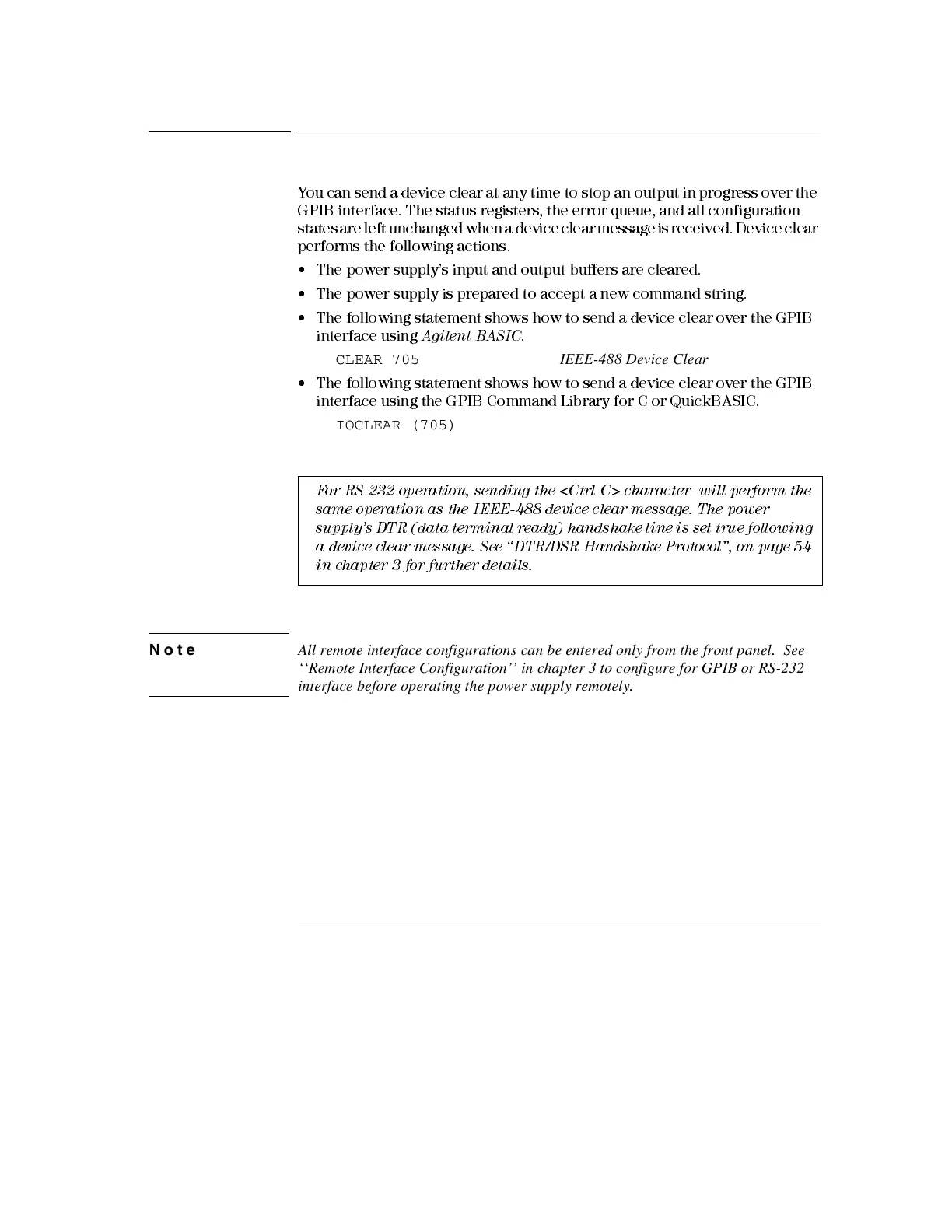

Halting an Output in Progress
You can send a device clear at any time to stop an output in progress over the GPIB
interface. The status registers, the error queue, and all configuration states are left
unchanged when a device clear message is received. Device clear performs the
following actions.
• The power supply’s input and output buffers are cleared.
• The power supply is prepared to accept a new command string.
• The following statement shows how to send a device clear over the GPIB interface
using Agilent BASIC.
CLEAR 705 IEEE-488 Device Clear
• The following statement shows how to send a device clear over the GPIB interface
using the GPIB Command Library for C or QuickBASIC.
IOCLEAR (705)
Note All remote interface configurations can be entered only from the front panel. See
‘‘Remote Interface Configuration’’ in chapter 3 to configure for GPIB or RS-232
interface before operating the power supply remotely.
For RS-232 operation, sending the <Ctrl-C> character will perform the same
operation as the IEEE-488 device clear message. The power supply’s DTR (data
terminal ready) handshake line is set true following a device clear message. See
‘‘DTR/DSR Handshake Protocol’’, on
page 54 in chapter 3 for further details.
