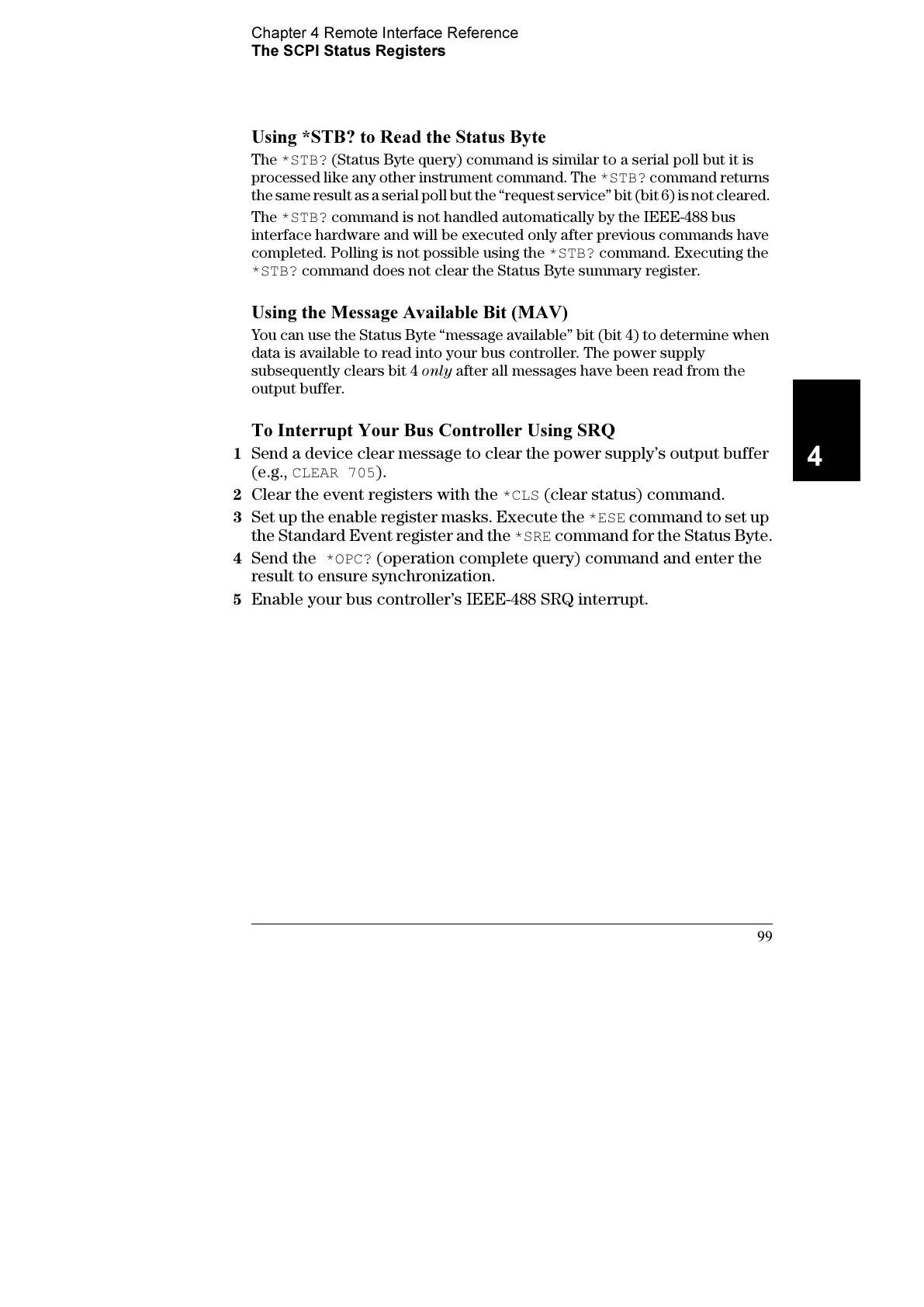

Chapter 4 Remote Interface Reference
The SCPI Status Registers
99
4
Using *STB? to Read the Status Byte
The
*STB?
(Status Byte query) command is similar to a serial poll but it is
processed like any other instrument command. The
*STB?
command returns
the same res ult as a seria l poll bu t the “request serv ice” bit (bit 6 ) is not c leared .
The
*STB?
command is not handled automatically by the IEEE-488 bus
interface hardware and will be executed only after previous commands have
completed. Polling is not possible using the
*STB?
command. Executing the
*STB?
command does not clear the Status Byte summary register.
Using the Message Available Bit (MAV)
You can use the Status Byte “message available” bit (bit 4) to determine when
data is available to read into your bus controller. The power supply
subsequently clears bit 4 only after all messages have been read from the
output buffer.
To Interrupt Your Bus Controller Using SRQ
1 Send a device clear message to clear the power supply’s output buffer
(e.g.,
CLEAR 705).
2 Clear the event registers with the *CLS (clear status) command.
3 Set up the enable register masks. Execute the *ESE command to set up
the Standard Event register and the
*SRE command for the Status Byte.
4 Send the *OPC? (operation complete query) command and enter the
result to ensure synchronization.
5 Enable your bus controller’s IEEE-488 SRQ interrupt.
