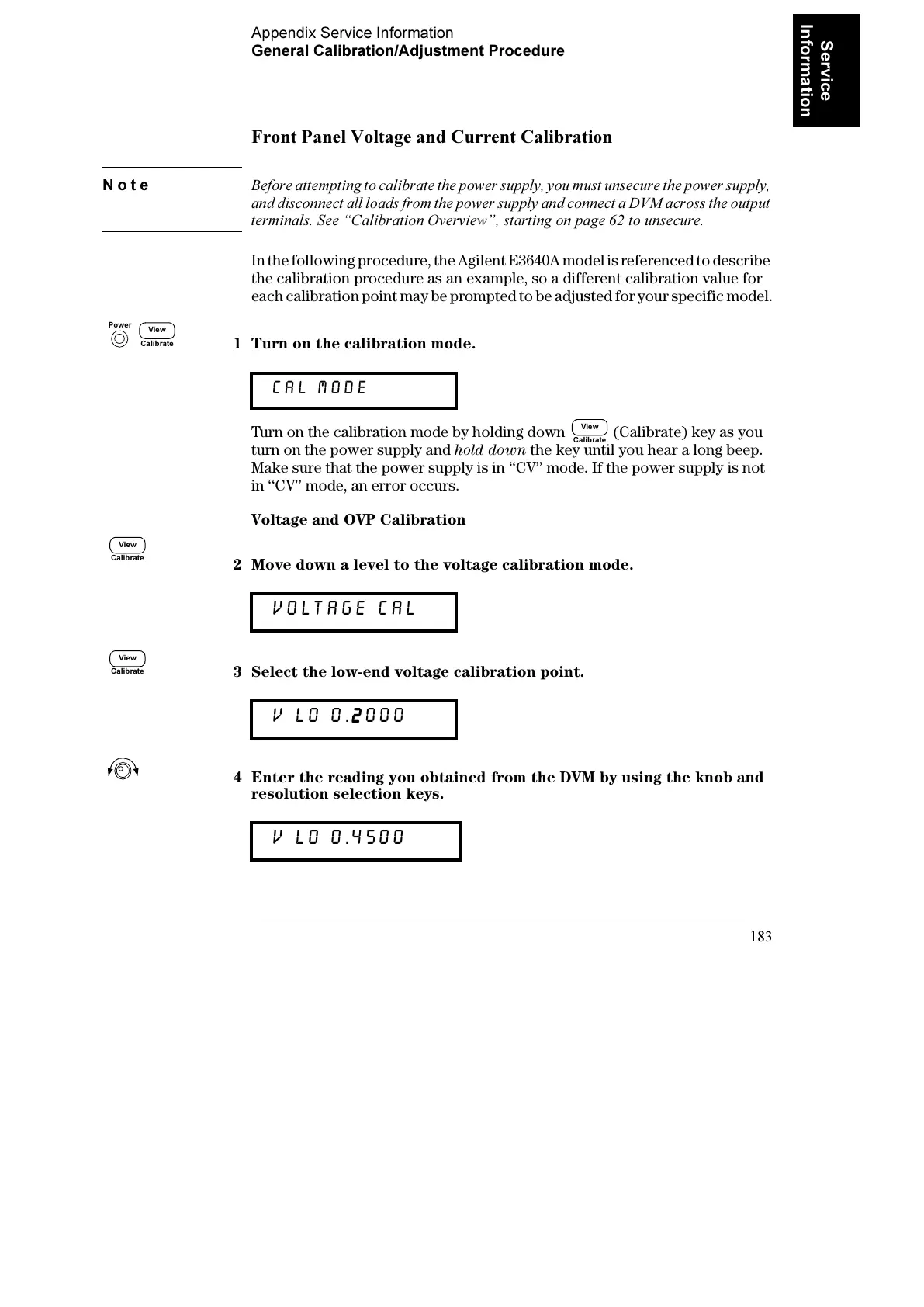

Front Panel Voltage and Current Calibration
Note Before attempting to calibrate the power supply, you must unsecure the power supply,
and disconnect all loads from the power supply and connect a DVM across the output
terminals. See “Calibration Overview”, starting on page 62 to unsecure.
In th e fol lowi ng pr ocedu re, the A gilent E36 4 0A mo d e l is re ferenc e d to de scribe
the calibration procedure as an example, so a different calibration value for
each calibration point may be prompted to be adjusted for your specific model.
1 Turn on the calibration mode.
Turn on the calibration mode by holding down (Calibrate) key as you
turn on the power supply and hold down the key until you hear a long beep.
Make sure that the power supply is in ‘‘CV’’ mode. If the power supply is not
in ‘‘CV’’ mode, an error occurs.
Voltage and OVP Calibration
2 Move down a level to the voltage calibration mode.
3 Select the low-end voltage calibration point.
4 Enter the reading you obtained from the DVM by using the knob and
resolution selection keys.
CAL MODE
voltage cal
V LO 0.2
22
2000
V LO 0.4500
Power
Calibrate
View
Calibrate
View
Calibrate
View
Calibrate
View
