58 Chapter 4
Viewing Catalogs and Saving Files
Saving a File

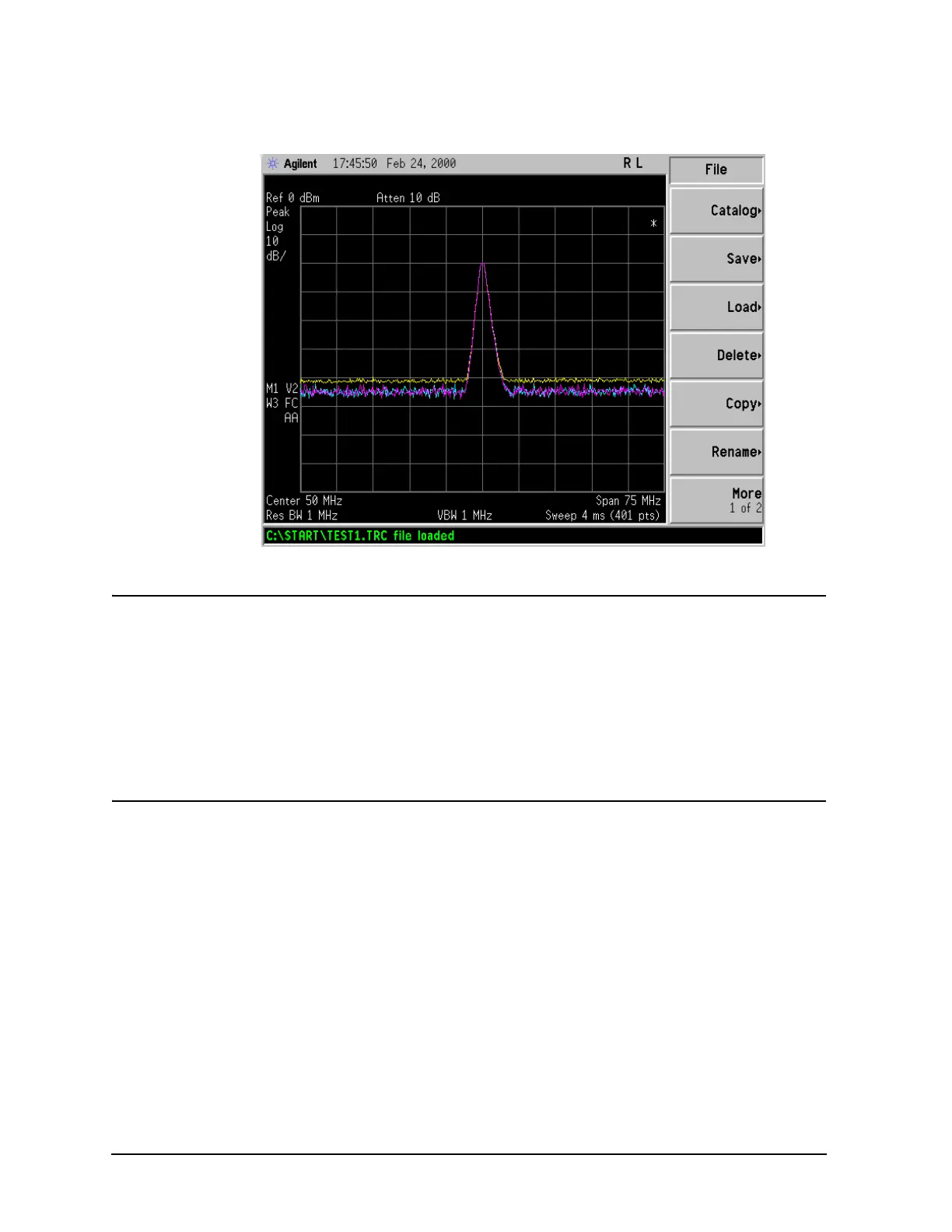

Figure 4-6. File Loaded
NOTE You should notice that the trace you saved, in this example trace 3, is loaded to trace 2. If
you wish to verify this condition, remove the signal input. For Agilent E7401A, press
Input/Output, Amptd Ref (Off), for all other models, press Input/Output, Amptd Ref
Out (Off)
.
Note that when a trace is loaded, it is placed in view mode. To see that trace 2 is in view
mode, blank traces 1 and 3 by pressing
View/Trace, Trace 1, Blank, Trace 3, Blank.
Then press Trace 2. Notice that trace 2 is the only trace displayed in view mode (the view
key is selected, and the trace is not sweeping). Your display should look similar to Figure
4-7.
