28 Chapter 2
Front and Rear Panel Features
Front Panel Overview
Display Annotation
Here is an example of the annotation that may appear on an analyzer display. The display annotation is
referenced by numbers which are listed in the following table. The Function Key column indicates which
key activates the function related to the annotation. Refer to
your User’s guide for more information on a specific function key.

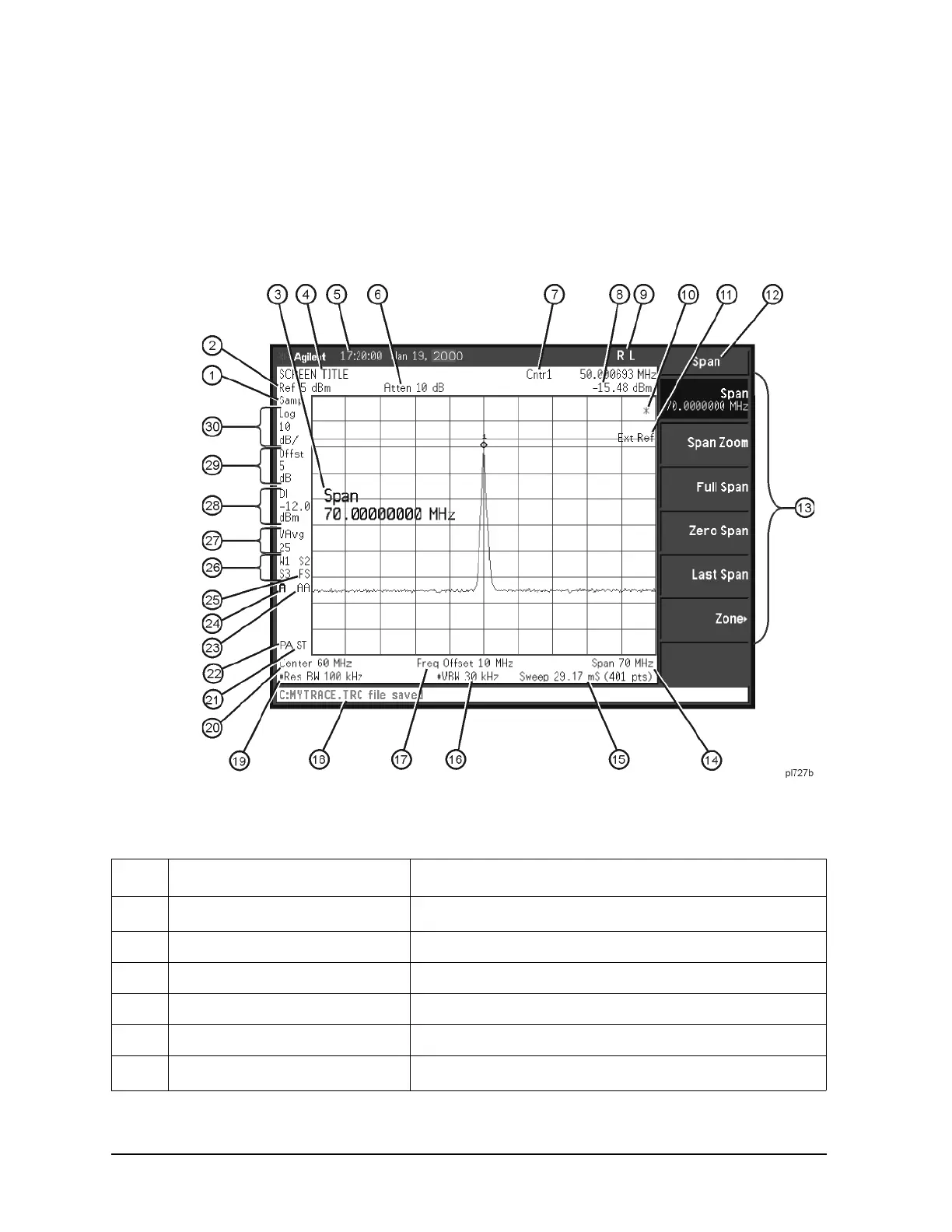

Figure 2-1. Screen Annotation
Table 2-1. Screen Annotation
Item Description Function Key
1
a
Detector mode Detector
2 Reference level Ref Level
3 Active function block Refer to the description of the activated function.
4 Screen title
Change Title
5 Time and date display Time/Date On Off
6
a
RF attenuation Attenuation Auto Man
