Chapter 4 59
Viewing Catalogs and Saving Files
Saving a File

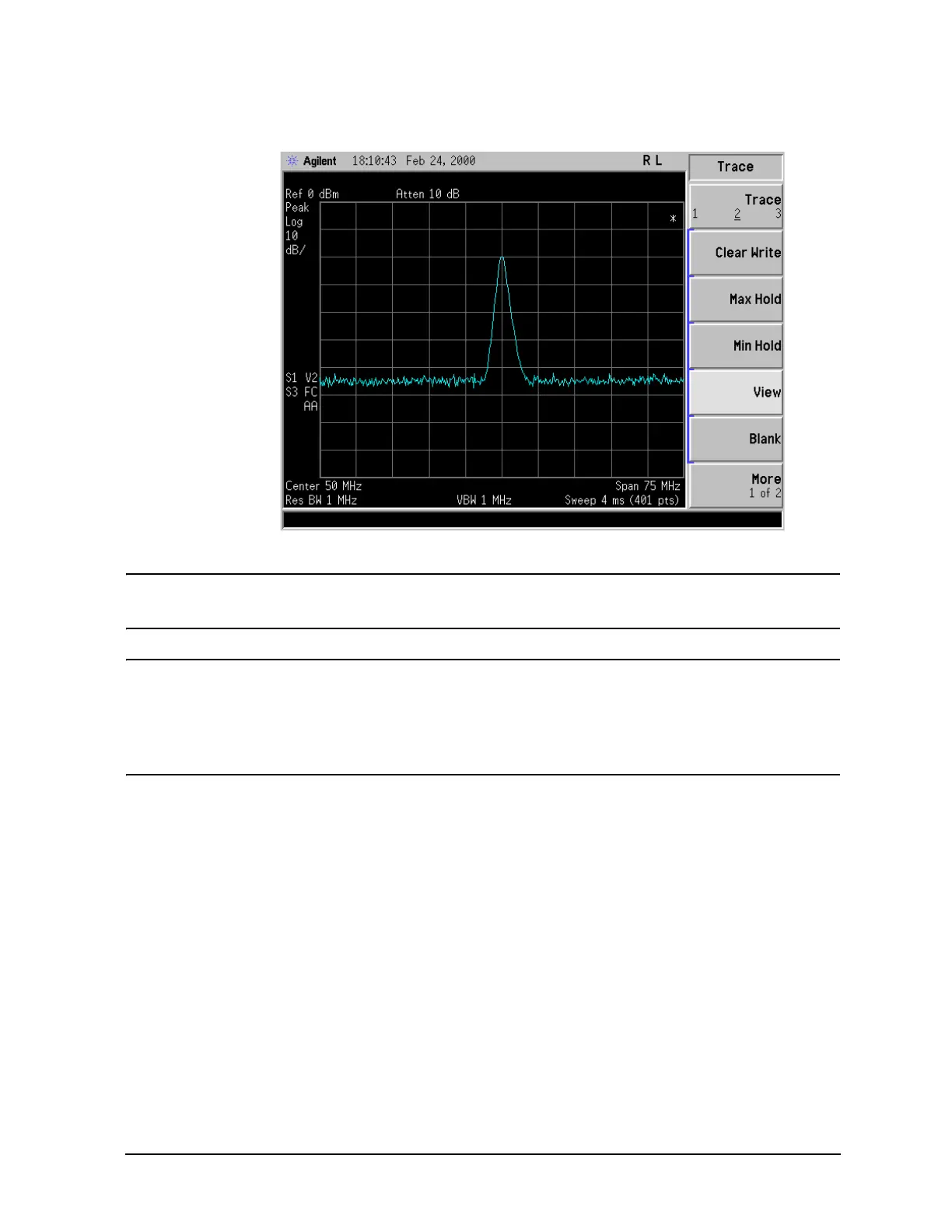

Figure 4-7. Verifying Trace 1
CAUTION When operating in dc coupled mode, ensure protection of the input mixer by limiting the
input level to 0 Vdc and +30 dBm.
NOTE When loading Limits files, be sure you have selected the appropriate X Axis Units:
frequency or time (
Display, Limits, Properties, X Axis Units). If you are in time X-Axis
Units, and you load frequency limits, all current limit line data will be erased and the
analyzer will switch to the frequency domain. The reverse of the this situation also holds
true.
Renaming a File
1. To access the Rename menu, press File, Rename.
2. Select the type of file you want to rename (setup, state, trace, limits, screens, or corrections). In this
example you are renaming a trace file; press
Type, Trace.
3. Select the drive and directory where your file is located. In this example, choose drive C:\START.
4. Select the file you want to rename. In this example, choose the file TEST1.TRC.
5. Press
Name to open the Alpha Editor menu. For this example, rename the file to RENAME using the
Alpha Editor softkeys. (The Name: field is limited to eight characters.) Your display should look
similar to Figure 4-8.
