Service Guide E8364-90026 3-29
PNA Series Microwave Network Analyzers Tests and Adjustments
E8362B, E8363B, E8364B System Verification
Figure 3-16 shows an example of typical verification results with Measurement Plots
selected in the Printer Output area of the System Verification windows. The printed
graphical results show the following:
• the name of the device measured
• the serial number of the device
• the parameters measured
• Results of the measurements. Labeled as A in Figure 3-16.
• Data measured at the factory from the verification kit. Labeled as B in Figure 3-16.
• Upper and lower limit points as defined by the total system uncertainty system.
Labeled as C in Figure 3-16.

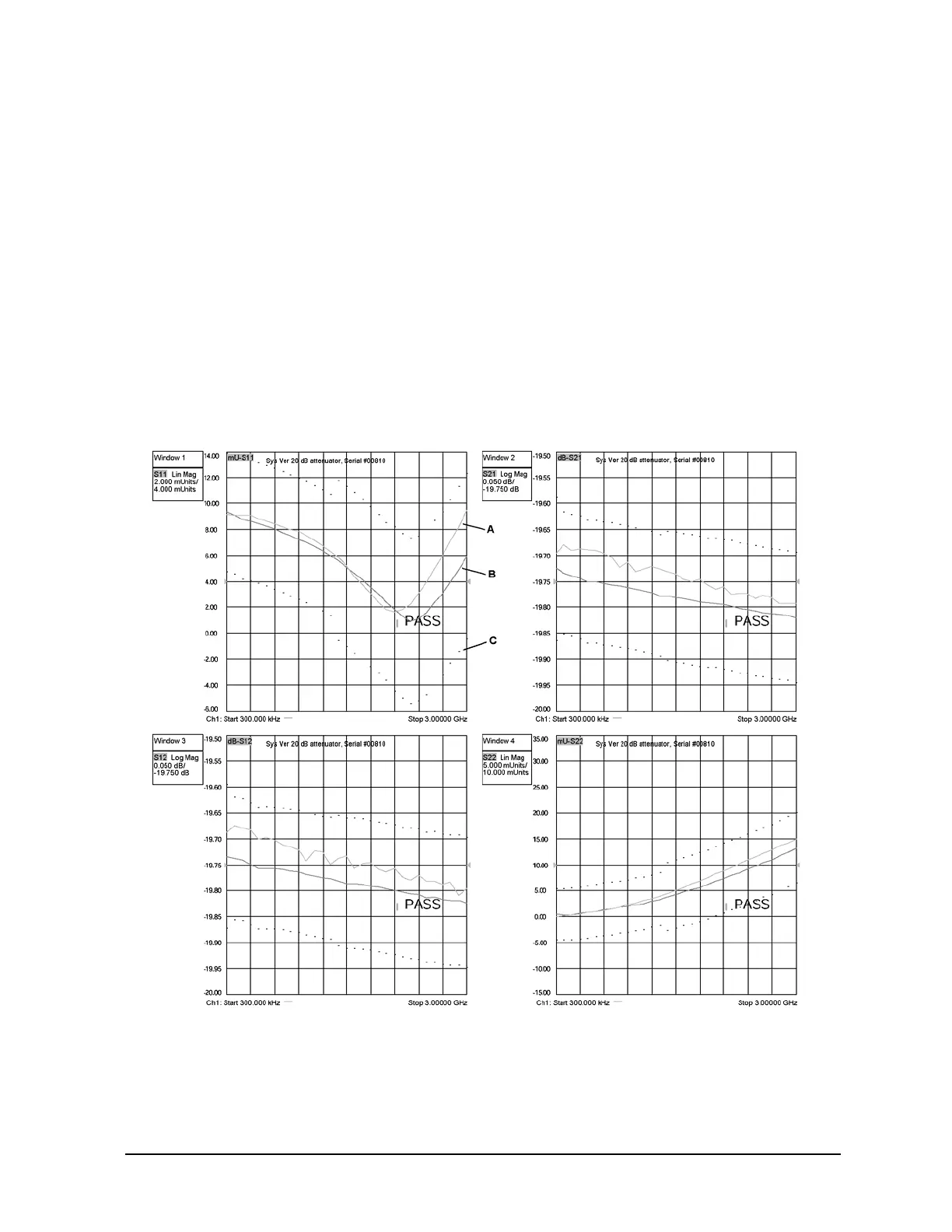

Figure 3-16 Example of Printed Graphical Verification Results
