Service Guide E8364-90026 3-47
PNA Series Microwave Network Analyzers Tests and Adjustments
E8362B, E8363B, E8364B Adjustments
Source Calibration Adjustment
The source calibration is used to adjust your network analyzer for a flat source power
across its full frequency range. The differences between Port 1 and Port 2 are negligible;
therefore, a Port 2 adjustment is not required.
Equipment Used for the Source Calibration Adjustment
Procedure
1. Connect the equipment as shown in Figure 3-21. Connect a GPIB cable between the
network analyzer and the power meter.

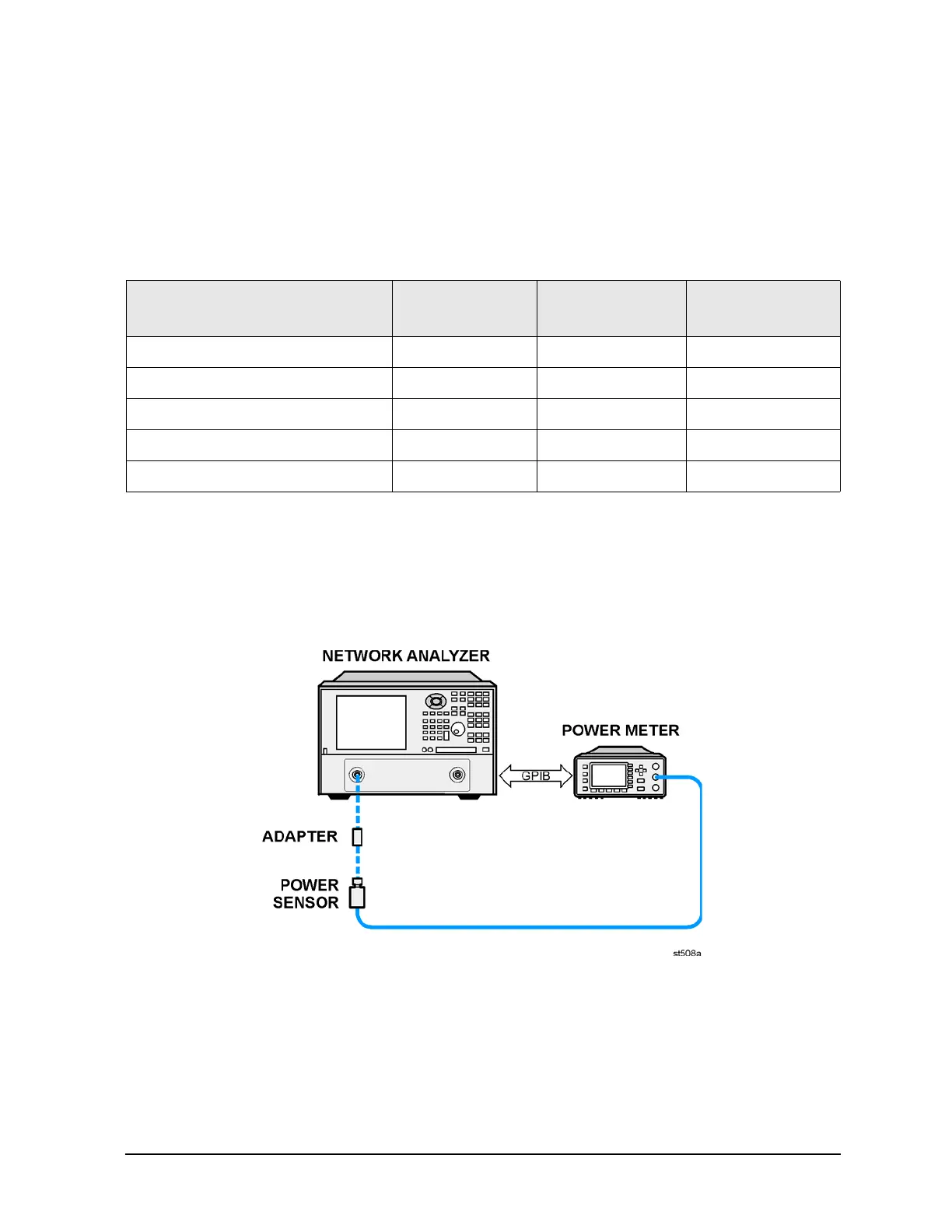

Figure 3-21 Setup for the Source Calibration Adjustment
2. On the System menu, point to Service, Adjustments, and then click
Source Calibration.
3. Ensure the GPIB settings are correct.
4. Click Calibrate, and then follow the instructions as they are displayed.
Equipment Type
Models
Used With
Model or
Part Number
Alternate Model
or Part Number
Power meter All E4418B/E4419B E4418A/E4419A
Power sensor, 3.5 mm E8362B E4413A 8485A
Adapter, 3.5 mm (f) to 3.5 mm (f) E8362B 83059B 85052-60012
Power sensor, 2.4 mm E8363B, E8364B 8487A None
Adapter, 2.4 mm (f) to 2.4 mm (f) E8363B, E8364B 11900B 85056-60007
